standing seam
T/T

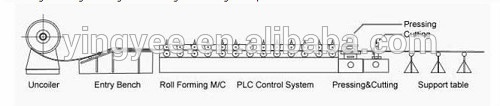

Working Flow:
Decoiling--Feeding--Guiding--Roll forming--Cut to length--Output table
We do Detail, Machine Parameters
1. Matching material: Galvanized or PPGI
2. Material thickness range: 0.2-1mm
3. Forming speed: 10-15M/MIN
4. Mine power: 4KW
5. Quantity of roller:14rows
6. Shaft Material and diameter: 70 mm, material is 40CR
7.Material Of the Body:400H steel. Wall Panel;20mm Q195 steel(all with electrostatic spraying)
8.Tolerance: 3m+-1.5mm
9. Controlling system: PLC
10. Total weight: about 3 Tons
11. Voltage: 380V/ 3phase/ 50 Hz
12.Size of the machine: L*W*H 7m*1.5m*1.5m
13.Material of forming rollers: Gcr 15, coated with chromed treatment,HRC58-62
14.Material of cutter blade: Cr 12 mould steel with quenched treatment,HRC 58-62.
15:Tempreture:60
