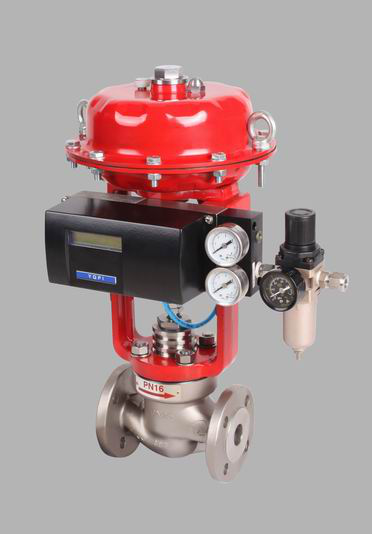

YSIQ(D) 20 series of intelligent pressure-balanced single-seat control valve uses modular design to achieve a compact structure. Valve plug with balance holes and imported sealing ring together made a special double sealing realized; and make it applicable for high differential pressure occasions in order to meet users’ requirements. Double side usable valve seat and body are connected by pressing method, which effectively improved the valve sealing level and stability; and made usage and maintenance very convenient which greatly improved the general performance of control valve.
Working principle:
The equipped smart positioner will convert to valve required settings when receive normal signal of electricity or signal of computer. Then the pneumatic actuator linear displacement will change to angular displacement by valve special connections, and tested by position transducer then feedback to microprocessor.
The microprocessor will compare the actual valve feedback with original settings and tested if there is any deviation. It will output pulse width modulation command(PWM) to piezoelectric valve according to the size and direction of deviation. The piezoelectric valve will regulate the input or exhaust gas under the control command.
Control Mode
Control mode apply PWM (Puise Width Modulation) to drive:
Full speed: when control deviation is big, positioner output link signal.
Mid-speed: when control deviation is normal, output impulse signal.
Slow speed: when control deviation is small, output smaller impulse signal.
Keep orientation: when control deviation is smaller than valve control precision range,no output command signal.
Main Parts Materials Table 1
Item | Part Name | Material | ||||
1 | Body | WCB | WC6 | CF8 | CF8M | |
2 | Seat | 304、316/Partial Stellite | 316/Partial Stellite | |||
3 | Plug | Metal Sealing | 304、316/Partial Stellite | 316/Partial Stellite | ||
Soft Sealing | 304、316+Reinforced Teflon | 316+Reinforced Teflon | ||||
4 | Cage | 304、316 | 316 | |||
5 | Guide Sleeve | 304、316 | 316 | |||
6 | Stem | 304、316 | 316 | |||
7 | Bonnet | WCB | WC6 | CF8 | CF8M | |
*Above is the common materials, the specific grades take the contract as a standard.
Specification &Technical Parameter Table 2
Type | Pressure Balanced Single-Seat |
Nominal Diameter | DN40～DN400(1-1/2”～16”) |
Nominal Pressure | PN16,25,40,64,100(150lb,300lb,600lb) |
Flow Characteristic | Equal Percentage, Linear, Quick Open(For Shut-Off Valve） |
Rangeability | 50:1 |
Bonnet Form | Standard Type：Cast Steel ：-20～250℃ Stainless Steel：-40～250℃ |
Low-Temp. Type：Cast Stainless Steel：-60～-100℃,-100～-200℃,-200～-250℃ | |
Seat Leakage | ANSI Ⅳ,V,Ⅵ(Soft Sealing) |
Main Performance Index Table 3
No. | Item | Standard Type | Fin-Extension Type, Low-Temp. Type |
1 | Basic Error＜(%) | ±1 | ±2.5 |
2 | Hysteresis＜(%) | 1 | 2.5 |
3 | Dead Band＜(%) | 0.4 | 1 |
4 | Start &End Deviation＜(%) | ±1 | ±2.5 |
5 | Rated Travel Deviation＜(%) | +2.5 | +2.5 |
Note: Performance index of this production is higher than GB/T4213-2008.
