General

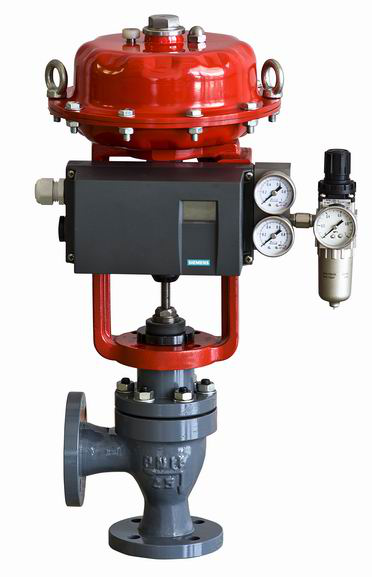

YSIQ(D)60 series of intelligent angle control valve uses modular design to achieve a compact structure. The varieties of combination of components make it applicable in any circumstances which contain high pressure difference, high-viscosity-like or granular-like fluid, as well as situations where there is serious flashing and cavitations or piping is required to be direction changeable.
Working principle:
The equipped smart positioner will convert to valve required settings when receive normal signal of electricity or signal of computer. Then the pneumatic actuator linear displacement will change to angular displacement by valve special connections, and tested by position transducer then feedback to microprocessor.
The microprocessor will compare the actual valve feedback with original settings and tested if there is any deviation. It will output pulse width modulation command(PWM) to piezoelectric valve according to the the size and direction of deviation. The piezoelectric valve will regulate the input or exhaust gas under the control command.
Control Mode
Control mode apply PWM (Puise Width Modulation) to drive:
Full speed: when control deviation is big, positioner output link signal.
Mid-speed: when control deviation is normal, output impulse signal.
Slow speed: when control deviation is small, output smaller impulse signal.
Keep orientation: when control deviation is smaller than valve control precision range, no output command signal.
Main Parts Materials Table 1
Item | Part Name | Material | ||||
1 | Body | WCB | WC6 | CF8 | CF8M | |
2 | Seat | 304、316/Partial Stellite | 316/Partial Stellite | |||
3 | Plug | Metal Sealing | 304、316/Partial Stellite | 316/Partial Stellite | ||
Soft Sealing | 304、316+Reinforced Teflon | 316+Reinforced Teflon | ||||
4 | Cage | 304、316 | 316 | |||
5 | Guide Sleeve | 304、316 | 316 | |||
6 | Stem | 304、316 | 316 | |||
7 | Bonnet | WCB | WC6 | CF8 | CF8M | |
*Above is the common materials,the specific grades take the contract as a standard.
Specification&Technical Parameter Table 2
Type | Top Guide Single Seat Angle |
Nominal Diameter | DN20～DN400(3/4”～16”) |
Nominal Pressure | PN16,25,40,64,100(150lb,300lb,600lb) |
Flow Characteristic | Equal Percentage, Linear |
Rangeability | 50﹕1 |
Bonnet Form | Standard Type：Cast Steel ：-20～250℃ Stainless Steel：-40～250℃ |
Fin-Extension Type：Cast Steel：-29～425℃ Stainless Steel：-40～450℃ | |
Low-Temp. Type：Cast Stainless Steel：-60～-100℃,-100～-200℃,-200～-250℃ | |
Seat Leakage | ANSI Ⅳ,V,Ⅵ(Soft Sealing) |
Main Performance Index Table 3
No. | Item | Standard Type | Fin-Extension Type, Low-Temp. Type |
1 | Basic Error＜(%) | ±1 | ±2.5 |
2 | Hysteresis＜(%) | 1 | 2.5 |
3 | Dead Band＜(%) | 0.4 | 1 |
4 | Start &End Deviation＜(%) | ±1 | ±2.5 |
5 | Rated Travel Deviation＜(%) | +2.5 | +2.5 |
Note: Performance index of this production is higher than GB/T4213-2008.
Flow Characteristic Table 4
Seat Diameter DN(mm) | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
Rated Kv | Linear | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 690 | 990 | 1430 | 1980 | 2750 |
EQ% | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 900 | 1300 | 1800 | 2500 | |
Small Flow Valve Table 5
Seat Diameter DN(mm) | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 20 | 25 | ||||
Rated Kv | Linear | 0.02 | 0.05 | 0.08 | 0.12 | 0.2 | 0.32 | 0.5 | 0.8 | 1.6 | 2.5 | 4 | 6.9 | 11 |
EQ% | - | - | - | - | - | - | - | - | 1.2 | 2.0 | 3.2 | 6.3 | 10 | |
