YSIQ(D)10F Series of Intelligent Lined Fluorine Single-seat Control Valve
Valve body, plug, seat and stem are lined with 3mm thick FEP, so it can resistant to all chemicals corrosion(including sulfuric acid, alkali and aqua regia). It uses PTFE bellow and packing as double sealing, once the bellow damaged, the packing can be the second protection sealing. with advantages of impact structure, small volume, light weight, good corrosion resistance, good sealing performance, accurate flow characteristics, convenient maintenance, etc.. Especially suitable to small leakage, small pressure difference site conditions
Product range:PN（MPa）1.0、1.6（150lb）；DN（mm）15～200（1/2”～8”）；suitable temp. -30～+200℃；Leakage rate Ⅳ、Ⅴ、Ⅵ；Flow characteristics: Linear and EQ.%.

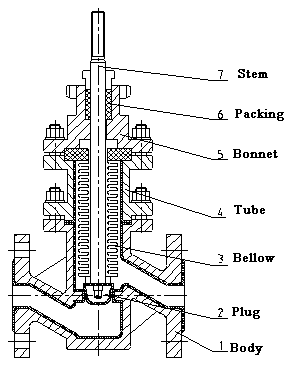

Structure Drawing
Main Parts Materials Table 1
No. | Part Name | Materials |
1 | Body | WCB lined F46、CF8 lined F46 |
2 | Plug | WCB lined F46、CF8 lined F46 |
3 | Bellow | PTFE |
4 | Tube | WCB lined F46、CF8 lined F46 |
5 | Stem | 304 |
6 | Bonnet | WCB、CF8 |
7 | Packing | PTFE |
Specification &Technical Parameter
Table 2
Type | Top Guide Single-seat |
DN | DN15～DN200（1/2”～8”） |
PN | PN10、16（150lb） |
Flow Characteristic | EQ.%、Linear |
Rangeability | 30﹕1 |
Temp. | -30~200℃ |
Bonnet type | Bellow Sealing |
Seat leakage | Ⅳ、V、Ⅵ |
Main Performance Index
Main Performance Index
Table 3
No. | Name | 智能型衬氟塑单座调节阀 |
1 | Basic Error＜(%) | ≤±5 |
2 | Hysteresis＜(%) | ≤5 |
3 | Dead Band＜(%) | ≤5 |
4 | Start &End Deviation＜(%) | ±2.5 |
5 | Rated Travel Deviation＜(%) | +4 |
Note: Performance index of this production is higher than GB/T4213-2008.
Flow Characteristic
Table 4
Seat Diameter (mm) | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
Rated Kv | Linear | 13.2 | 22 | 35.2 | 55 | 77 | 110 | 176 | 264 | 440 |
EQ.% | 12 | 20 | 32 | 50 | 70 | 100 | 160 | 240 | 400 | |
Rated Travel mm | 16 | 25 | 30 | 60 | ||||||
Small Flow Valve
Table 5
Seat Diameter (mm) | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 20 | 25 | ||||
Rated Kv | Linear | 0.02 | 0.05 | 0.08 | 0.12 | 0.2 | 0.32 | 0.5 | 0.8 | 1.6 | 2.5 | 4 | 6.9 | 11 |
EQ% | - | - | - | - | - | - | - | - | 1.2 | 2.0 | 3.2 | 6.3 | 10 | |
