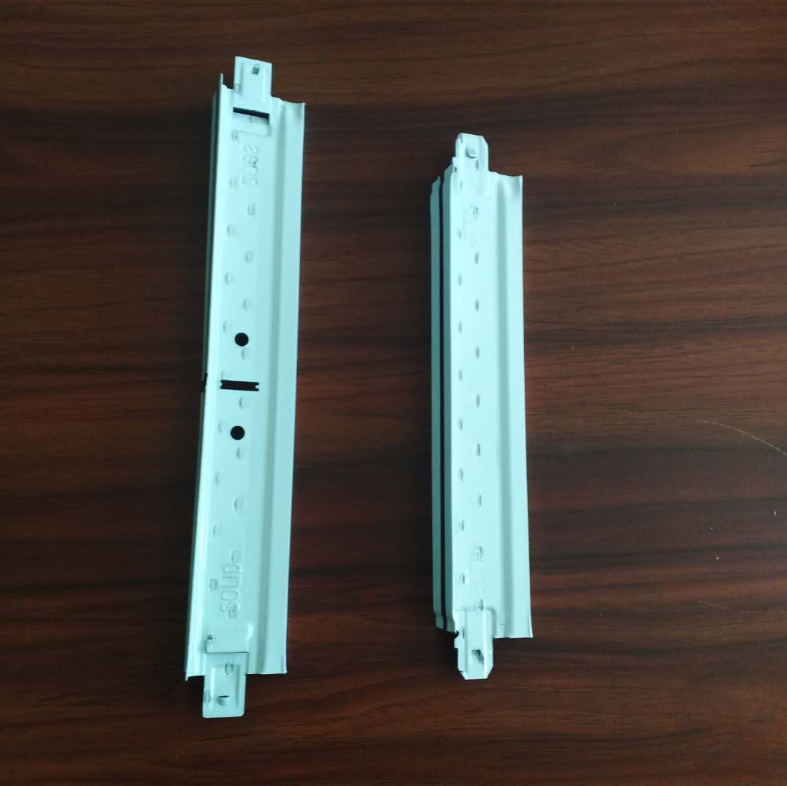

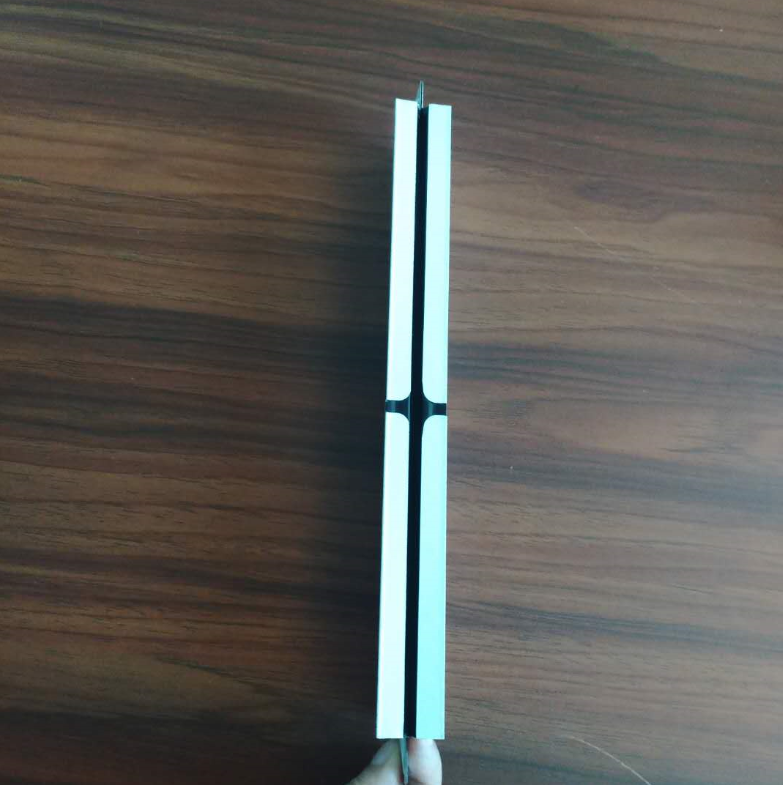

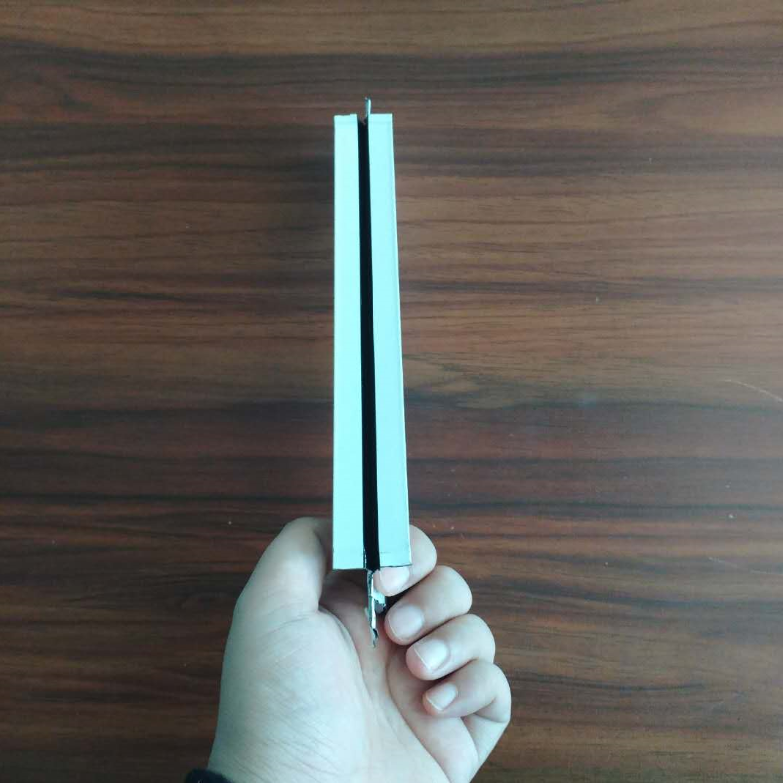

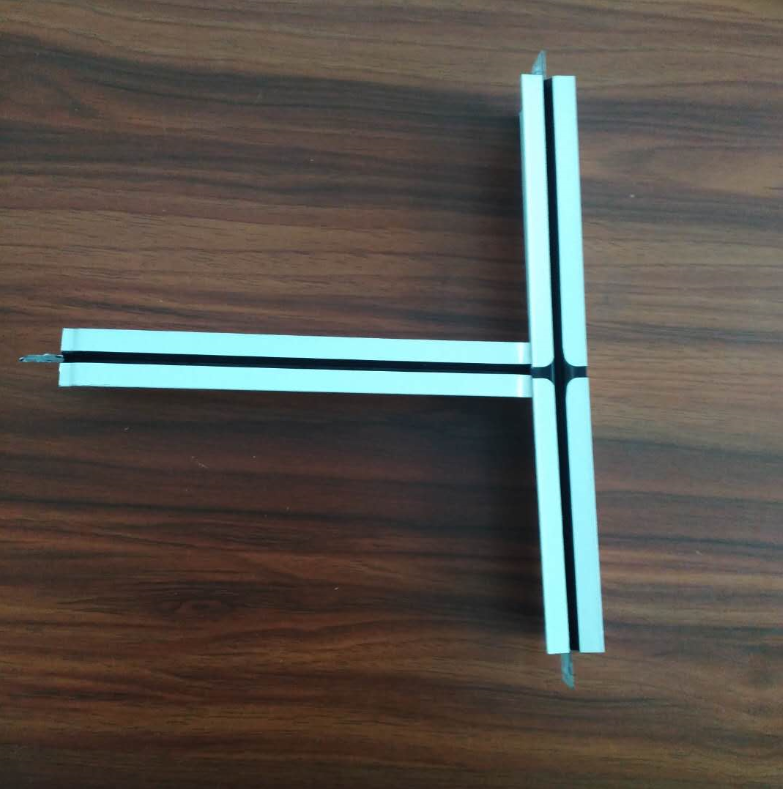

FUT ceiling production lineFUT keel FUT light keel FUT production line
L/CT/T
5KEDC24V solenoid valve (Huade brand) and supporting motorFUT production line
 |  |  |  |

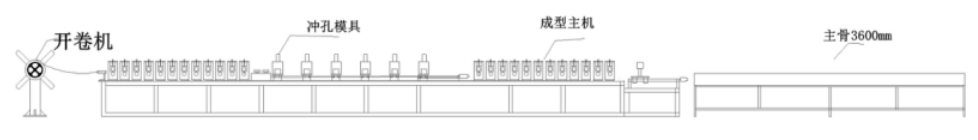

Technical process：
Machine including ：
3 tons manual decoiler
Main forming part(with 6 pairs punching moulds)
Hydraulic stop cutting
Punching machine(One pair punching mould for side holes)
Hydraulic station
PLC control System
Machine parameter：
| Name | Description |
| 3 tons manual de-coiler | Capcity：3 tons Manual |
| Roll forming machine | |
Hydraulic Stop Cutting | Material：Cr12 |
| Punching machine | Punching mould: 1 set mould for side holes |
| Collection table | 3600mm,welded40*60 steel square tubes |
| hydraulic station | 5KEDC24V solenoid valve (Huade brand) and supporting motor |
| PLC brand | Xinjie brand |
Machine body plate: Thickness 23mm
Rollers: 22 steps/Cr12 with heat treatment HRC58-65 Symmetry in the range of 0.05mm
Shaft:45# steel with heat treatment/Φ40
Chain Driven
Torrrist stand structure with plate 35mm,CNC equipment control accuracy within 0.1 mm
Punching mould:5 sets. Material:SKD11 with heat treatment
Main power: 7.5kw.
Speed:30m/min
