Description
Two waves guardrail roll forming machine is the standard type metal guard rails used for roadway safety, highway and traffic barriers. We uses galvanized steel sheet to fabricate metal railings of waved beams. The beam bends when a vehicle crashes, absorbing the impact of the shock.
Technical parameters:
1. Matching material: according to the drawing
2. Material thickness range: 3.0-4.0mm
3. Main motor power:22kw+22kw
Oil pump:22kw , Leveling power:11kw , hydraulic Decoiler power:4kw
4. Forming speed: 8-12m/min(include the punching)
5. Quantity of stands: about 15
6. Shaft Material and diameter: ￠110 mm, material is 45# steel
7.Tolerance: 3m+-1.5mm
8. Way Of Drive: Universal joint
9. Controlling system: PLC
10. Total weight: about 30 Tons
11. Voltage: 380V/ 3phase/ 50 Hz (as customer require)
12. Approx size of the machine: L*W*H 12m*2m*1.2m
13. Material of forming rollers: Cr12, coated with chromed treatment

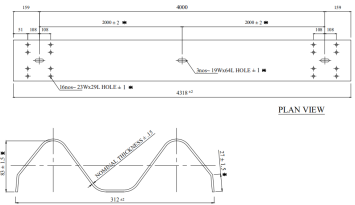

Drawing

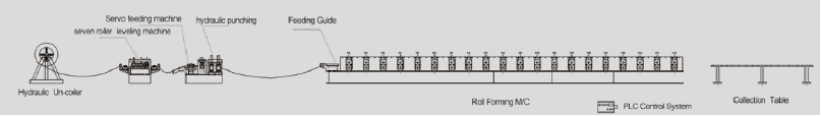

Working follow:
Hydraulic decoiler -–material guiding leveling---servo feeding machine---hydraulic punching with cutting---roll forming machine-----collection table
