PU roller shutter doorroller shutter door machine roller shutter roll forming machine
L/CT/T
PU roller shutter roll forming machine
1Decoiler:1 set
2Guide Feeding device :1 set
3main forming machine :1 set
4Foaming machine (just foamed one owned):1 set
5Straighten device:1 set
6Punching device:1 set
7flying saw cutting machine:1 set
8finished products table:1 set
9PLC control system PLC :1 set
10Spare Parts And Tools :1 set

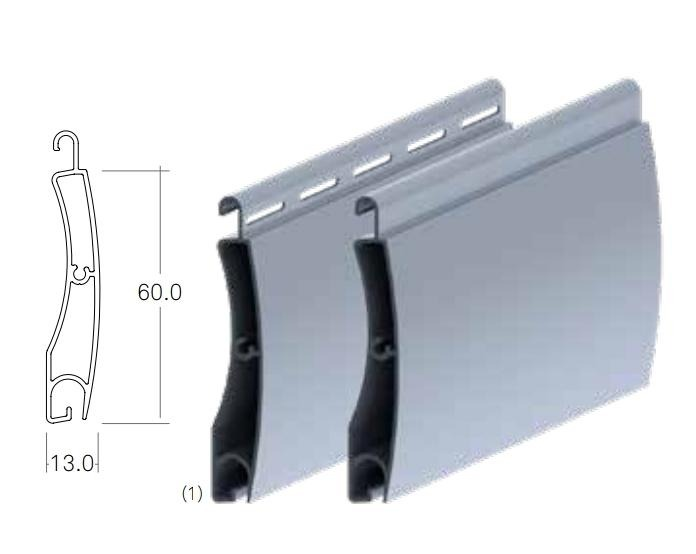

drawings

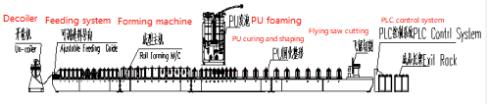

Flow chart
Decoiler—feeding device—main forming—PU injection---straighten device—punching—Cutting---run out table
Main roll forming part
Material type：Aluminum coil plate and colorful galvanize steel
Material thickness: 0.3-0.5 mm.
Material yield strength: ≤G200Mpa
Forming rollers:35
Roller material GCr15: model steel, HRC50-54
Axial diameter: Φ65mm
Main axial material: 45# steel HRB260-280
Driving part : chain
Frequency conversion decelerating
PLC control: fix length control ±1mm
Main components: CHINT, DELIXI
The precision of roller: less than ±0.5mm
Main roll forming machine motor: 380V, 50HZ, 11kw (or according to your requirements)
Machine basement material: H beam
Working speed: 8-10m/min
dimensions ：1650mm× 1000mm × 1200mm
Machine weight: about 7T
