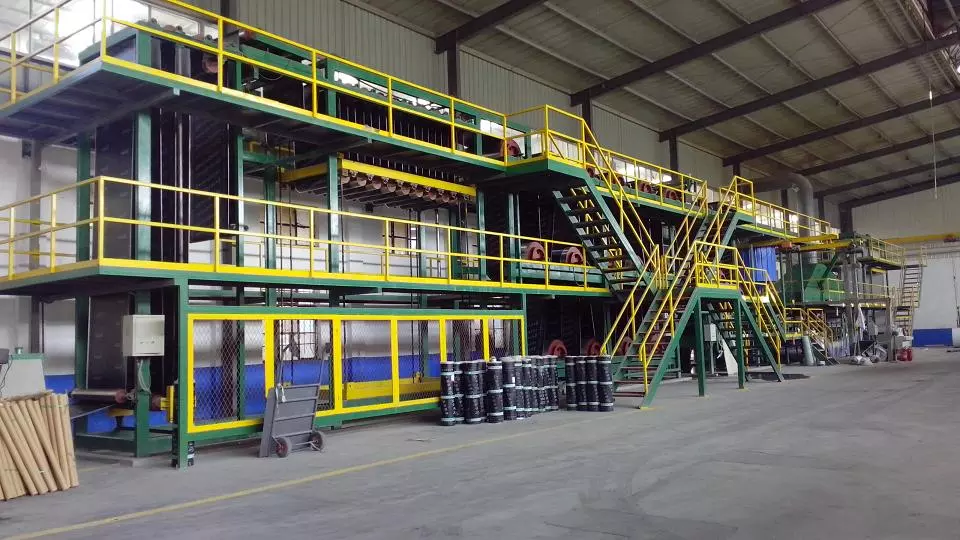

bitumen membrane production

ID:20102124727

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 211250.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

app bitumen membrane plantapp felt machineasphalt membrane machineasphalt membrane plantasphalt rolls equipmentasphalt rolls machineasphalt rolls plantasphalt rolls production lineasphalt roofing felt machineasphalt sheet machine

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

CHENHUA

Product Package

Nude packing, simply packed by straw rope.strong plywood box packing for damageable parts.

Specification

Place of Origin

CHINA

Port

Qingdao

Specification

Annual Capacity	Small capacity	Middle capacity	Big capacity
Annual Capacity	DYZ-300	DYZ-500	DYZ-800/1000
Membrane (M2) Annual output	0---3million M2	0---5million M2	0---8/10million M2
Indoor workshop required At least (LWH)	45 * 12 * 7 meters	50 * 15 * 7 meters	60 * 17 * 8 meters
Outside area required	500 M2	600 M2	800 M2
Work speed	0-50meters /min	0-60meters /min	0-60meters /min
Operation mode	Semi-Auto / Auto	Semi-Auto / Auto	Semi-Auto / Auto
Labor required	8-12 according to workers’ skills

Finished products

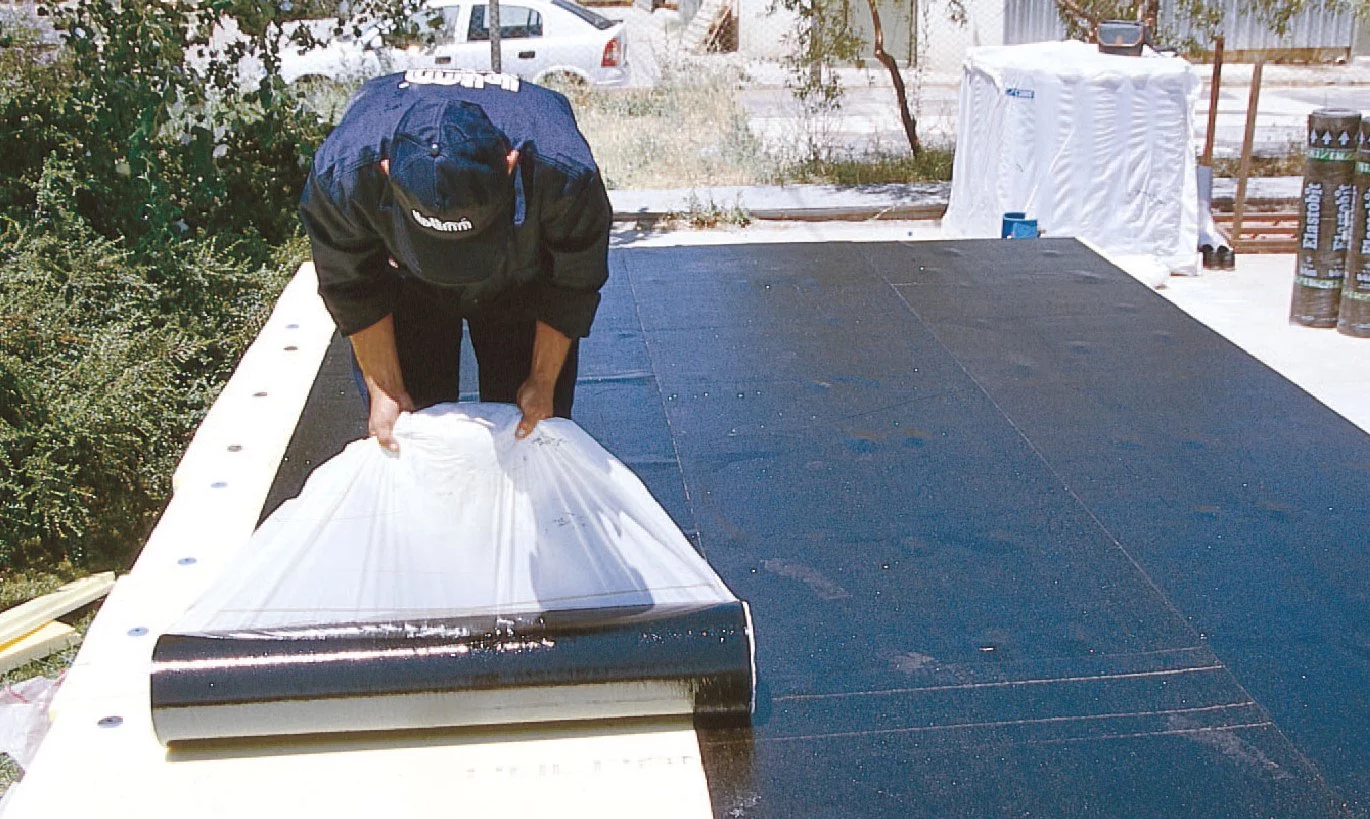

Torch applied bituminous membrane
Thickness: 2mm --- 5mm
Reinforcement: Polyester / Fiberglass / Copper polyester ...

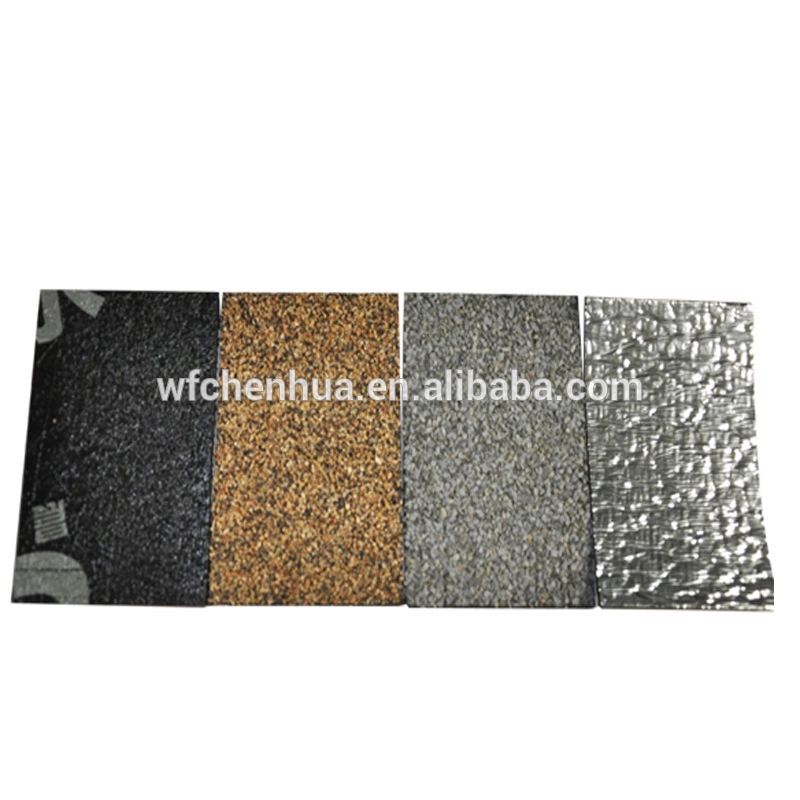

Top materials: Polyethylene film / Sand or flakes / Aluminum

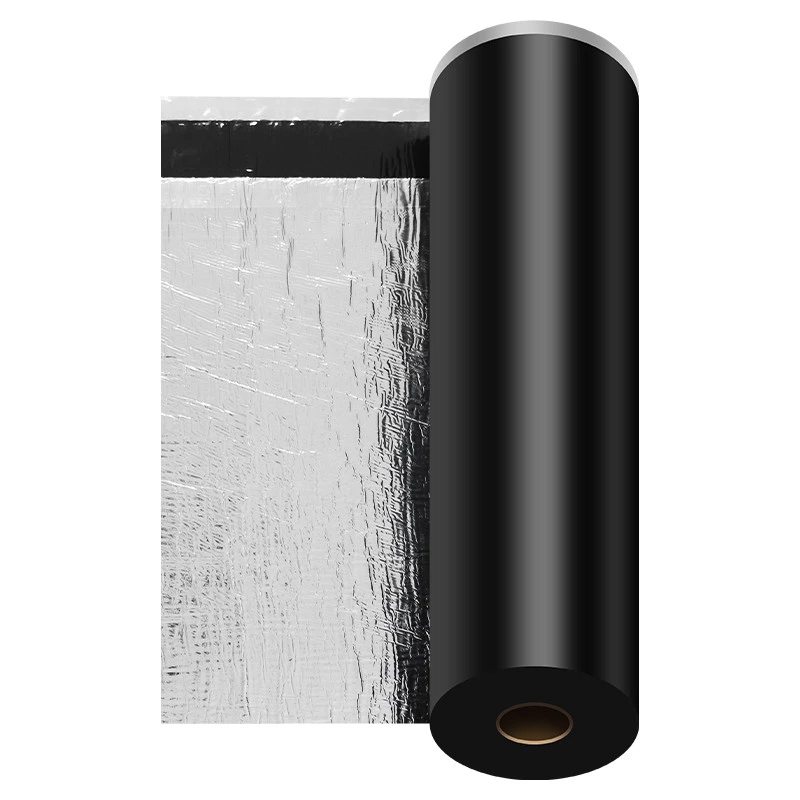

Self adhesive bitumen membrane Reinforcement:with or without
Thickness: 1mm ---5mm
Reinforcement: no/Polyester / Fiberglass / Copper polyester/ Metal ...
Top materials: Aluminum / Sand or flakes / Polyethylene film ....

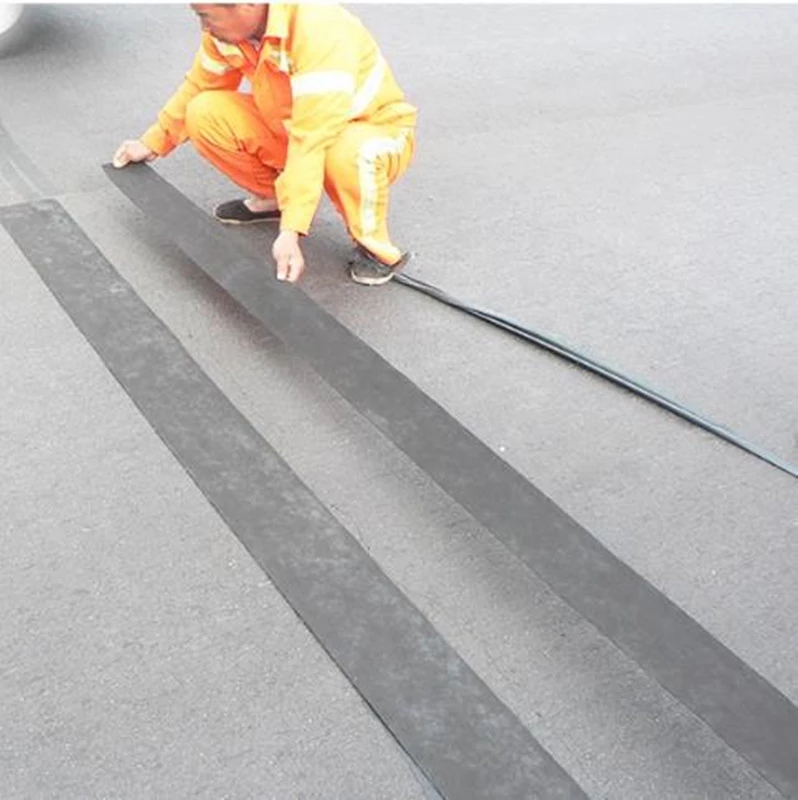

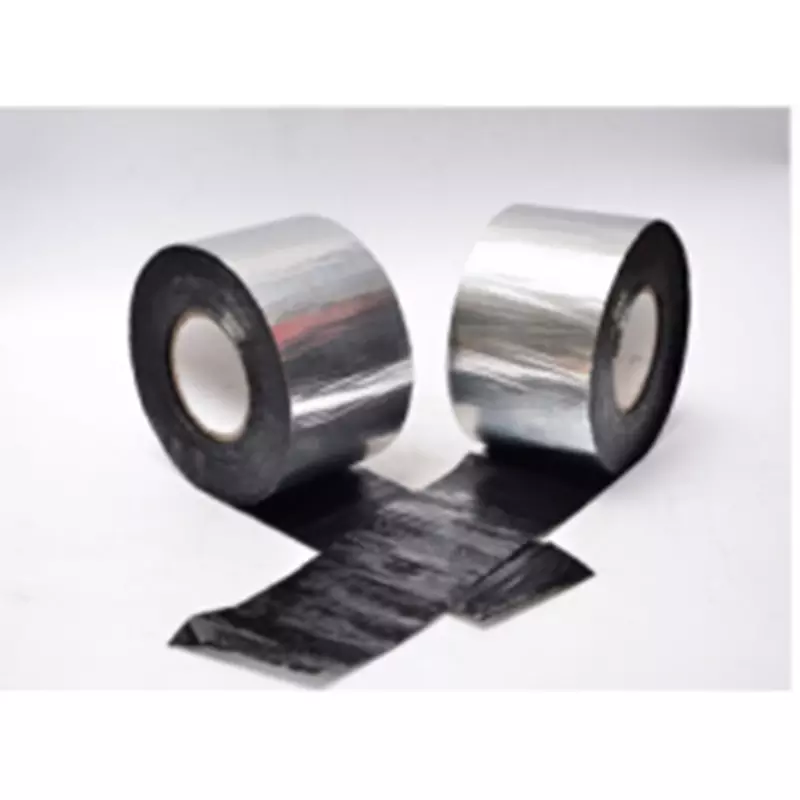

Self adhesive bitumen tapes (optional)
Thickness: 1mm ---5mm
Width: 50mm --- 1000mm
Length: 10m or adjustable.

Advantage:

* With 10 years’experience of installing in domestic and overseas
* Easy to learn and operate the production line running
* Easy to solve emergency
* Teach you know to produce different quality of finished membranes
* Quick delivery

**responsible for machine whole life
