RB380Automatic rigid box making machine
Digital setting
Dual wrapping station
Speed 60% faster
RB380 is the newly developed high-speed intelligent rigid box machine. It employs high speed motion controller, PLC programmable controller, Yamaha robot &camera positioning system, pneumatic system, HMI and remote monitoring system to automatically finish feeding and gluing paper, conveying cardboard, forming and pasting four corner of cardboard, positioning and bonding, and wrapping box in one time. Effectively replace manual production, greatly improving production efficiency and quality of finished boxes. It is applicable to make high-end boxes for mobile phones, shoes, shirts, cosmetics, perfume, moon cakes, sweets, chocolates, liquors, cigarettes, tea, etc.
Features:
1.Automatic servo controlled paper feeder.
2.Automatic circulation, mixing and gluing system of hot-melting glue. (Optional: glue viscosity meter)
3.Cardboard pre-stacker and conveyor.
4.Hot-melting paper tape is automatic conveying, cutting, and pasting the cardboard box corners in one process.
5.The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
6.The glued paper and cardboard inner box employ YAMAHA Robot and three camera positioning device to spot correctly.
7.Double wrapper unit, according to the conveying situation of the boxes above the conveyor belt, take the boxes to the wrapper unit in turn.
8.The wrapper can continually delivery boxes, wrap, fold ears and paper sides, form and press the box in one process.
9.Servo control, digital adjustment, data can be stored, and size conversion is automatically completed.
10.Equipped with automatic fault alarm, automatic lubrication and remote monitoring functions.
Main Technical Parameters:

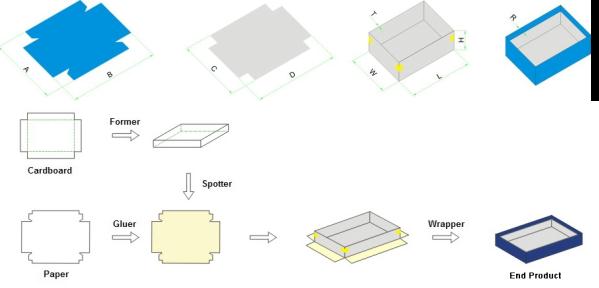

The corresponding relationship between the parameters:
W+2H-4T≤C(Max) L+2H-4T≤D(Max)
A(Min)≤W+2H+2T+2R≤A(Max) B(Min)≤L+2H+2T+2R≤B(Max)
| Model | RB380 | |
| 1 | Paper size(A×B) | Min.70*120mm, Max. 480*630mm |
| 2 | Box size(W×L) | Min. 50*60mm, Max.260*380mm |
| 3 | Box height(H) | 10-120mm |
| 4 | Fold-in paper size(R) | 10-100mm |
| 5 | Paper thickness | 80-300g/m2 |
| 6 | Cardboard thickness(T) | 0.8-3mm |
| 7 | Paper stacking height | 650mm |
| 8 | Precision | ±0.10mm |
| 9 | Speed | <50sheets/min |
| 10 | Motor power | 28kw/380v 3phase |
| 11 | Heater power | 6kw |
| 12 | Air supply | 50L/min 0.6Mpa |
| 13 | Machine weight | 5500kg |
| 14 | Machine dimension(L×W×H) | L6300×W6000×H3300mm |
| 15 | Paper type | 1/2/3 |

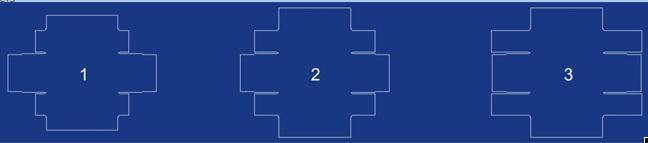

Paper type:
Remark:
1. The max and mini sizes of the boxes are subjected to those of the paper and the quality of the paper.
2. The speed depends on the sizes of the boxes.
3. We don't provide air compressor.
