FRP GratingFRPgRATINGgrpFiberglass MeshFiberglassconcavegrittedanti-slipchemical
L/CT/T
Product Detail
| Place of Origin | Ningbo, China | Brand Name | Haoyuan or customized |
| Application | Flooring ,Walkway, Trench Cover, Construction etc. | Material | Resin and Fiberglass Reinforced Plastic |
| Surface Treatment | Concave, Smooth, Gritted, checkered cover | Technique | Molded / Pultruded |
| Dimensions | Customized | Color | Yellow, green, red, grey etc |
| Shape | Customized | Feature | High Strength |
| Service Life | 10-30 years | Delivery Time | Shipped in 5 days after payment, mainly depend on quantity |
| Certificate | ISO9001 | OEM | Accepted |

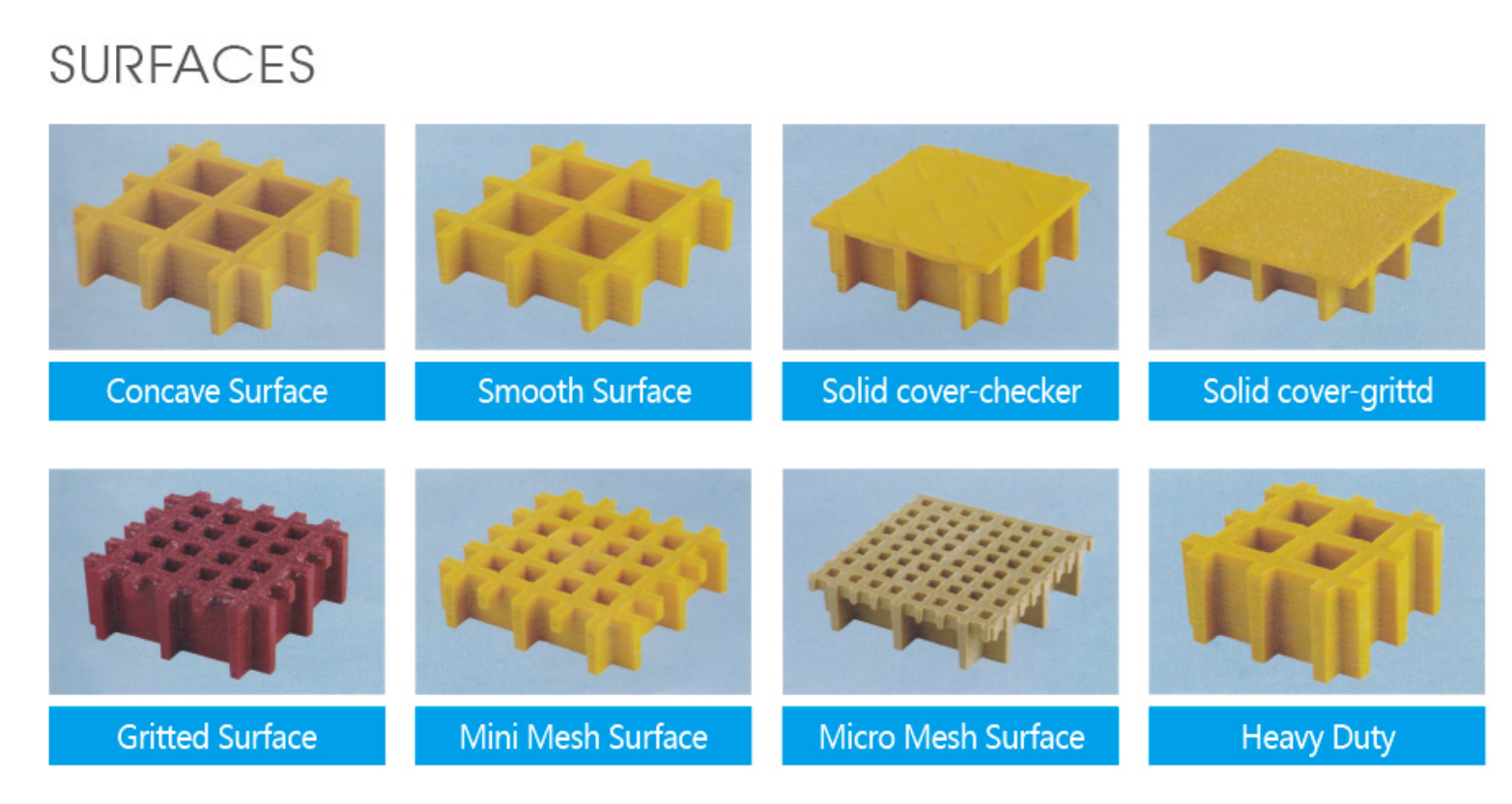

Surface Type
Resion, Fiberglass and Stuffing Selection
| Resin | Application Scope |
| Type O (Orthophthalic type) | Generally used for ordinary corrosive environment and also for sea corrosion, faintly acid corrosion as well as weathering ageing environment. |
| Type I ( Isophthalic type) | Generally used for the environment with stronger acidic corrosion or general one. |
| Type V ( Vinyl Ester type) | Generally used for serious corrosive environment with acid, alkali, solvent etc. |
| Type P ( Phenolic type) | Used for high fire resistance and low areas. |
| Fiberglass | |||
| Fiber Composition | Size | Property | Application Scope |
| Alkali-free Roving | 2400TEX or 4800TEX | It is of good permeability, high bond with resin matrix, which makes the products be of excellent mechanical properties and corrosion resistance. | Used for high strength requirement and corrosion-resistant. |
| Medium Alkali Roving | 2400TEX | It is of good permeability, high bond with resin matrix and high acid-resistance. | Generally used for serious corrosive environment |
| Stuffing | ||
| Stuffing Selection | Property | Application Scope |
| aluminium hydroxide powder | Flame-retarded, enhanced, oxygen index is above 28. | Flame-retarded, restraining smoke environment. |
| calcium carbonate powder | Enhanced, moderately lower cost. | No requirement for flame retardance. |
| No stuffing, pure resin | Good transparency | No requirement for flame retardance, high abrasion resistance. |
Molded Grating Specification
| Mesh Shape | Thickness (mm) | Mesh Size (mm) | Grating Size (mm) | Weight (kg/m2) | Open Area (%) |
| Normal Square Mesh | 13 | 38×38 | 1220×3660 | 5.5 | 87 |
| 13 | 50×50 | 1220×3660, 2000×2000 | 6.5 | 82 | |
| 20 | 38×38 | 1220×3660 | 9.2 | 69 | |
| 25 | 38×38 | 1000×3017, 1000×3000, 1000×3660 | 12.5 | 70 | |
| 25 | 40×40 | 1000×2000, 1000×3000, 1000×4000, 1200×3000 | 13.5 | 65 | |
| 30 | 38×38 | 1000×3017, 1000×4038, 1220×3660 | 14.5 | 65 | |
| 30 | 40×40 | 1000×2000, 1000×3000, 1000×4000, 1200×3000 | 15.5 | 53 | |
| 38 | 38×38 | 1000×3017, 1000×4083, 1220×3660 | 18.5 | 70 | |
| 38 | 40×40 | 1000×2000, 1200×3000, 1000×4000, 1500×3000 | 19.5 | 70 | |
| 50 | 50×50 | 1525×4025, 1220×3660, 1220×4025 | 21.5 | 78 | |
| 63 | 38×38 | 1220×3660 | 52 | 54 | |
| Mini Square Mesh | 30 | 19×19 | 1000×2000, 1000×3000, 1000×4000, 1200×2000, 1200×4000, 1500×3000 | 16.5 | 44 |
| 40 | 19×19 | 1000×2000, 1000×4000, 1200×2000, 1200×4000 | 21.5 | 45 | |
| 50 | 19×19 | 1220×3660 | 26.5 | 44 | |
| Micro Square Mesh | 30 | 15×15 | 1000×3000 | 19.5 | 45 |
| 30 | 13×13 | 1000×4083, 1220×3660 | 18.5 | 53 | |
| 38 | 13×13 | 1000×4083, 1220×3660 | 22.5 | 53 | |
| Rectangular Mesh | 25 | 100×25 | 1000×2000, 1000×3000, 1000×4000 | 13.5 | 69 |
| 28 | 100×50 | 1500×2000, 1500×4100 | 9.5 | 58 | |
| 38 | 152×38 | 572×3660 | 17.5 | 77 | |
| 38 | 152.4×25.4 | 1220×3660 | 21.4 | 56 | |
| 38 | 101.6×38.1 | 1220×3660 | 16.5 | 74 | |
| Heavy Duty Square Mesh | 50 | 50×50 | 1220×3660, 1220×4010 | 21.5 | 48 |
| 55 | 50×25 | 1500×3000 | 30.5 | 50 | |
| 60 | 38×38 | 1220×3660 | 45.5 | 63 |
Pultruded Grating Specification
| Type | Height (mm) | Top Edge Width(mm) | Space Between (mm) | Clearance Width (mm) | Open Area (%) | Estimated Weight kg/m2 |
| I-4010 | 25 | 15 | 25 | 10 | 40 | 17.8 |
| I-5010 | 25 | 15 | 30 | 15 | 50 | 15.1 |
| I-6010A | 25 | 15 | 38 | 23 | 60 | 12.2 |
| I-6010B | 25 | 8 | 19.8 | 11.8 | 60 | 13.7 |
| I-4015 | 38 | 15 | 25 | 10 | 40 | 22 |
| I-5015 | 38 | 8 | 30 | 15 | 50 | 19.1 |
| I-6015 | 38 | 15 | 38 | 23 | 60 | 16.2 |
| I-4012 | 30 | 15 | 25 | 10 | 40 | 19.1 |
| I-5012 | 30 | 15 | 30 | 15 | 50 | 16.1 |
| I-6012 | 30 | 15 | 38 | 23 | 60 | 13.1 |
| I-40125 | 32 | 15 | 25 | 10 | 40 | 19.8 |
| I-50125 | 32 | 15 | 30 | 15 | 50 | 17.4 |
| I-60125 | 32 | 15 | 38 | 23 | 60 | 13.5 |
| I-4020 | 50 | 15 | 25 | 10 | 40 | 28.5 |
| I-5020 | 50 | 15 | 30 | 15 | 50 | 24.2 |
| I-6020 | 50 | 15 | 38 | 23 | 60 | 20.1 |
| T-1210 | 25 | 38 | 43.4 | 5.4 | 12 | 17.9 |
| T-1810 | 25 | 38 | 50.8 | 9.5 | 18 | 13.8 |
| T-2510 | 25 | 38 | 50.8 | 12.7 | 25 | 13.6 |
| T-3310 | 25 | 41.3 | 19.7 | 61 | 33 | 11.2 |
| T-3810 | 25 | 38 | 61 | 23 | 38 | 11.8 |
| T-1215 | 38 | 38 | 43.3 | 5.2 | 12 | 19.6 |
| T-2515 | 50 | 38 | 50.8 | 12.7 | 25 | 16.7 |
| T-3815 | 50 | 38 | 61 | 23 | 38 | 14.2 |
| T-3320 | 50 | 25.4 | 38.1 | 12.7 | 33 | 21.7 |
| T-5020 | 50 | 25.4 | 50.8 | 25.4 | 50 | 17.2 |
| HL-4020 | 50 | 15 | 10 | 10 | 40 | 62.8 |
| HL-5020 | 50 | 15 | 15 | 15 | 50 | 52.2 |
| HL-6020 | 50 | 15 | 23 | 23 | 60 | 43.5 |

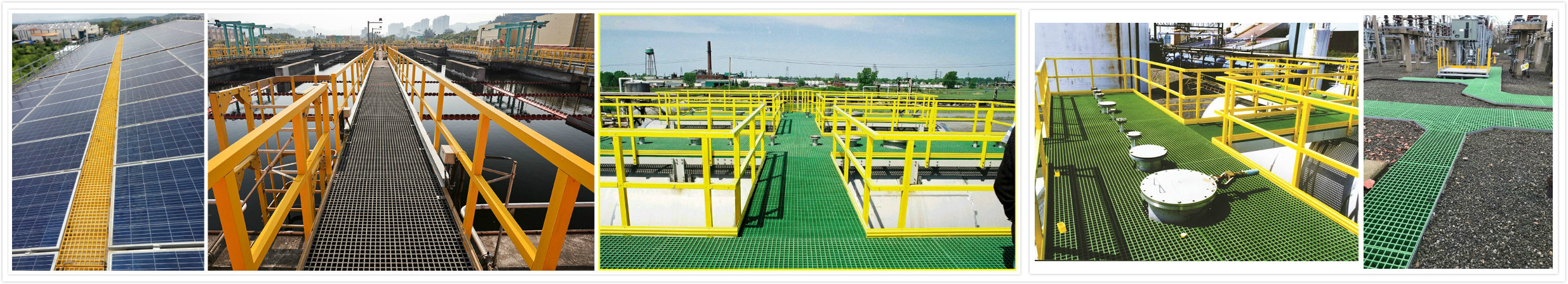

Application
Stairs
Walkways and platforms
Mining and industrial platforms
Marine applications - e.g. marinas, jettys and moorings
Architectural Solutions
Water trench covers
Chemical industry platforms and walkways
Water/Wastewater Treatment
Platforms and walkways where non electrical and thermal insulating properties are required

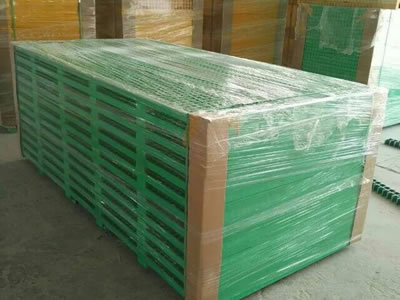

Package
Fiber Reinfored Plastic Grating Bundled by belt, packed in pallet, carton ect.
Packing can be customized.
