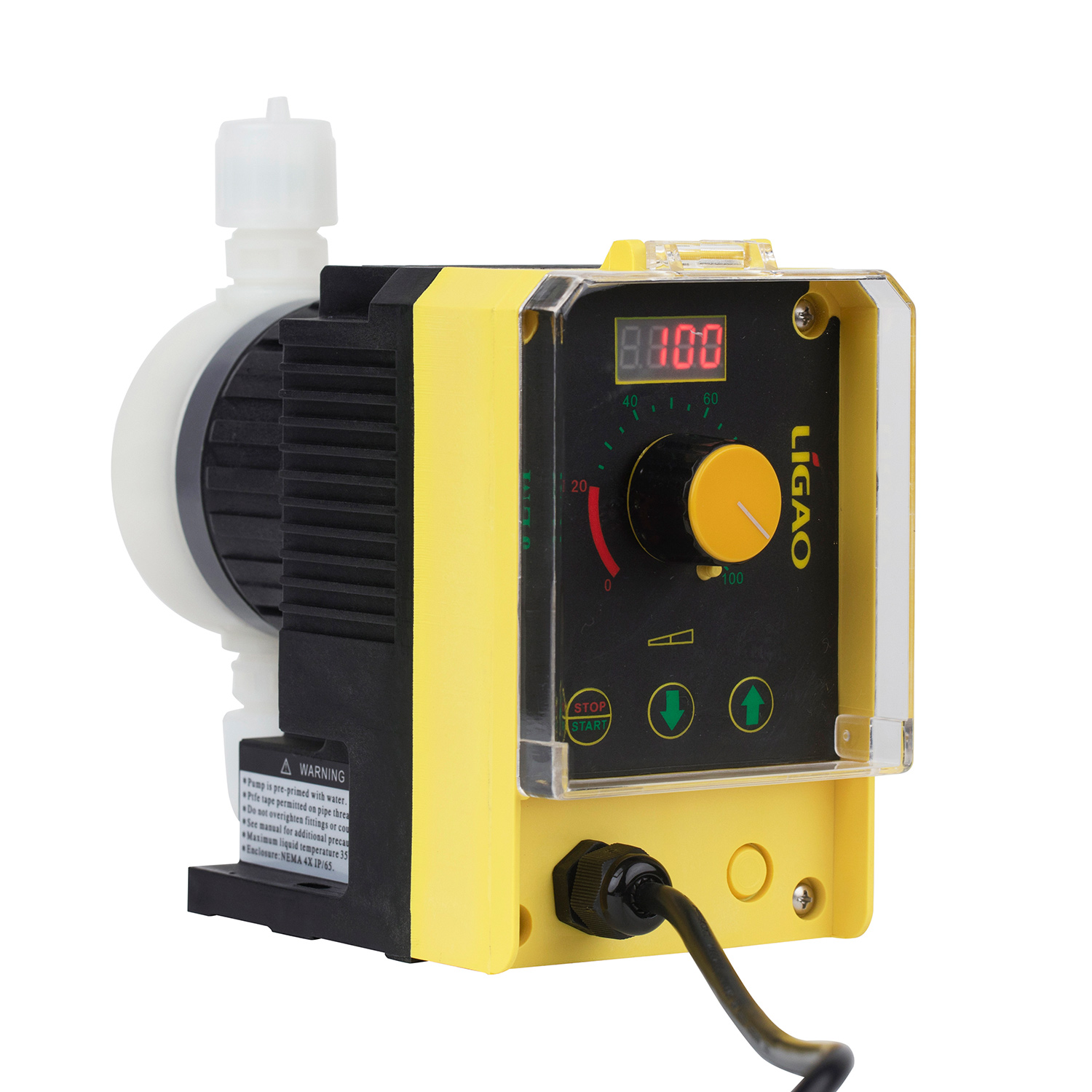

JLM Solenoid Dosing Pump

JLM series solenoid diaphragm metering pump is effective and reliable digital pump for nearly all chemical dosing. The solenoid shaft is sucked by the magnetic wire and pushed back by the spring, which makes the diaphragm in the dosing head suck and discharge. The check valves which with double balls prevent backflow when pumping.The precise dosing can be controlled both by the stroke length and stroke speed manually. The capacity range is from 1.0l/h to 20l/h at a back pressure from 10 bars to 1bar. All most any chemical with low viscosity can be dosed with JLM solenoid diaphragm metering pump.It is an economical meterng pump widely used in dosing applicaitons.

Applications:

• Potable water treatment: Metering of disinfectants

• Cooling circuits: Metering of corrosion inhibitors and biocides

• Waste water treatment: Metering of flocculants

• Paper industry: Metering of additives

• Plastics production: Metering of additives

Features:

• Manual flow control by both stroke length and stroke speed;

• Wear-free solenoid driving with no bearing;

• Compact modular design( liquid end, drive and electronic board are modular, easy for replacement) ;

• Intelligent display the stroke speed in percentage;

• Check valve assemblies are with two balls and are designed for easy maintenance;

• Accessories are included: hose,injection valve,foot valve,ceramic weight;

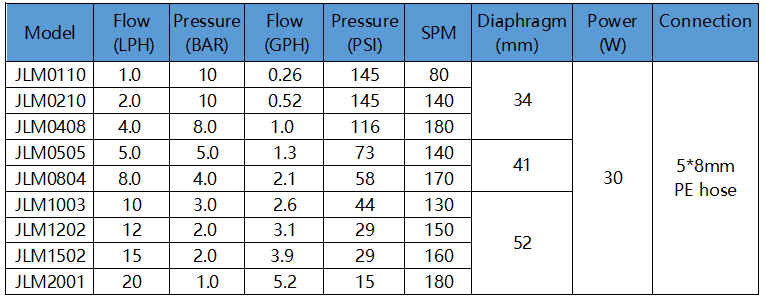

Parameter:

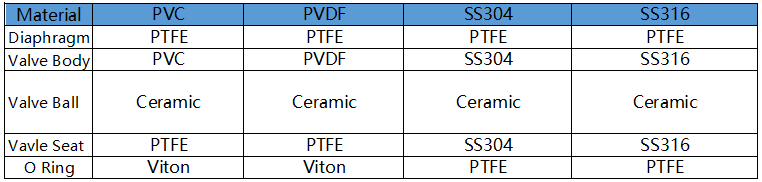

Material Construction:
