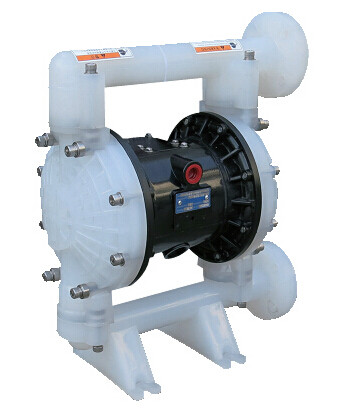

Air Diaphragm PumpsAir Pumpsneumatic diaphragm pumpsAir Operated Pump
L/CT/T
Wetted Parts Material: PP/PVDF/Aluminum/Stainless Steel
Features:
? 1 in (25.4 mm) end-porting
? High flow – 40 gpm (151 lpm) in a compact, portable size
? Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
? Epoxy-coated center section
? External controller for optional remote operation
Applications:
? Machine lubrication servicing
? Drum evacuation
? Plating and dip tanks
? Water treatment
Typical Fluids Handled:
? Chemicals
? Acetic acid
? Chromic acid
? Hydrochloric acid
? Hydrofluoric acid
? Sulfuric acid
? Nitric acid
? Phosphoric acid
Technical Specifications:
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 40 gpm(150 lpm) |
| Max Reciprocating Speed | 276cpm |
| Max Suction Height (Dry Sucking) | 5.48m |
| Max Permitted Grain | 4mm |
| Max.Air Consumption | 45scfm(22.5L/s) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 1 in.npt(f) |
| Fluid Outlet size | 1 in.npt(f) |
| Weight | PVDF Pump 10.0kg/PP pump 8.0kg Aluminum pump 8.2kg; Stainless Steel 15kg |
