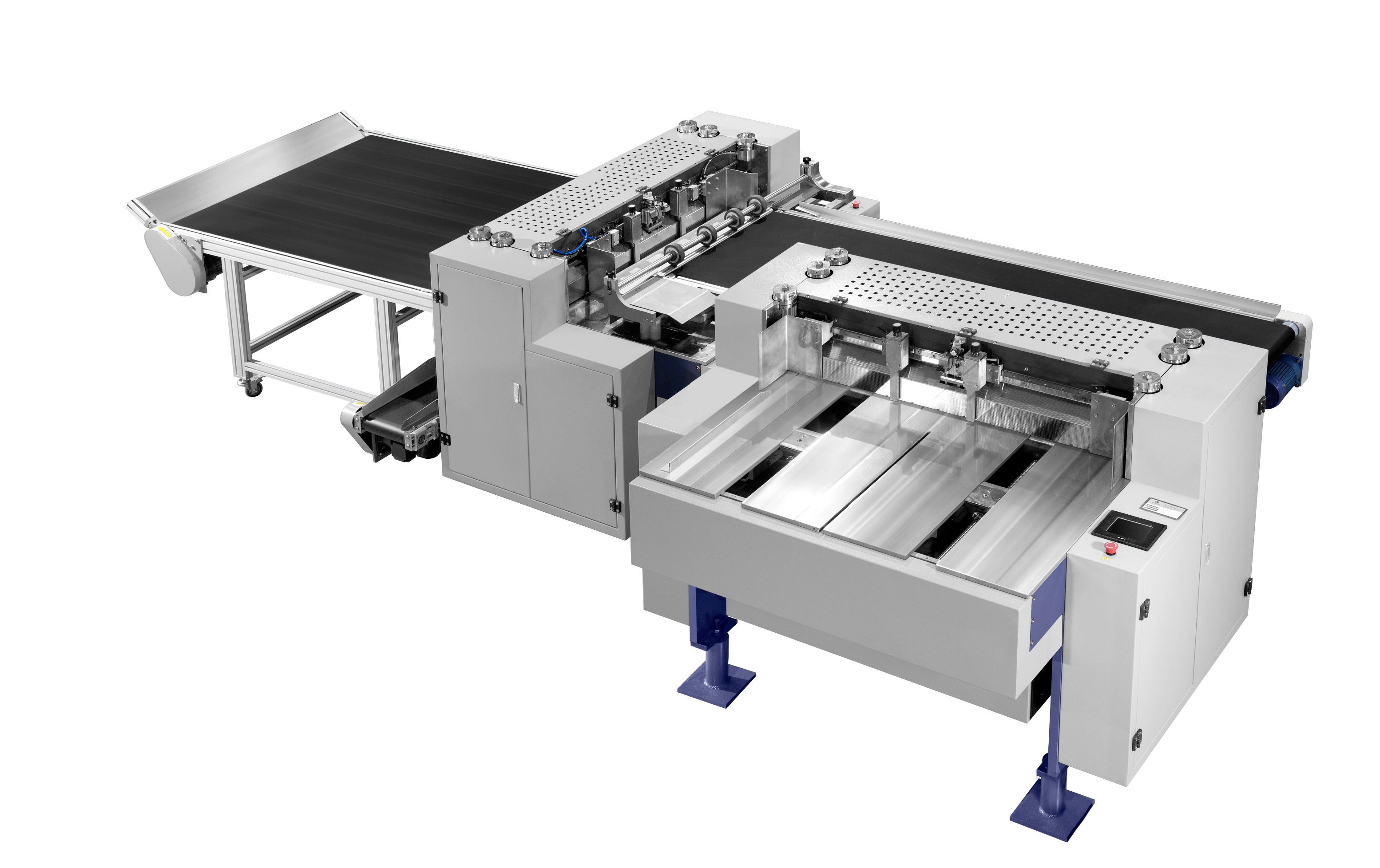

KL1300AS Cardboard cutter
It is an upgrading model KL1300A. Two sets of KL1300A cardboard cutter machines are connected together via the transfer belt which can finish board cutting work two times in the same process. It is mainly used for cutting cardboard, grey board, etc. which is necessary for hardcovers and package cases.
Features:
1. The big cardboard is fed by hand, automatic feeding for small cardboard.
2. Pneumatic cylinders control the pressure, easy adjustment of cardboard thickness.
3. Servo controlled and setup via touch screen.
4. The concentrated lubrication system, easy to maintain.
5. Machine seat is made of casting iron, stable without bending.
6. The crusher can cut the waste into small size and convey them out of the machine by belt.
7. With a 2 meters conveyor belt for collecting.
8. The safety cover is designed according to European CE standard.
Main technical parameter:
| Model | FD-KL1300AS |

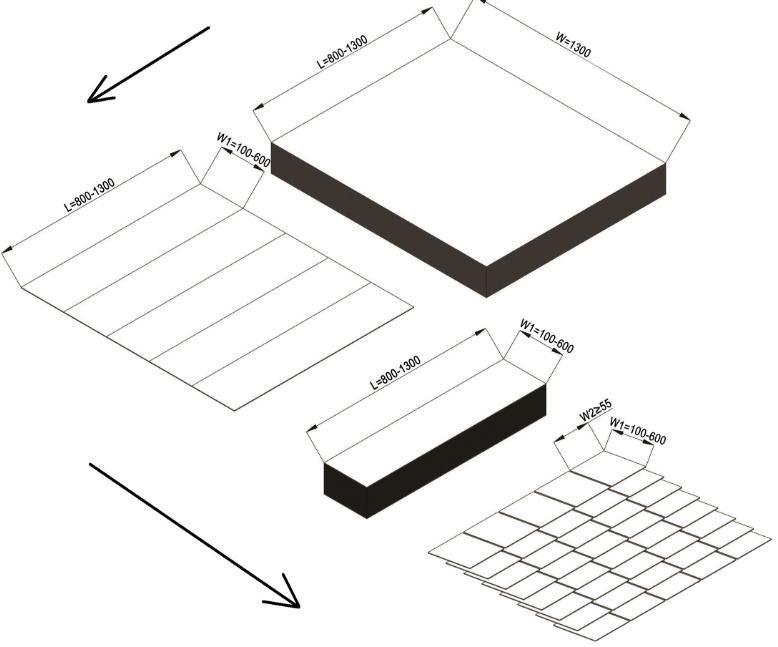

| Cardboard width | W<1300mm, L=800-1300mm W1<100-600mm, W2≥55mm |
| Cardboard thickness | 1-3mm |
| Production speed | ≤60m/min |
| Motor power | 11kw/380v 3phase |
| Air supply | 10L/min 0.6Mpa |
| Machine weight | 2800kg |
| Machine dimension | L5500×W3000×H1425mm |
