Solar Water Heaters
L/CT/TD/PWestern UnionPaypalMoney GramOthers

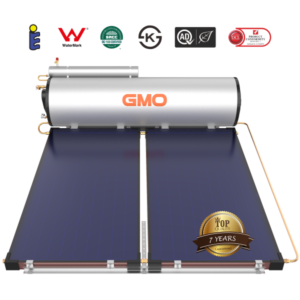

GMO roof top solar water heater save space on the ground, and its simple can compact design make it high efficient and reliable. GMOI Series is a roof mounted, closed circuit solar water heater designed to provide economic service.It is suitable for frost prone or harsh water chemistry areas.
GMOI Series Family has 150L, 200L, and 300L solar hot water system.
Hurricane Resistant Mounting Frame is available.
Titanium Blue Solar Water Tank GMO enamel coating is made from titanium blue enamel powder, and meet drinking water standard. Enamel Solubility reach Y class, and resist against 85℃ hot water. Longer Tank Life. Unique Appearance and Excellent Performance Solar Collector High efficiency absorber with its Sputtered Selective Surface maximizes the absorption of solar energy. Over High Temperature Protection Device The system is equipped with a Cooling Tank to avoid over high temperature during periods of high solar radiation, and extend the system life. Strong Anode Rod GMO Stronge anode rod can perfectly protect the water heater tank against the corrosion, and ensure the even longer life of water heater. GMOI Series solar system’s vitreous enamel lined solar storage tank installed on the roof and directly connected to the solar collectors. In the Closed Circuit Series, sun heat is absorbed by the collector and passed to the heat transfer liquid inside the collector. As the temperature of the heat transfer liquid increases, the hot fluid rises up through the collector by the Natural Thermosiphon Principle, into the heat exchanger jacket around the water storage tank. The heat is transferred to the water, and cooling the heat transfer fluid at the same time. The cooler fluid flow down into the collectors and further hot fluid rising up into the heat exchanger jacket. Incoloy800 Heating Element CB, UL Approved 59T66T Thermostat UL, VDE Approved P/T Relief Valve, CSA, ASME, ANSI, FHA Approved Pressure Relief Valve Solar Controller Cooling Tank-Over High Temperature Protection DeviceProduct Features
How Roof Top Solar Water Heater Work
Top Quality Parts
Certifications
Technical Parameter
Solar Tank Specification
MODEL GMOI150-150L GMOI200-200L GMOI300-300L Storage Capacity 150 Liters 200 Liters 300 Liters Boost Capacity(Electric) 75 Liters 100 Liters 150 Liters Jacket Heat Transfer Area(㎡） 1.2 1.7 2.5 Jacket Volume(L) 8.6 12 18.6 Jacket Relief Pressure 0.1Mpa 0.1Mpa 0.1Mpa Weight Empty 70 KG 80 KG 120 KG Weight Full 205 KG 265 KG 420 KG Working Pressure 0.85Mpa 0.85Mpa 0.85Mpa Solar Collector Specification
MODEL GMO-2000A Collector Dimension 2000X1000X76mm Gross Area 2m2 Net Aperture 1.85m2 Header Tube Diameter(mm) φ22 Riser Tube Diameter(mm) 9 x φ8 Dry Weight 35 KG Fluid Capacity 1.30 Liter Max. Working Pressure 0.85Mpa Absorber Coating Blue Unite Sputtered Selective Surface Absorber/Riser Materialal Aluminum Frame Material Double Aluminium Alloy Insulation Material 38 mm glass wool blanket Glass 3.2 mm tempered low iron Performance Rating 6.01kWh/day Electric Boost Specification
MODEL GMOI150-150L GMOI200-200L GMOI300-300L Power 1.8kW, 2.4kW, 3.6kWW, 4.8kW 1.8kW, 2.4kW, 3.6kWW, 4.8kW 1.8kW, 2.4kW, 3.6kWW, 4.8kW Flat Panel Quantity Option
MODEL GMOI150-150L GMOI200-200L GMOI300-300L Quantity 1 Pieces 1 or 2 Pieces 2 or 3 pieces
