Fully Automatic High Speed Paper Bag Making Machine

Performance and Usage

Full automatic food paper bag machine, it uses paper roll in blank or printed, raw material should be kraft paper, striped brown paper, slick paper, medico paper, coated paper etc. Perforating, side gluing, photocell tracking, computer control length, tube forming, tube cutting off, bottom folding bottom gluing,and final product collection can be completed within one time. Machine operate easily, have high efficiency, running steady, it’s an ideal machine for making different kind of paper bag, snack food paper bag, bread paper bag, dry fruit bag and environment-friendly paper bag.

Features

1. Use France SCHNEIDER touch screen human-computer interface, operate and control easily.

2. Adopt UK original TRIO PC controller, integrated with optical fiber, ensure high speed running steadily.

3. Adopt Japanese original YASKAWA servo motor and Germany original SICK photocell for rectify, tracking printed bag accurately.

4. Raw material loading adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.

5.Raw materials China correction using Taiwan Pasource, reduce the roll adjustment time alignment.

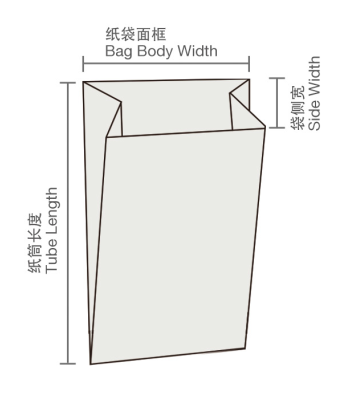

Main Technical Parameters
