HCM390 Automatic high speed casemaker
Usage:
It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, files etc.
Main Technical Parameters:

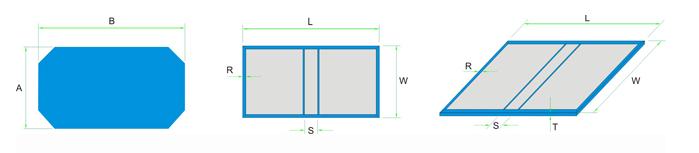

| Model | HCM390 | |
| 1 | Case size(A×B) | MIN: 140×205mm MAX: 390×670mm |
| 2 | Paper size (W×L) | MIN: 130×220mm MAX: 428×728mm |
| 3 | Paper thickness | 100~200g/m2 |
| 4 | Cardboard thickness (T) | 1~4mm |
| 5 | Spine size (S) | 8-90mm |
| 6 | Spine thickness | >200g&1-4mm |
| 7 | Folded paper size(R) | 8~15mm |
| 8 | Max. quantity of cardboard | 3pieces |
| 9 | Precision | ±0.50mm |
| 10 | Production speed | <=65sheets/min |
| 11 | Power | 8kw/380v 3phase |
| 12 | Air supply | 280L/min 0.6Mpa |
| 13 | Machine weight | 5800kg |
| 14 | Machine dimension (L×W×H) | L6200×W3000×H2450mm |
Remark:
1. The Max. and Min. sizes of cases are subjected to the size and the quality of the paper.
2. The speed depends on the size of cases
3. We don't provide air compressor.
