fully automaticdouble linenon-woven bagnon-woven T shirt bagnon-woven bag making machine
T/T
Machine Description

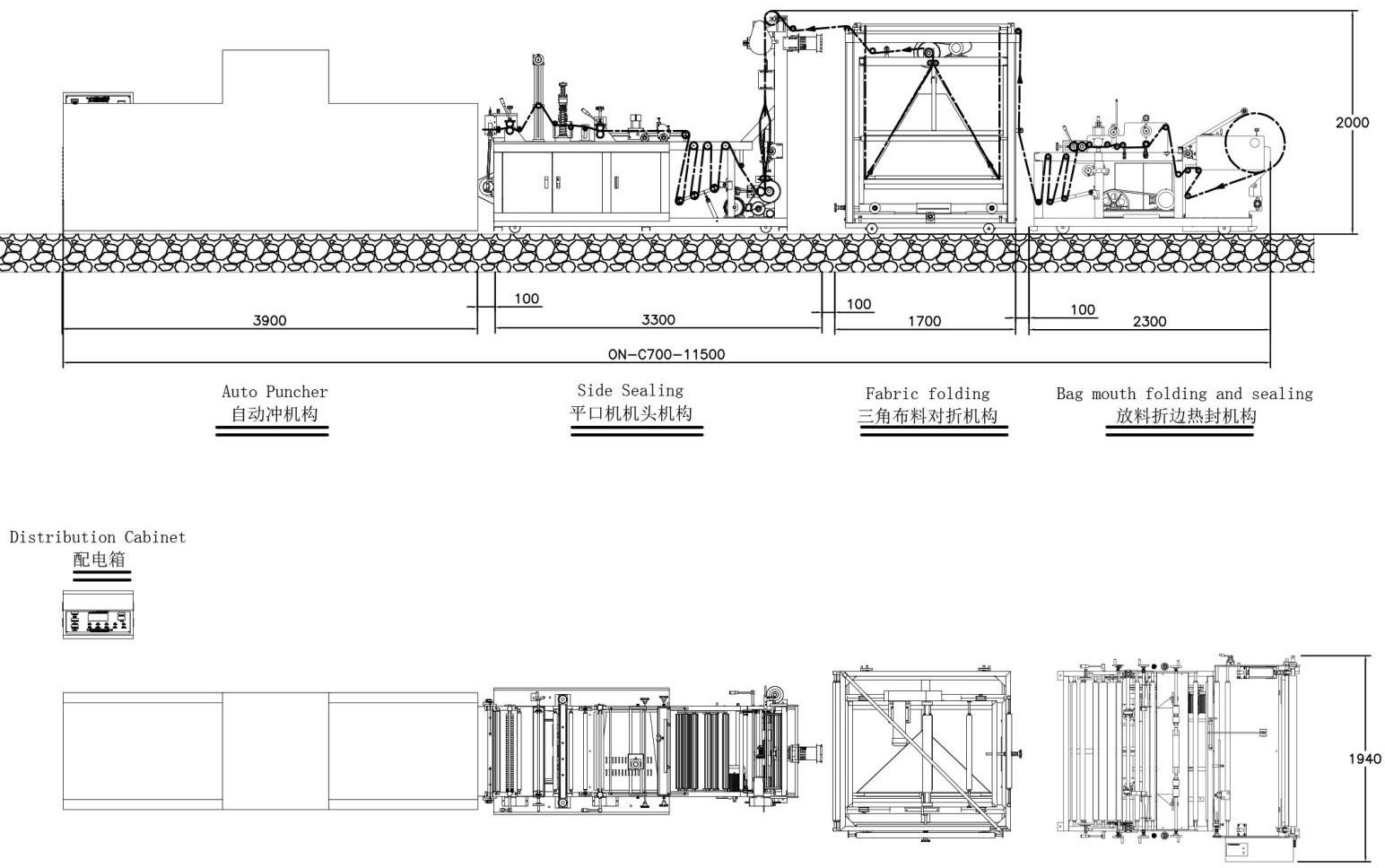

1. Schematic diagram
2. Fully Automatically Non-woven Bag Making Machine Procedure
Raw material autofolding -> Bag month folding ->Thermal bonding -> Side folding -> Bottom gusset
->Thermal bonding -> Bag cut -> Collection

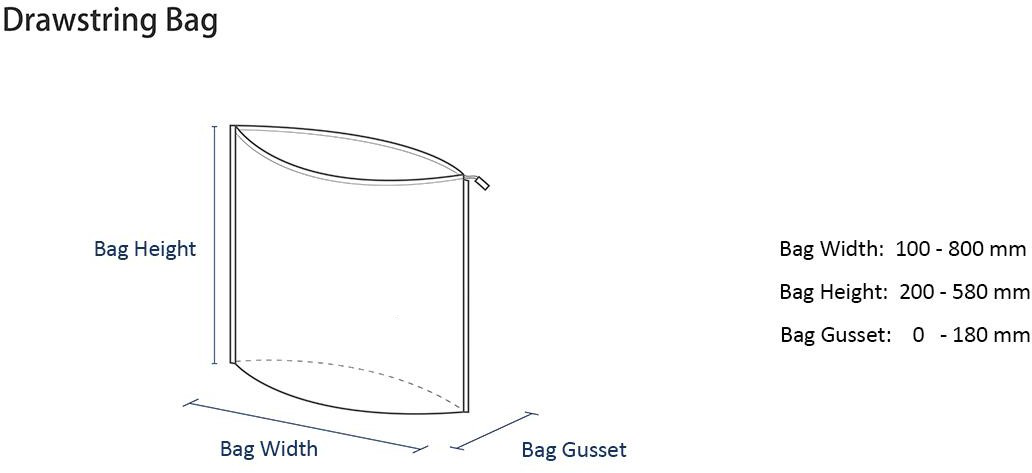

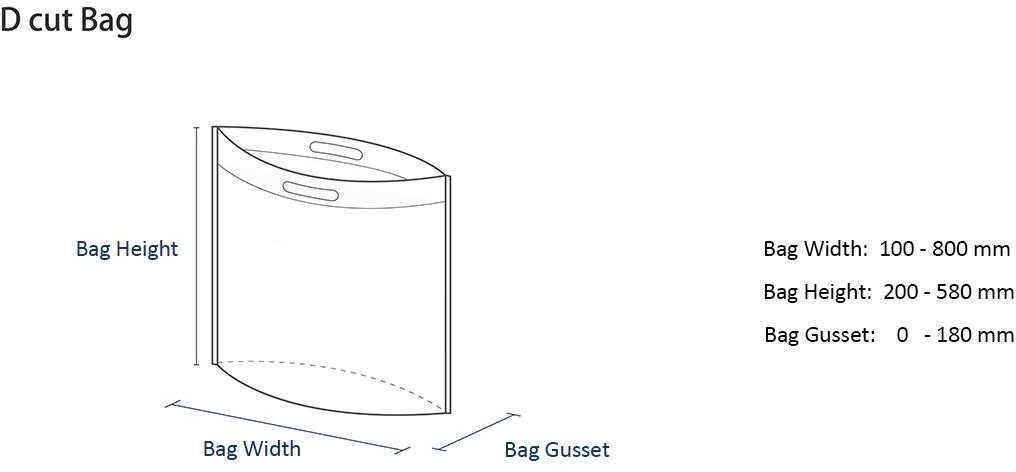

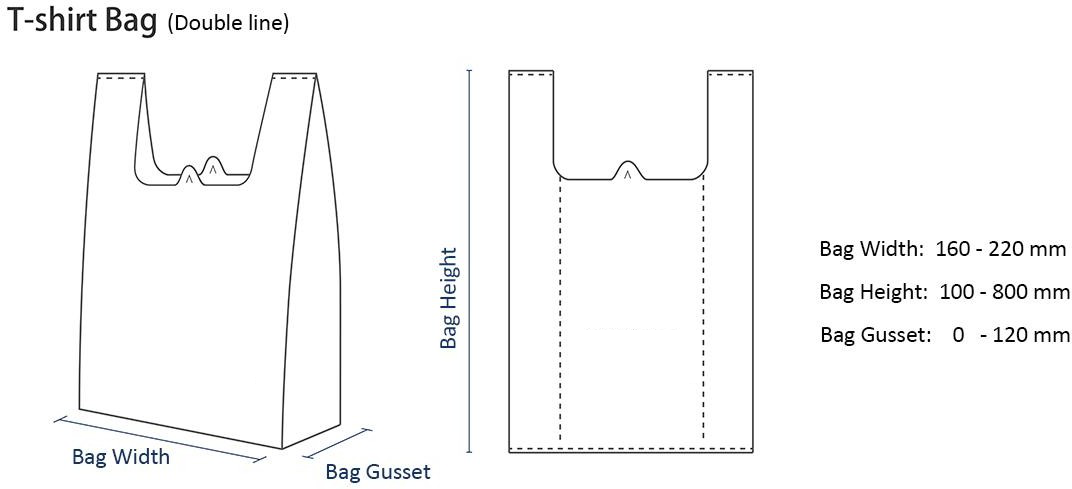

Please confirm the bag size and cutting die width
800Model can making Bag height 680mm for d cut bag and shoes bag
Machine characteristics
This machine takes non woven fabric as material, it can make various kinds of non woven bag, such as non woven flat bag, vest bag, rope wearing bag, laminated non woven bag etc. This machine can making T-shirt bag Double line, T-shirt bag Single line, D cut bag Single line. adopt touch screen controller. You can easily adjust the bag size. High available, is you can rest assured the applicable quality environmental protection bag making equipment.
NO | Item | Specification |
1 | Roller width | 1450mm |
2 | Bag making speed | 40-120pcs/min for D cut bag 80-200pcs/min for Double Line T-shirt bag |
3 | Bag length (D cut bag) | 100-800mm |
4 | Bag Height (D cut bag) | 200-680mm |
5 | Max Gusset (D cut bag) | 90mm |
6 | Bag length (T-shirt bag) | 160-220mm |
7 | Bag Height (T-shirt bag) | 200-700mm |
8 | Max Gusset (T-shirt bag) | 60mm |
9 | Power supply | 220V 50Hz |
10 | Total power | 15KW |
11 | Rated power | 15KW |
12 | Overall size | L 11500* W 2200* H 2000mm |
13 | Weight of Machine | 2500KGS (40HQ*1) |
