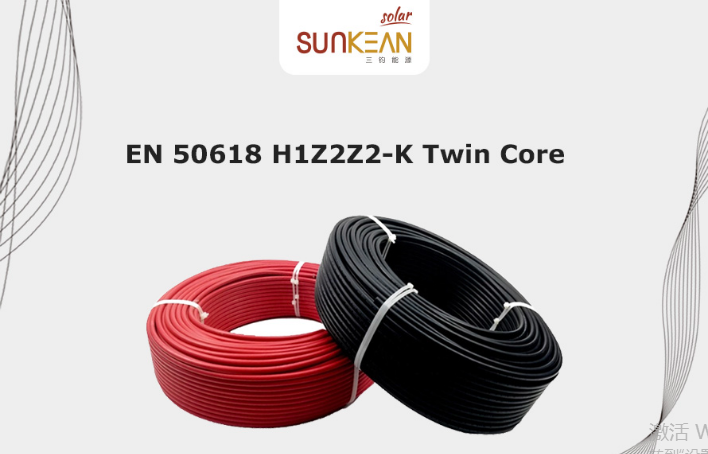

EN50618 H1Z2Z2-K Twin Core Solar Cable
EN50618 H1Z2Z2-k solar panel junction box wire for the solar panels can be customized according to customer needs.

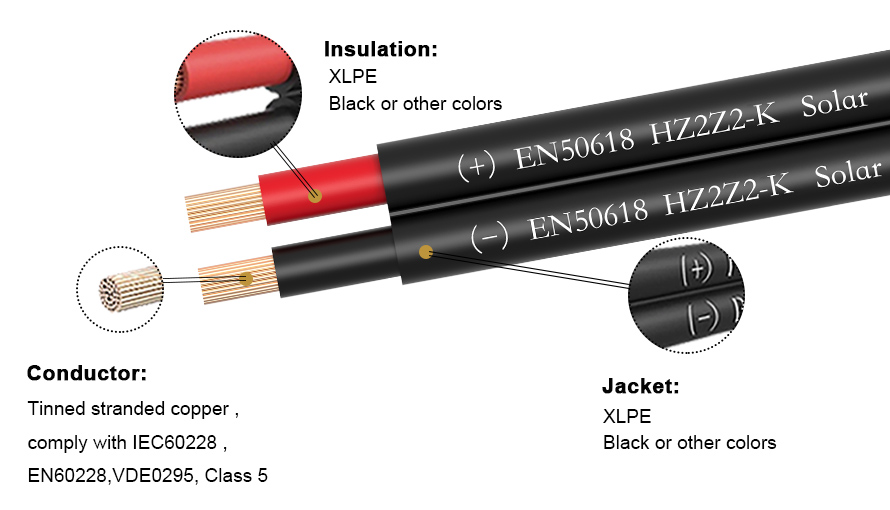

Product Description
Cable | Cross Section (mm2） | Construction (No./mm) | Conductor Stranded O.D. (mm) | Conductor resistance Max (?/km) | Cable O.D. (mm) | Max.DC Voltage (V) |
H1Z2Z2-K Twin core EN50618 | 2*4.0 | 56/0.285 | 2.46 | 5.09 | 5.50*11.20 | 1500 |
| 2*6.0 | 84/0.285 | 3.02 | 3.39 | 6.10*12.50 |
Product Characteristics
| Voltage Rating(Uo/U) | DC:1500V | Minimum Bending Radius | ?≤12mm 4 x overall diameter ?>12mm 10 x overall diameter |
Test Voltage | 6500V AC | Temperature Rating | Rated: -40°C to +90°C Max.conductor temp: +120°C Short Circuit: +250°C |
| Testing Standard | Smoke Density Test : transmittance≥60% EN50618 Cold Bending Test : -40°C±2°C no crack EN60811-504 |
Product Advantages
Electron-beam cross-linked compounds
UV, ozone, and hydrolysis resistant
High temperature resistant, the materials do not melt or flow
Good cold flexibility
Very long service life > 25 years at 90°C
Compatible to all popular connectors

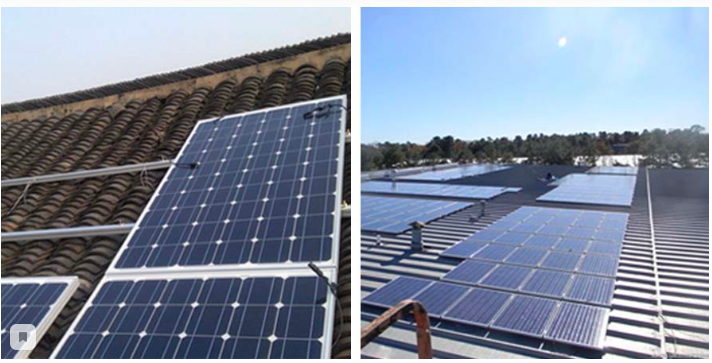

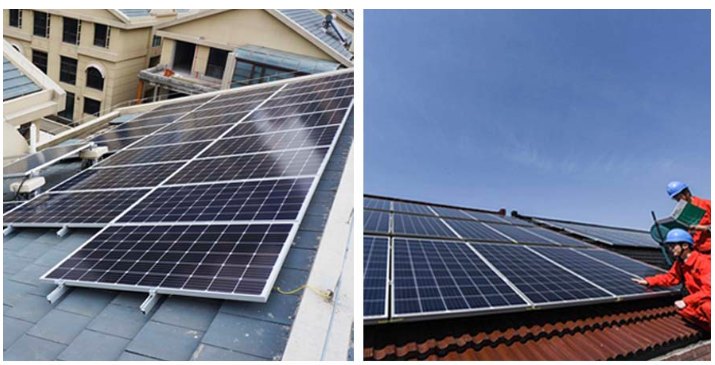

Product Applications
EN50618 H1Z2Z2-K Single Core Solar Cable is used in photovoltaic power generation and solar system interconnects solar modules, and electrical components in the photovoltaic system, suitable for outdoor extreme environments, UV, ozone, hydrolysis resistant.

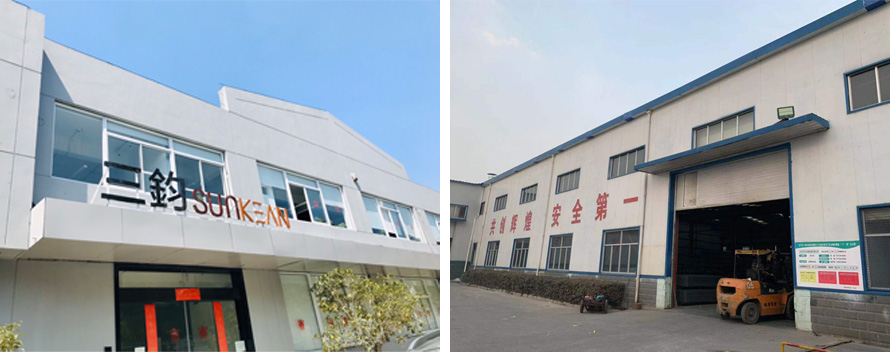

Company Profile
SUNKEAN is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables, PV connectors, fence, inverters, etc solar products.
SUNKEAN is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customer’s demands. We make our effort for innovations and breakthroughs. We actively integrate high-quality resources to provide you much more professional solutions. We strive to deliver the cleanest and most abundant energy to you and make you more economic and social benefits.
