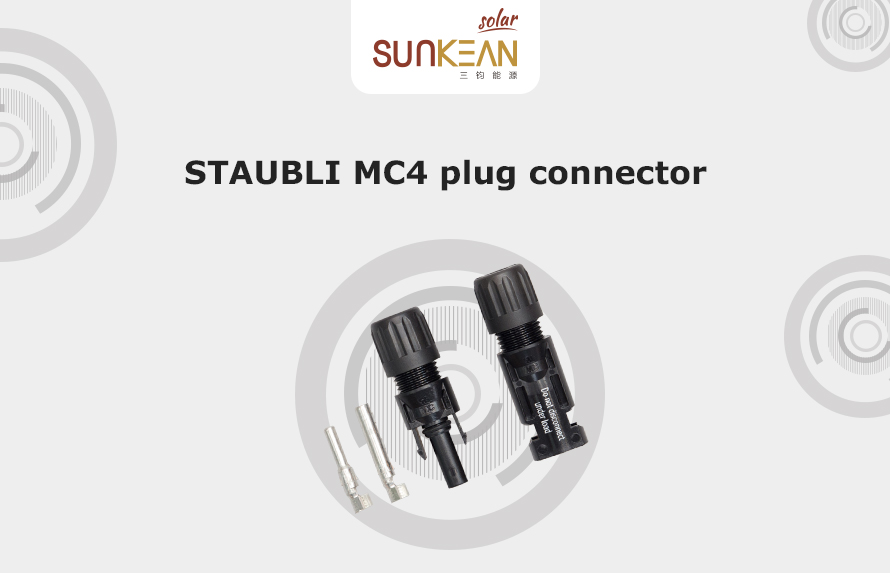

STAUBLI MC4 plug PV connector
Successfully connected to the global 150GW photovoltaic power station; The original industry standard; Waterproof IP68 rating; Owns TUV/UL/JET/CSA/CQC certification.
Product characteristics
| Connector system | ?4 mm | The contact resistance of plug connectors | ≤0.25m? |
| Rated Voltage | 1000V DC (IEC 62852) 1500V DC (2Pfg 2330) 1500V DC (UL) | Safety class | 1000v DC:II 1500V DC: 0 |
| Rated Current | 22.5A (2.5mm2）39A(4mm2/6mm2） 45A(10mm2) 30A (14AWG/12AWG/10AWG) 50A (8AWG) | Contact system | MULTILAM |
Rated impulse voltage | 12kV (1000V DC TüV) 16kV (1500V DC TüV) | Type of termination | Crimping |
| Ambient temp range | -40°C~+85°C(TüV) -40°C~+75°C (UL) | Contact material | copper ,tin-plated |
| Upper limiting temp | 105°C(TüV) | Insulation material | PC/PA |
| Degree of protection mated unmated | IP65,IP68 (1h/1m) IP2X | Flame class | UL94-V0 |
Overvoltage category/ Pollution degree | CATIII/3 | Certification |

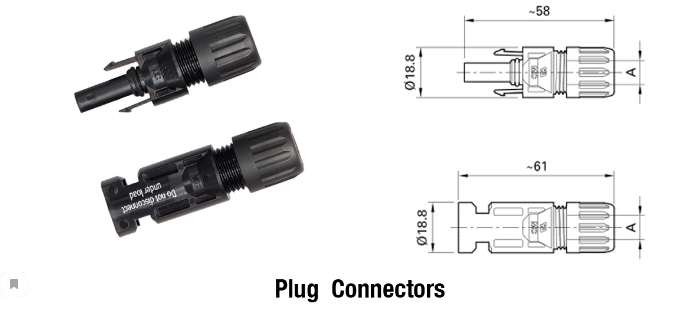

Product Drawings
Product Advantages
Outstanding reliability
Consistently low contact resistance
Low service cost & reduced downtime
Elimination of risks for hotspots & fire
Low power losses
Lifetime > 25 years
TüV & UL double approval
Applicable for harsh environment outside
Use male & female self-block, easy to lock & unlock

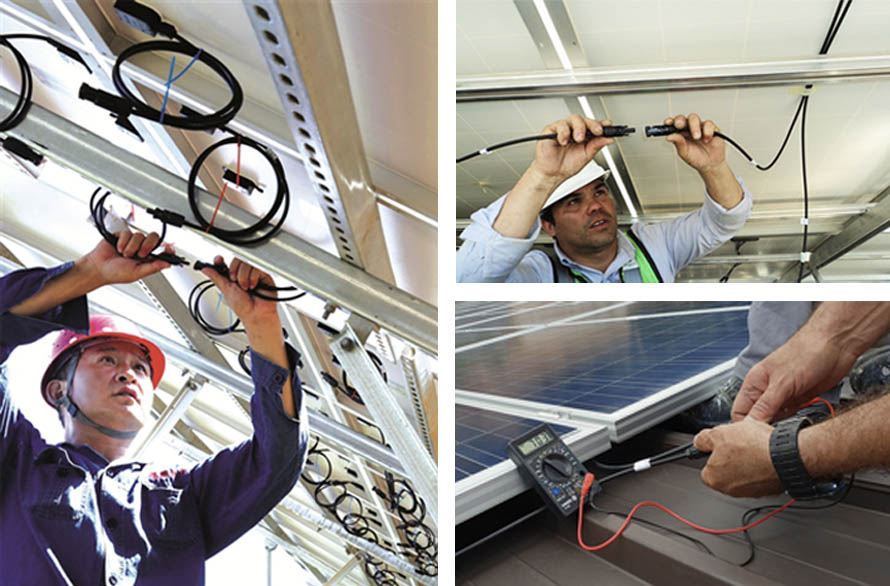

Product Applications
