DC1500V Solar branch connector wiring solar panels in series
TUV approved branch connector
Compatible with MC4 connector
Low contact resistance
IP68 protection class
Easy to install
Stable connection & low maintenance cost
Suitable for outdoor harsh environment
Product Specifications

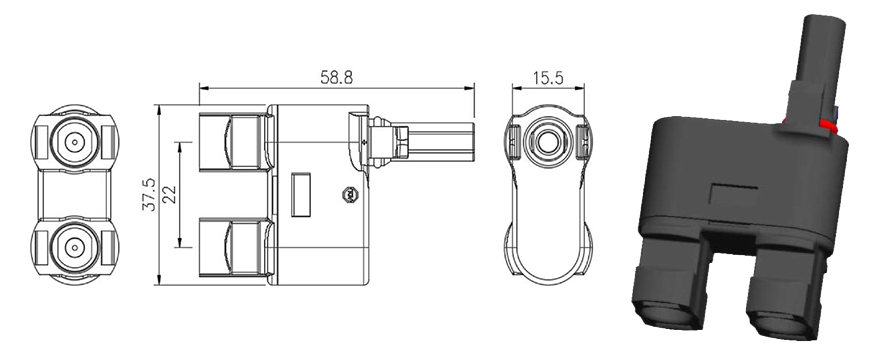

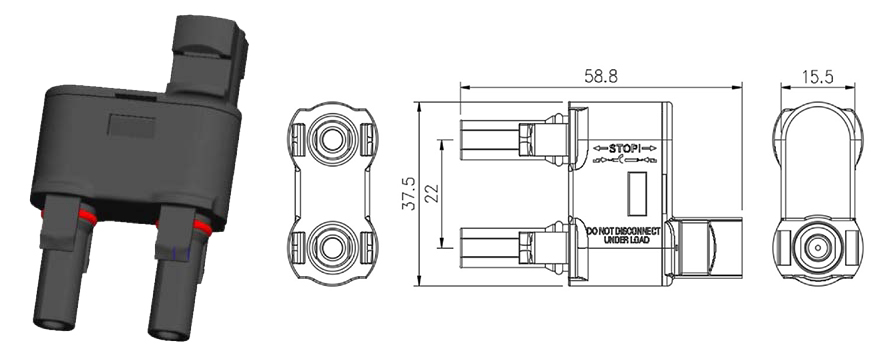

Solar Branch T2 connector 1500VDC
Insulation material | PPE | Safety degree | II |
Rated current | 35A | Flame class | UL94-V0 |
| Rated impulse voltage | 12KV | Installation type | (F1)Outdoor, UV resistant (F1) |
Rated voltage | 1500V DC | Ambient temperature | -40°C-+85°C (IEC) |
| Test voltage | 8KV (50Hz, 1min) | Upper limiting temperature | 110°C (IEC) |
| Contact resistance | ≤0.35mΩ | Overvoltage category/Pollution degree | CATIII/2 |
| Contact material | Copper, Tin plated | Rated Impulse voltage | 16KV |
Degree of protection | IP68 | Regulatory approval | TUV/CE (IEC62852:2014) |

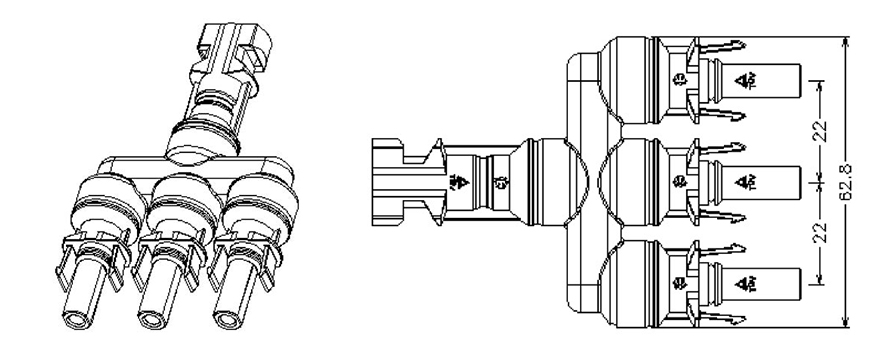

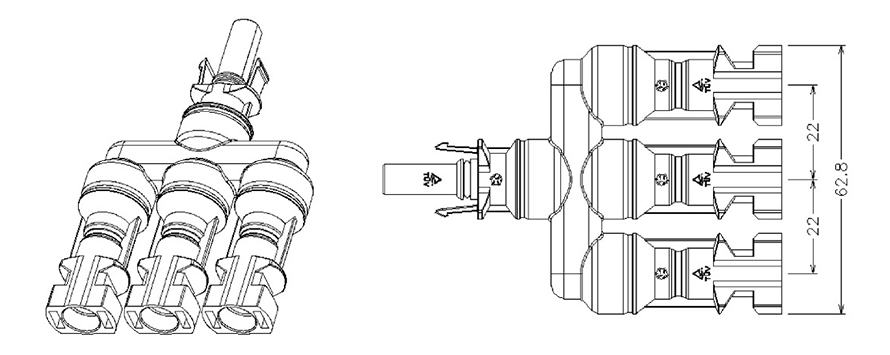

Solar Branch T3 connector 1500VDC
Insulation material | PPE | Safety degree | II |
Rated current | 35A | Flame class | UL94-V0 |
| Rated impulse voltage | 12KV | Installation type | (F1)Outdoor, UV resistant (F1) |
| Rated voltage | 1500V DC | Ambient temperature | -40°C-+85°C (IEC) |
| Test voltage | 8KV (50Hz, 1min) | Upper limiting temperature | 110°C (IEC) |
| Contact resistance | ≤0.25mΩ | Overvoltage category/Pollution degree | CATIII/2 |
| Contact material | Copper, Tin plated | Rated Impulse voltage | 16KV |
Degree of protection | IP68 | Regulatory approval | TUV/CE (IEC62852:2014) |

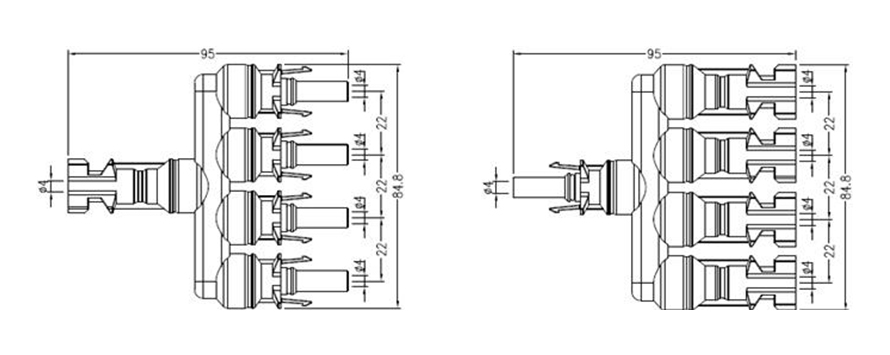

Insulation material | PPE | Safety degree | II |
Rated current | 35A | Flame class | UL94-V0 |
| Rated impulse voltage | 12KV | Installation type | (F1)Outdoor, UV resistant (F1) |
| Rated voltage | 1500V DC | Ambient temperature | -40°C-+85°C (IEC) |
| Test voltage | 8KV (50Hz, 1min) | Upper limiting temperature | 110°C (IEC) |
| Contact resistance | ≤0.35mΩ | Overvoltage category/Pollution degree | CATIII/2 |
| Contact material | Copper, Tin plated | Rated Impulse voltage | 16KV |
Degree of protection | IP68 | Regulatory approval | TUV/CE (IEC62852:2014) |

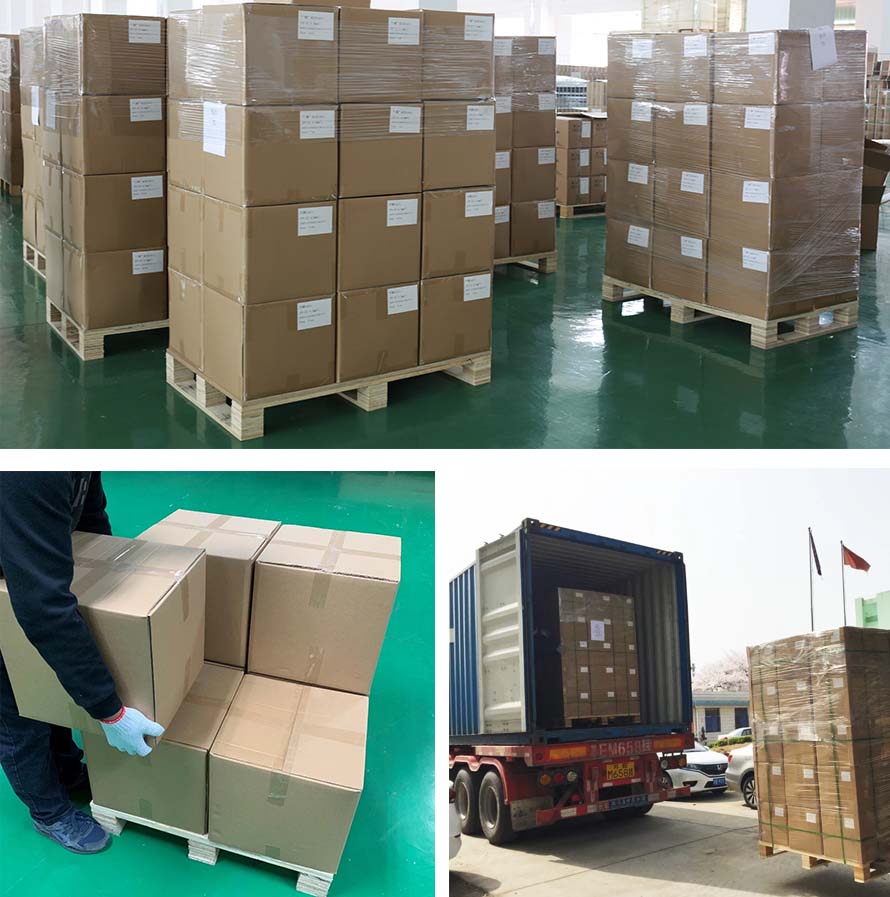

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
