Solar PV wiring harnesses for solar panel wiring
The harness can be customized, different solutions meet the requirements of pre-cut or pre-terminated segments of PV wire for connecting modules to string combiners & inverters.
Product Specifications
Insulation material | PPE/TPE |
Rated current | 30A( (without fuse) |
| Rated voltage | 1500 (IEC) / 600V (UL) |
| Test voltage | 6500V (50Hz,1min) |
| Typical contact resistance | ＜5 mΩ |
| Contact Material | Copper, Tin plated |
| Degree of protection | IP68 |
| Safety degree | II |
| Overvoltage category / Pollution degree | CATIII / 2 |
| Flame class | UL94-V0 |
| Ambient temperature range | -40℃...+85℃ (IEC) |
| Suitable cable cross-sections | 2.5mm2 / 4mm2 / 6mm2 |
| Temperature limits | 110℃ (IEC) |
*Remark: Can be made according to your requirements
Product Details

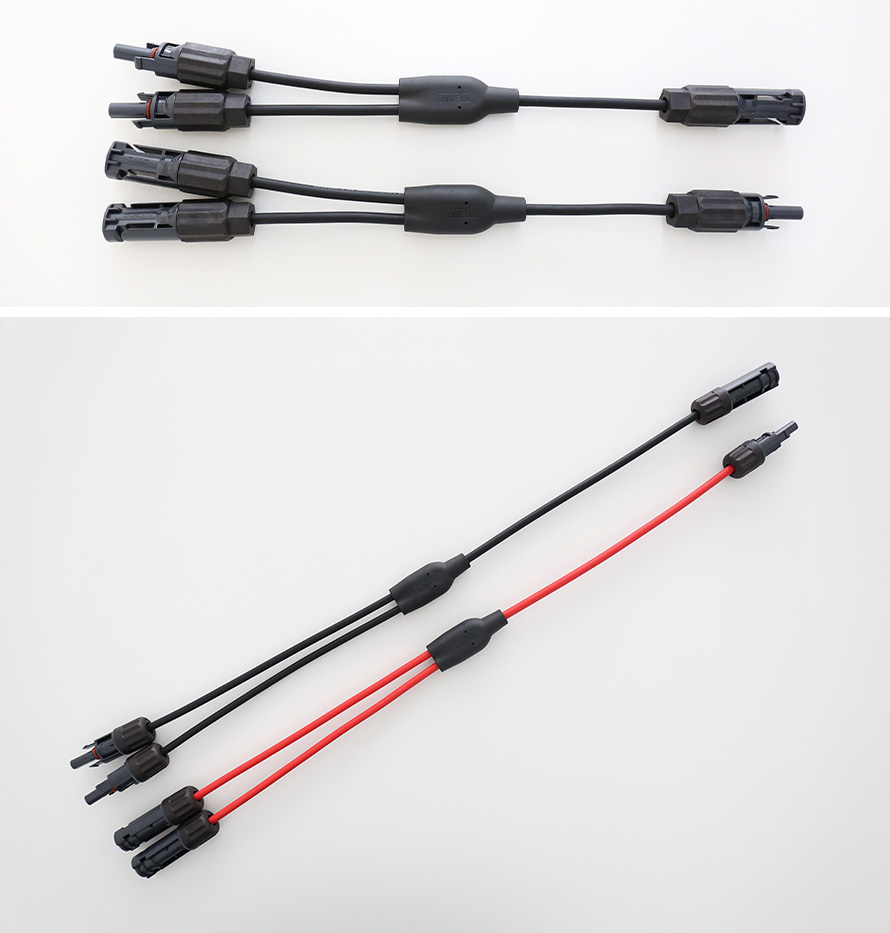

2in1 Type

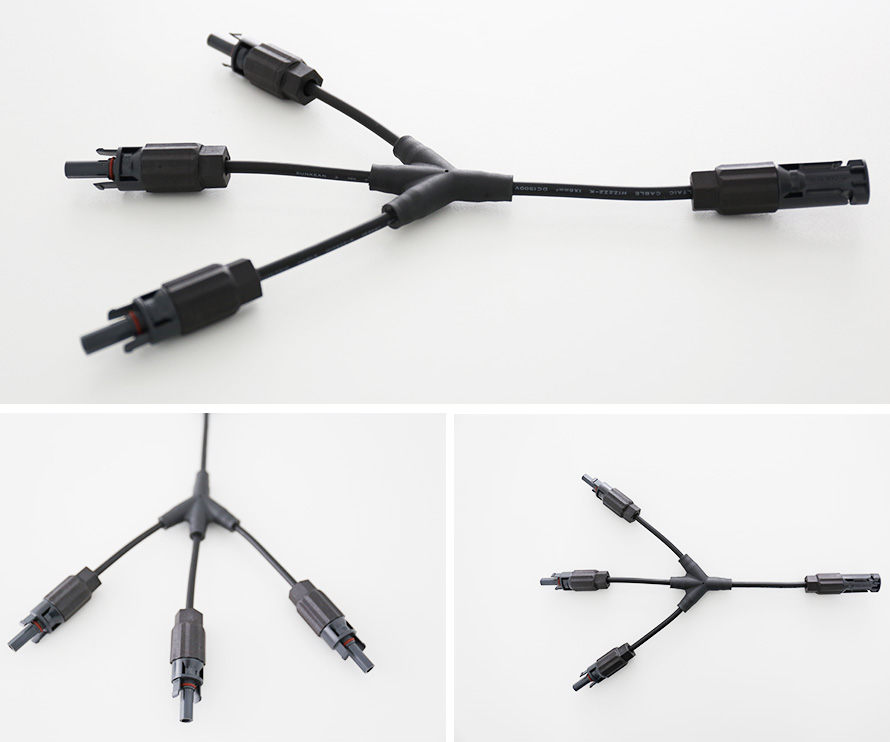

3in1 Type

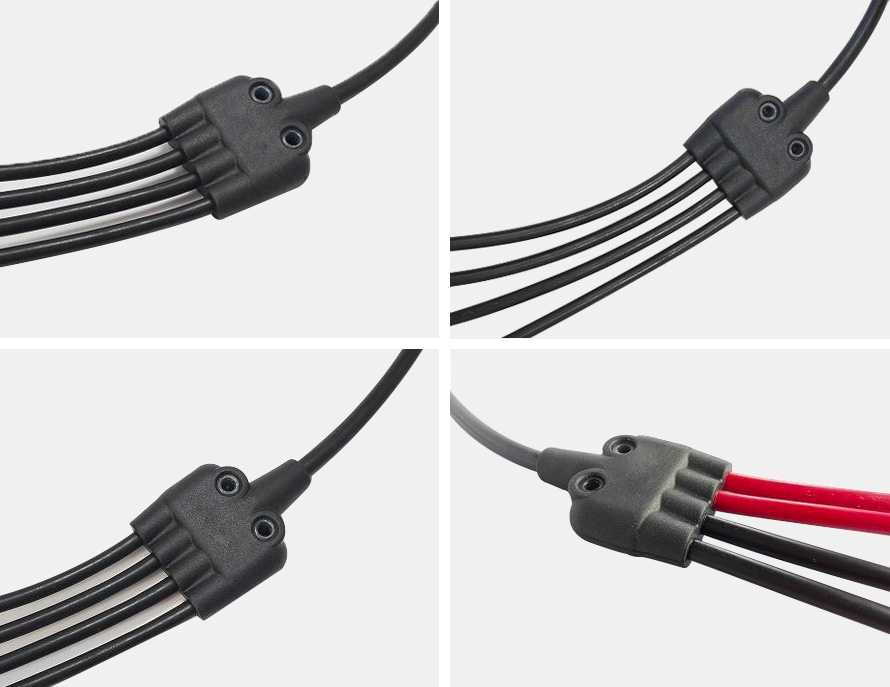

4in1 Type

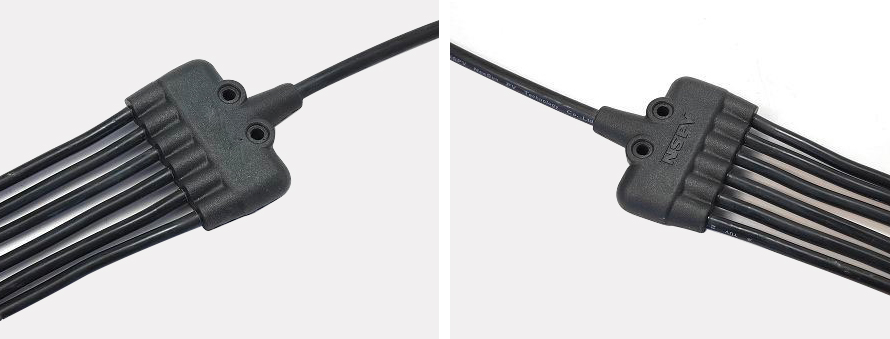

6in1 Type

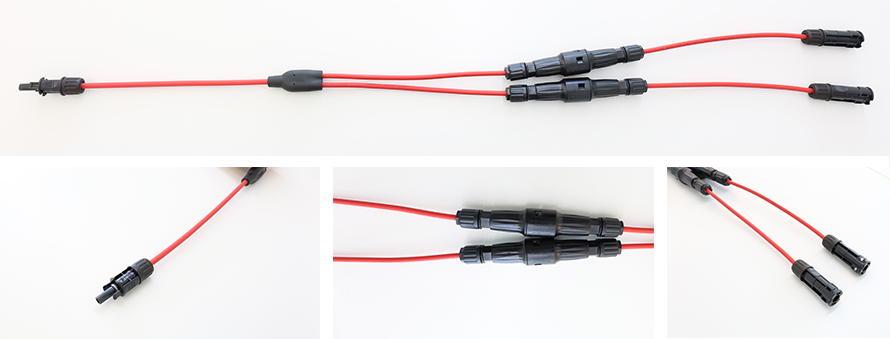

Inline fuse connector

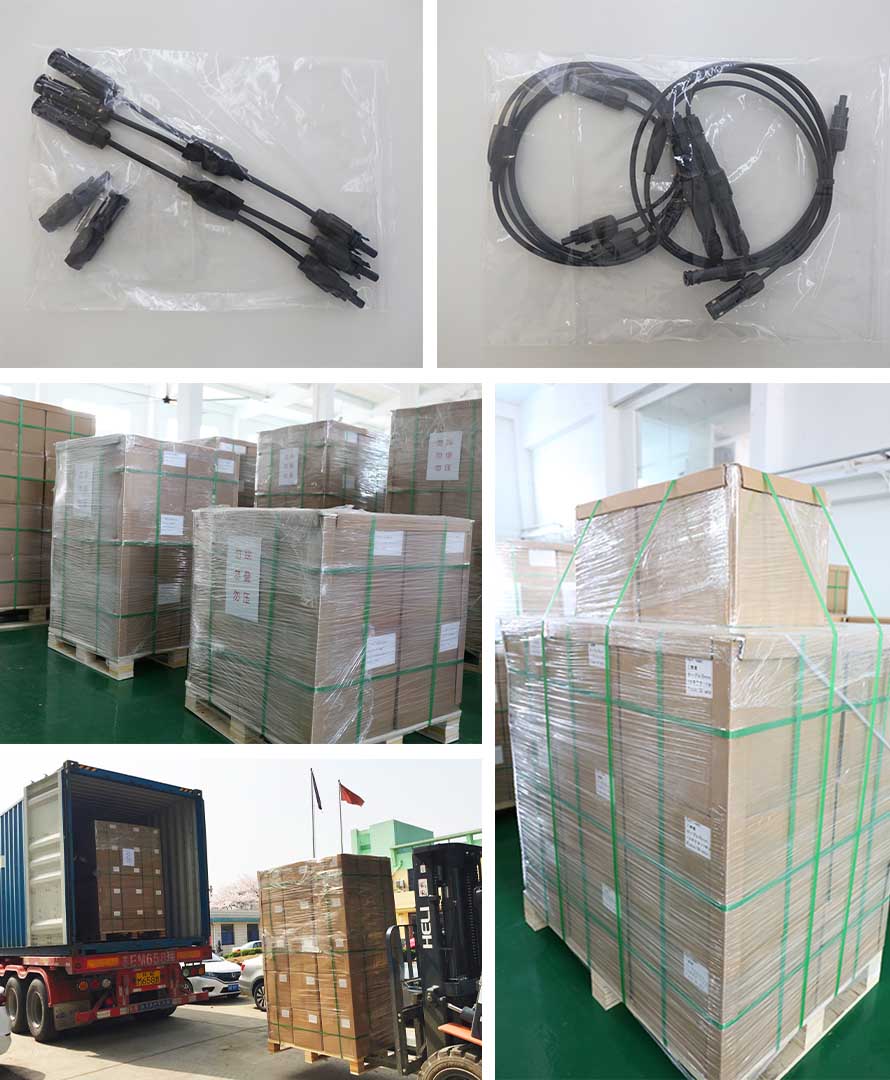

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
