4G Single Phase 6kw PV Grid Tie Inverter
6kW Single phase series string inverter's efficiency has improved dramatically. SKE-1P（6kW）-4G is suitable for the installation of a single-phase input PV system of residential and adopt ultra-high switching frequency, ultra-thin single four-layer board design can greatly reduce the risk caused by the connector.
Product Description
| Technical Specifications | |||
| Model Name | SKE-1P6K-4G | ||
| Input DC | |||
| Recommended max. PV power | 6.6kW | Max. input current | 11A/11A |
| Max. input voltage | 600V | Max. short circuit current | 17.2A/17.2A |
Rated voltage | 3300V | MPPT number | 2 |
| Start-up voltage | 120V | Max. input strings number | 2 |
| MPPT voltage range | 90-520V | ||
| Output AC | |||
| Rated output power | 6kW | Rated grid output current | 27.3A |
| Max. apparent output power | 6kVA | Max. output current | 27.3A |
| Max. output power | 6kW | Power Factor | >0.99 (0.8 leading - 0.8 lagging) |
| Rated grid voltage | 1/N/PE, 220/230V | THD | <3% |
| Rated grid frequency | 50/60Hz | ||
| Efficiency | |||
| Max. efficiency | 98.1% | EU efficiency | 97.3% |
| Protection | |||
| DC reverse-polarity protection | Yes | Grid monitoring | Yes |
Short circuit protection | Yes | Anti-islanding protection | Yes |
Output over current protection | Yes | Temperature protection | Yes |
Surge protection | Yes | Integrated DC switch | Optional |
| General data | |||
Dimensions (W*H*D) | 310*543*160 mm | Ingress protection | IP65 |
Weight | 11.5kg | Cooling concept | Natural convection |
| Topology | Transformerless | Max. operation altitude | 4000m |
Self-consumption | <1W (night) | Grid connection standard | VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727 |
Operating ambient temperature range | -25 ~ +60°C | Safety/EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3 |
Relative humidity | 0-100% | ||
Features | |||

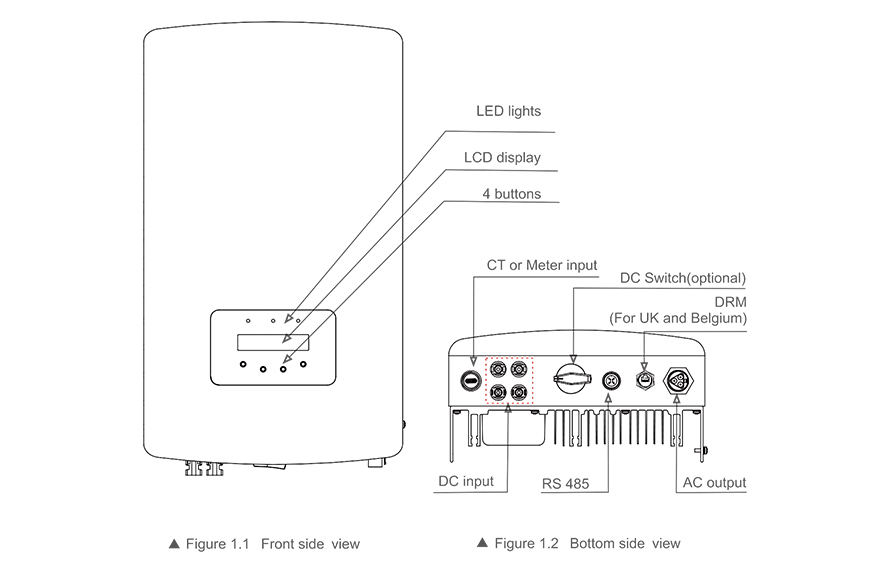

DC connection | MC4 connector | Display | LCD |
AC connection | Quick connection plug | Communication | RS485, Optional: Wi-Fi, GPRS |
Product Features
Max. efficiency 98.1%
Super high-frequency switching technology
Wide voltage range and low startup voltage
2 MPPT design with precise MPPT algorithm
Integrated Export Power Manager (EPM)
Compact and lightweight
Friendly and adaptable connection to the grid

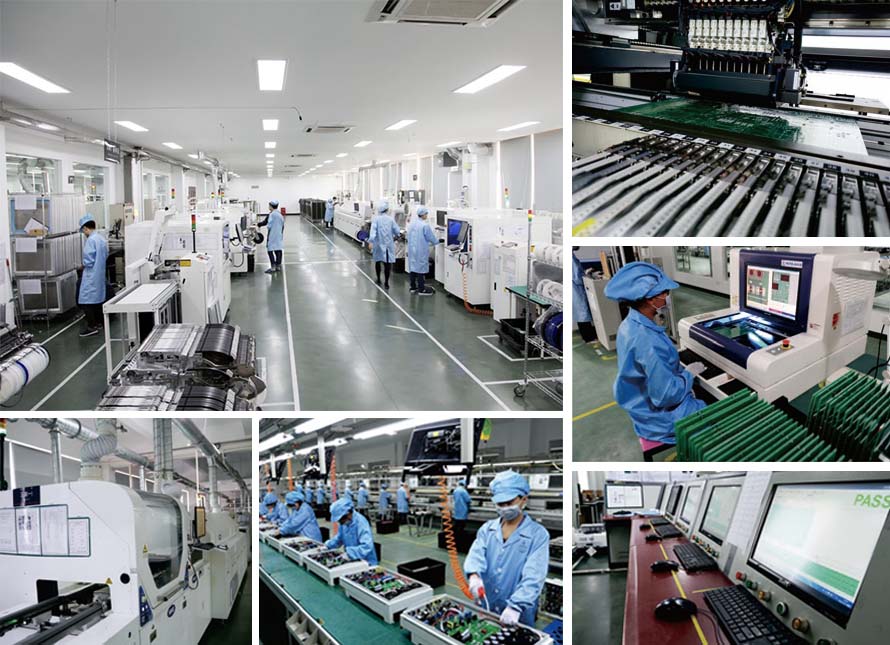

Produce Line
