Mask MachineDuckbill foldable mask machine
L/CT/T
I. Overview of Folding Mask Machine

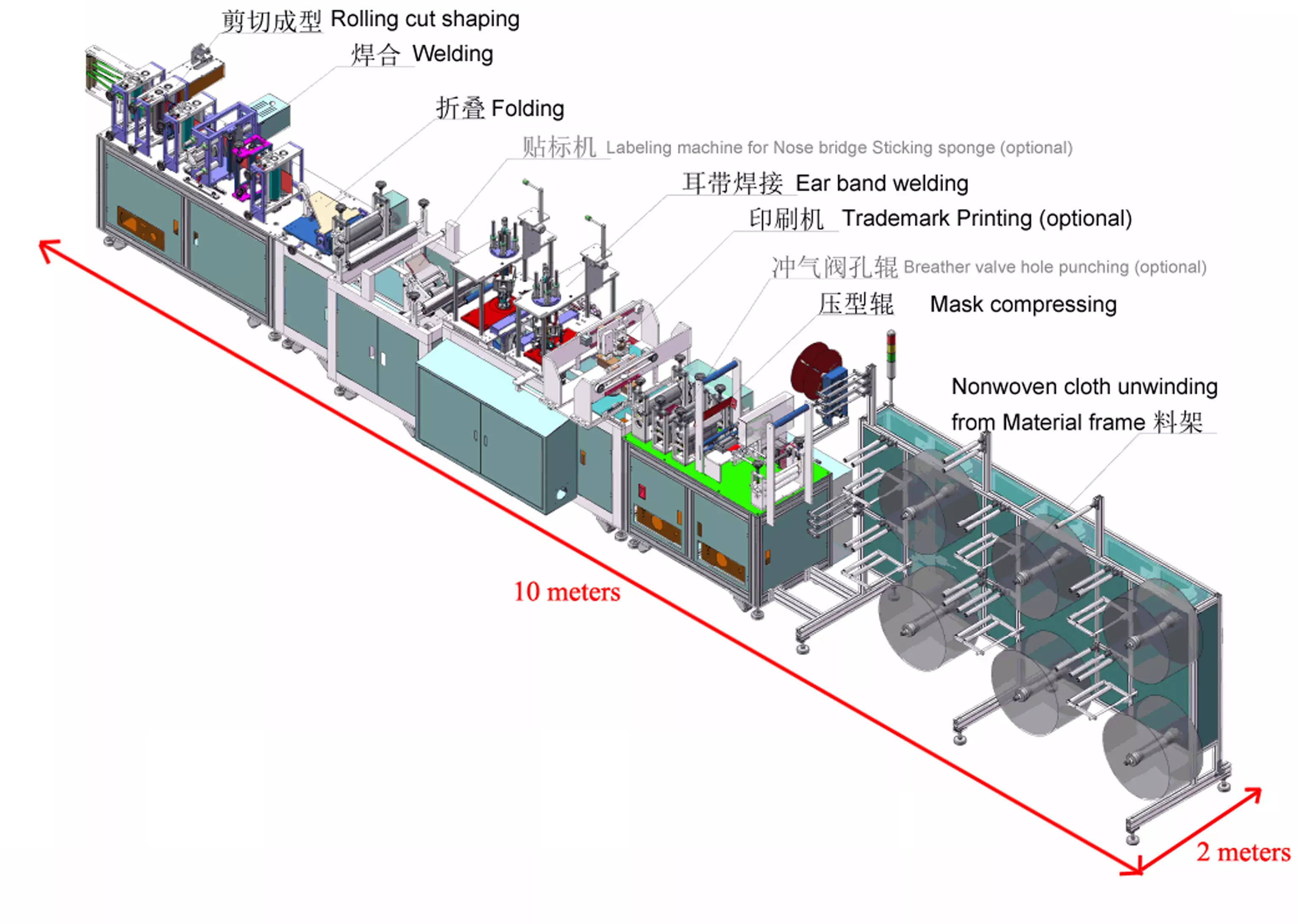

JWN3011 Fully Automatic N95 Duckbill Folding Mask Machine is an efficient mask production line equipment, which realizes the full automatic production from non-woven materials to finished masks. It is mainly composed of raw material racks, welding and pressing, ear band welding and folding Welding and roll cutting form five parts. In addition to the above basic components, we also provide optional units such as trademark printing, breathing valve punching, and nose bridge cotton. Fully automated control for the production of N95 duckbill foldable masks.
The equipment adopts the latest ultrasonic welding technology and is controlled by PLC. It has the characteristics of advanced technology, reasonable structure, reliable operation and convenient operation.
2. Production process
Unwoven fabric unwinding
| Material name | Technical specification and index |
| Material for running | The weight of outer non-woven fabric is 20-50g; The weight of melt blown cloth is 50g; Inner non-woven fabric weight 20-50g; The coil diameter is φ 600mm, the inner diameter is φ 76mm, and the width is 260mm. |
| Material for ear belt | Dia. φ 3-4mm round or flat ear belt |
| Material for nose bridge | 5mm wide and 0.5mm thick, winding type |
4. Capacity estimation
| Project name | Technical index |
| Rhythm | 33 pieces / minute |
| Overall production capacity | 1980 pieces / hour |
| Material for nose bridge | 5mm wide and 0.5mm thick, winding type |
5. Equipment parameters
| Equipment size | 9665mm (L) × 1489.06mm (W) × 2150mm (H) |
| Appearance color | International standard Pantone 420 gray |
| Equipment weight | ≤ 5000kg, ground bearing ≤ 500kg /m3 |
| Working power supply | Equipment 220V 50-60Hz rated power: 8kw |
| Compressed air | 0.7-0.8mp flow rate: 100l-150l / min |
| Use environment: Temperature | Temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than 100000) |
| Production efficiency | 33 PCS / min |
| Fold symmetry | +/-2mm |
| Equipment failure rate | 2% (refers to the failure caused by the equipment itself) |
6. Equipment installation dimension and outline unit: mm (see foundation drawing for equipment installation dimension)
