1812-50 GPD RO membrane- Product Details

1812-50 GPD RO membrane

ID:20102626312

Manufacturing & Processing Machinery Water treatment & Environment

FOB Price:US$ 4.000 / Piece(s)

MOQ:100.00 Piece(s)

Product Keywords:

REVERSE OSMOSIS MEMBRANEresidential ro membrane50GPD ro membraneRO membrane filter 50gpd roRO membrane1812-50membrane RO 50 gpd

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery > Water treatment & Environment

Trademark

WSD

Product Package

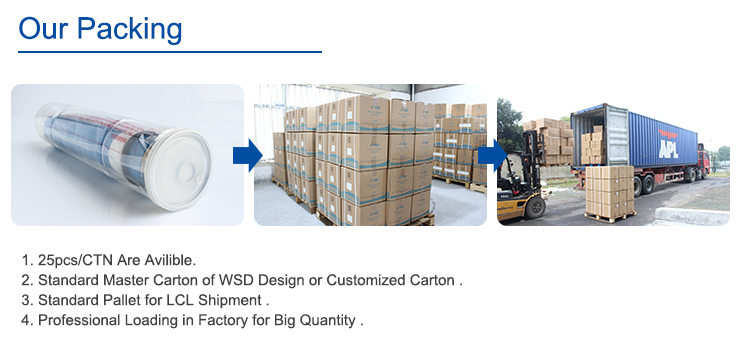

30*30*37.5cm ,25pcs/carton

Specification

C-MAT 1812-50G

Place of Origin

SUZHOU,JIANGSU,CHINA

Port

SHANGHAI

Product Description

Specification

Residential Reverse Osmosis Specification
Model	Stable Rejection Rate	Minimum Rejection Rate	Average Permeated Flow
C-MAT1807-50G	98%	96%	50
C-MAT1808-50G	98%	96%	50
C-MAT1809-50G	98%	96%	50
C-MAT1810-50G	98%	96%	50
C-MAT1810-75G	98%	96%	75
C-MAT1810-80G	98%	96%	80
C-MAT1812-50G	98%	96%	50
C-MAT1812-75G	98%	96%	75
C-MAT1812-80G	98%	96%	80
C-MAT1812-100G	98%	96%	100

Testing Conditions Operation Limits and Conditions

Inlet Pressure ------------------------- 60Psi(0.41MPa) Max. Working Pressure --- 125Psi(0.86MPa)

Inlet Temperature ---------------------- 25℃ Max. Inflow Temperature ---------- 45℃

Concentration of Testing Solution ---- 250PPm SDI Max. Inflow SDI ----------------- 5

Inlet PH value ------------------------- -- 7.5-8 Residual Chlorine ----------------- < 0.1PPm

Recovery Rate -------------------------- 15% PH Range of Feedwater ----------- 3-10

PH Range of Cleaning ------------- 2-12

Max. Pressure Drop ---------10Psi(0.07MPa)

1.Permeate flow for each RO membrane element would be 15% floating up and down according to the feed water under the standard test condition.
2.Above data is subject to a continuous test running of 30 minutes.
3.Able to provide personalized, customized products by request.

Model

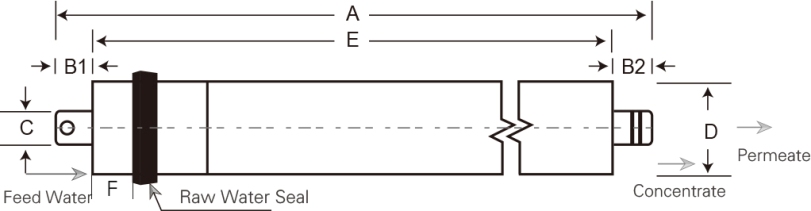

Model	Overall Dimension
Model	A	B1	B2	C	D	E	F
C-MAT1807-50G	-----	-----	0.91(23)	0.67(17)	1.73±0.02(45±0.5)	6.1(155)	1.18(30)
C-MAT1808-50G	-----	-----	0.91(23)	0.67(17)	1.73±0.02(45±0.5)	7.09(180)	1.18(30)
C-MAT1809-50G	-----	-----	0.91(23)	0.67(17)	1.73±0.02(45±0.5)	8.15(207)	1.18(30)
C-MAT1810-50G	10.04(255)	0.59(15)	0.91(23)	0.67(17)	1.73±0.02(45±0.5)	8.54(217)	1.79(20)
C-MAT1810-75G	10.04(255)	0.59(15)	0.91(23)	0.67(17)	1.73±0.02(45±0.5)	8.54(217)	0.79(20)
C-MAT1810-80G	10.04(255)	0.59(15)	0.91(23)	0.67(17)	1.73±0.02(45±0.5)	8.54(217)	0.79(20)
C-MAT1812-50G	11.74(298)	1.46(37)	0.83(21)	0.67(17)	1.73±0.02(45±0.5)	9.4(240)	0.79(20)
C-MAT1812-75G	11.74(298)	0.83(21)	0.83(21)	0.67(17)	1.73±0.02(45±0.5)	10.1(256)	0.79(20)
C-MAT1812-80G	11.74(298)	0.83(21)	0.83(21)	0.67(17)	1.73±0.02(45±0.5)	10.1(256)	0.79(20)
C-MAT1812-100G	11.74(298)	0.59(15)	0.83(21)	0.67(17)	1.73±0.02(45±0.5)	10.3(262)	0.79(20)

Customization

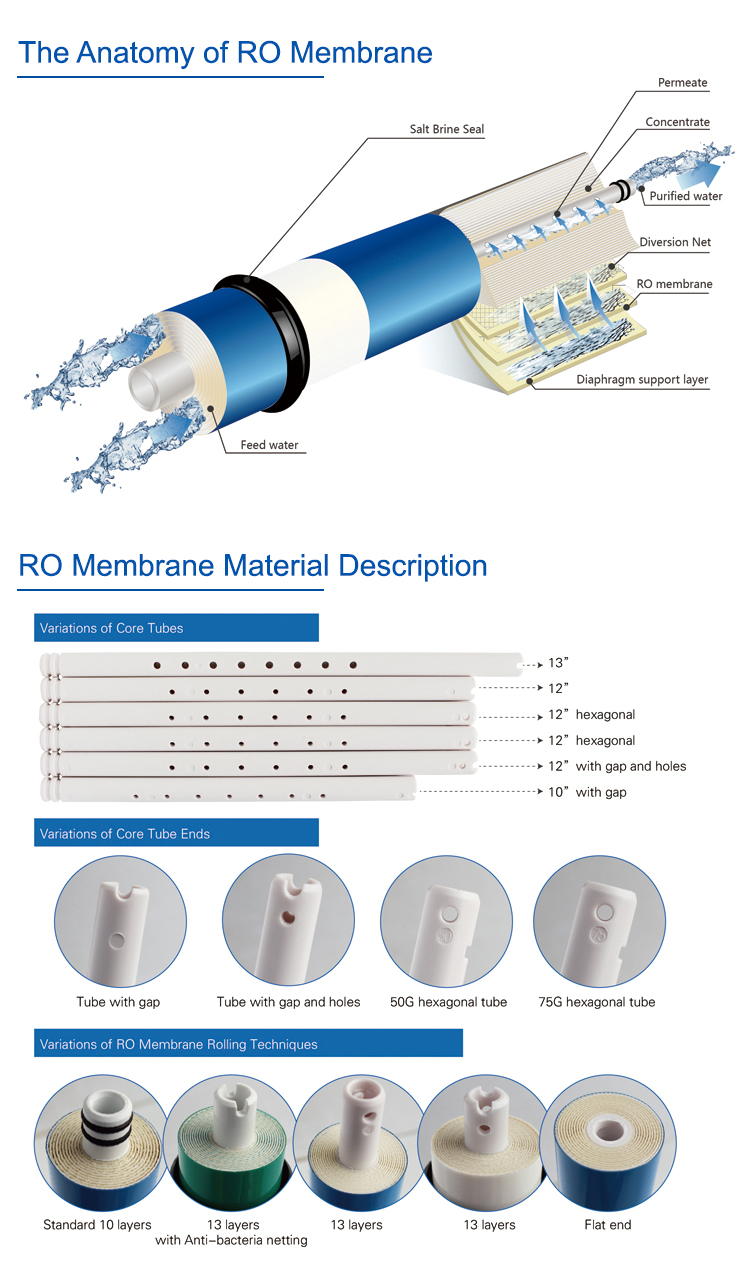

_01

FAQ

1.Q:Are you manufacturer ?

A:Yes, we are the manufacturer with continuous and improved R&D, Production, Quality Check and service supply.

2.Q:What’s your main products ?

A:Our products range from residential, commercial, and industrial membrane elements as well as quick-connect filters, PET filter housings, membrane housings, etc.

3.Q:Can I get your price list ?
A: Yes, sure. In order to send you our available offered price, please choose the products and let us know the product model and requirement in detail.

4.Q: What’s your after-sales policy( The terms of guarantee) ?
A: Different products, different guarantee policy.The time of quality guarantee: 1-3 year.

5. Q: What’s your payment policy?

A: Samples(Less than 4000USD): 100% in advance via T/T or West UnionFormal order: 30% payment in advance via T/T as deposit payment and balance payment will be done against the Copy of B/L L/C payment is also available.

6.Q: Can I get your products with our logo and design ?

A: Most of products are OEM or ODM with your logo and design.

7. Q: What is the MOQ of this RO Membrane?

A: This RO Membrane MOQ is 1000pcs.

8. Q: What is the lead time?

A: Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 10-20 days after receive your payment based on MOQ:1000PCS.

9. Q: Can you offer RO Membrane sample to check the quality?

A: We offer FREE SAMPLES based on freight collect.

10. Q: What is the delivery way? How many days will RO Membrane arrive us?

A: We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.

Or by Sea to the seaport, Minium CBM requirement: 1 CBM, around 30days to arrive.

11. Q: Whatfs the warranty you can offer? How about the after sales service?

A: 1 year warranty, lifetime technical support.

We have professional after-sales team, if any question, Online support are also provided in after-sale service.
