L/CT/TD/P

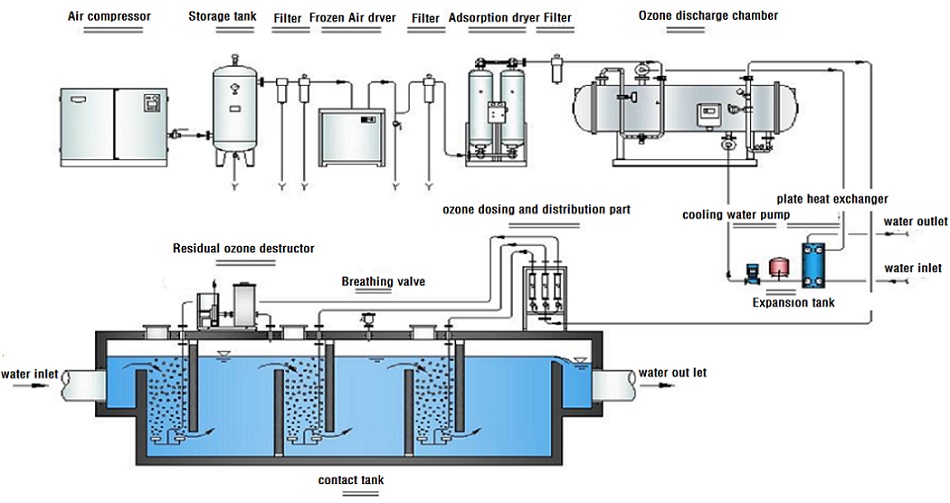

ir Source Ozone Generator Technical Parameters
Model | Ozone production | Feed gas flow | Ozone Concentration | Cooling water flow | Power consumption | Electronic Control Cabinet Dimension(mm) | Ozone discharge chamber Dimension (mm) |
| kg/h | Nm3/h | wt% | m3/h | Kwh/kgO3 | W D H | W D H | |
| POZBA-1K | 1 | 26-39 | 2-3 | 3-4 | 14-17 | 800x800x1800 | 900x800x1800 |
| POZBA-2K | 2 | 52-77 | 2-3 | 6-8 | 14-17 | 2000x900x1800 | 2100x900x1800 |
| POZBA-3K | 3 | 77-115 | 2-3 | 9-12 | 14-17 | 2000x900x1800 | 2100x1000x1900 |
| POZBA-4K | 4 | 105-155 | 2-3 | 12-16 | 14-17 | 2200x1000x2000 | 2100x1100x2000 |
| POZBA-5K | 5 | 130-190 | 2-3 | 15-20 | 14-17 | 3300x1100x2040 | 2200x1200x2100 |
| POZBA-6K | 6 | 155-230 | 2-3 | 18-24 | 14-17 | 3300x1100x2040 | 2200x1200x2100 |
| POZBA-8K | 8 | 205-310 | 2-3 | 24-32 | 14-17 | 3700x1200x2040 | 3800x1000x2100 |
| POZBA-10K | 10 | 260-390 | 2-3 | 30-40 | 14-17 | 4000x1200x2140 | 3800x1200x2100 |
| POZBA-15K | 15 | 390-580 | 2-3 | 45-60 | 14-17 | 4500x1200x2250 | 3900x1200x2100 |
| POZBA-20K | 20 | 515-755 | 2-3 | 60-80 | 14-17 | 5600x1200x2350 | 3900x1300x2300 |
| POZBA-25K | 25 | 640-960 | 2-3 | 75-100 | 14-17 | 5600x1200x2350 | 3900x1400x2400 |
| POZBA-30K | 30 | 775-1160 | 2-3 | 100-120 | 14-17 | 6000x1200x2350 | 3900x1500x2500 |
| POZBA-40K | 40 | 1030-1550 | 2-3 | 120-160 | 14-17 | 6200x1600x2250 | 4000x1800x2700 |
| POZBA-50K | 50 | 1290-2320 | 2-3 | 150-200 | 14-17 | 8500x1600x2350 | 4000x2000x2850 |

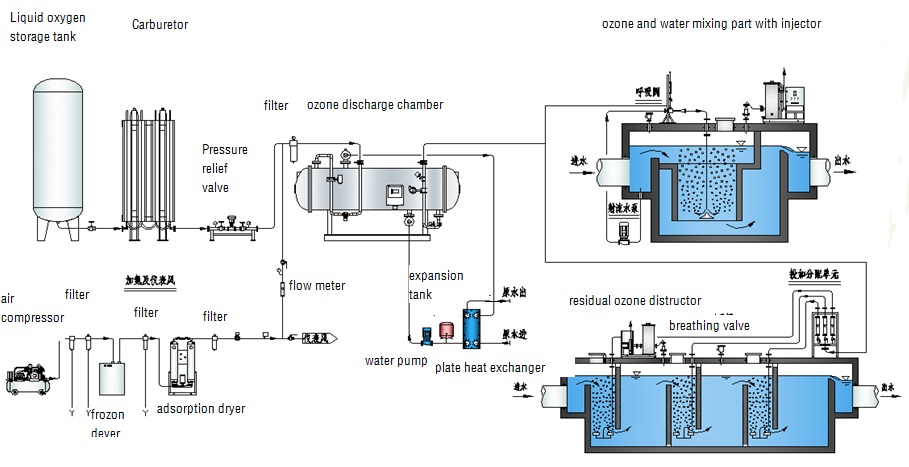

Oxygen Source Ozone Generator Technical Parameters
Model | Ozone production | Feed gas flow | Concentration | Cooling water flow | Power consumption | Electronic Control Cabinet Deimension(mm) | Ozone discharge chamber Dimension (mm) |
| kg/h | Nm3/h | wt% | m3/h | Kwh/kgO3 | W D H | W D H | |
| POZBO-1K | 1 | 7-9 | 8-10 | 1.5-2 | 14-17 | 700x800x1800 | 800x800x1800 |
| POZBO-2K | 2 | 14-18 | 8-10 | 3-4 | 14-17 | 800x800x1800 | 900x800x1800 |
| POZBO-3K | 3 | 21-26 | 8-10 | 4.5-6 | 14-17 | 1200x1000x1900 | 800x1000x1900 |
| POZBO-4K | 4 | 28-39 | 8-10 | 6-8 | 14-17 | 2000x900x1800 | 2100x900x1800 |
| POZBO-5K | 5 | 34-43 | 8-10 | 7.5-10 | 14-17 | 2000x900x1800 | 2100x1000x1900 |
| POZBO-6K | 6 | 41-52 | 8-10 | 9-12 | 14-17 | 2000x900x1800 | 2100x1000x1900 |
| POZBO-8K | 8 | 55-69 | 8-10 | 12-16 | 14-17 | 2200x1000x2000 | 2100x1100x2000 |
| POZBO-10K | 10 | 68-86 | 8-10 | 15-20 | 14-17 | 3300x1100x2040 | 2200x1200x2100 |
| POZBO-15K | 15 | 102-128 | 8-10 | 17.5-30 | 14-17 | 3700x1200x2040 | 3800x1000x2100 |
| POZBO-20K | 20 | 136-171 | 8-10 | 30-40 | 14-17 | 4000x1200x2140 | 3800x1100x2100 |
| POZBO-25K | 25 | 170-210 | 8-10 | 36-50 | 14-17 | 4000x1200x2140 | 3800x1200x2100 |
| POZBO-30K | 30 | 203-256 | 8-10 | 45-60 | 14-17 | 4500x1200x2250 | 3900x1200x2100 |
| POZBO-40K | 40 | 271-341 | 8-10 | 60-80 | 14-17 | 5600x1200x2350 | 3900x1300x2300 |
| POZBO-50K | 50 | 339-426 | 8-10 | 75-100 | 14-17 | 5600x1200x2350 | 3900x1400x2400 |
| POZBO-60K | 60 | 406-511 | 8-10 | 80-120 | 14-17 | 6000x1200x2350 | 3900x1500x2500 |
| POZBO-70K | 70 | 485-625 | 8-10 | 105-140 | 14-17 | 6200x1600x2250 | 3900x1600x2600 |
| POZBO-80K | 80 | 542-681 | 8-10 | 120-160 | 14-17 | 6200x1600x2250 | 4000x1800x2700 |
| POZBO-100K | 100 | 677-852 | 8-10 | 150-200 | 14-17 | 8500x1600x2350 | 4000x2000x2850 |
Note
1. Power consumption is based on different ozone concentration and cooling water conditions.
2. Customerize for higher ozone concentration ozone generator.
Basic knowledge of ozone
Ozone
is an oxygen molecule made up of three oxygen atoms. The molecular
formula is O3, one of which is connected with the other two oxygen atoms
in the form of a single bond. Ozone is known as "green chemicals", is a
strong oxidizing agent. It has four main functions of sterilization,
decolorization, oxidation, deodorization and no residue, no pollution,
is one of the environmental friendly green industrial raw materials. Ozone is one of the most powerful solutions for municipal, industrial and commercial water treatment challenges.
Environmental conditions
| Operating Temperature | 0oC to +40oC |
| Altitude | If >1000 meters above sea level, the cooling effect become bad and the air outlet of air compressor will reduce |
| Humidity | Maximum 85% relative humidity |
| Atmosphere | Non-flammable, corrosive and conductive dust |
| Atmospheric Pressure | 101.3KPa standard atmospheric pressure is required |
| Working Area Conditions | Keep the room for ozone generator system dry and ventilated |
After sales service
Our
company is responsible for the maintenance of the equipment and the
establishment of equipment user files from the date the equipment leaves
the factory.
The
intelligent remote monitoring center monitors the operation of
equipment in real time through the intelligent remote monitoring system.
After-sales service guarantee center, built a complete after-sales parts warehouse and supporting facilities.
Provide free equipment use training and equipment maintenance training.
Provide customers with equipment components and maintenance materials in time.
Beyond the warranty period, a long-term maintenance contract can be signed.
Strengthen the contact with users, pay attention to the opinions of users, develop user quality tracking information card, improve the user profile.
The professional training team pays regular visits to understand the operation of the equipment to ensure the long-term safe and reliable operation of the equipment.
Flue Gas Denitrification
The advantages of ozone denitrification technology
Low temperature flue gas treatment has nothing to do with the front-end combustion process and has no influence on operation.
Suitable for all kinds of flue gas environment, such as power plant boiler, garbage incinerator, cement kiln, sintering plant flue gas treatment and other complex environment.
The implementation of simultaneous desulfurization and degradation of organic mercury removal and denitrification, achieve a removal tower.
No NH3 denitration is achieved, no ammonia leakage and two pollution risks.

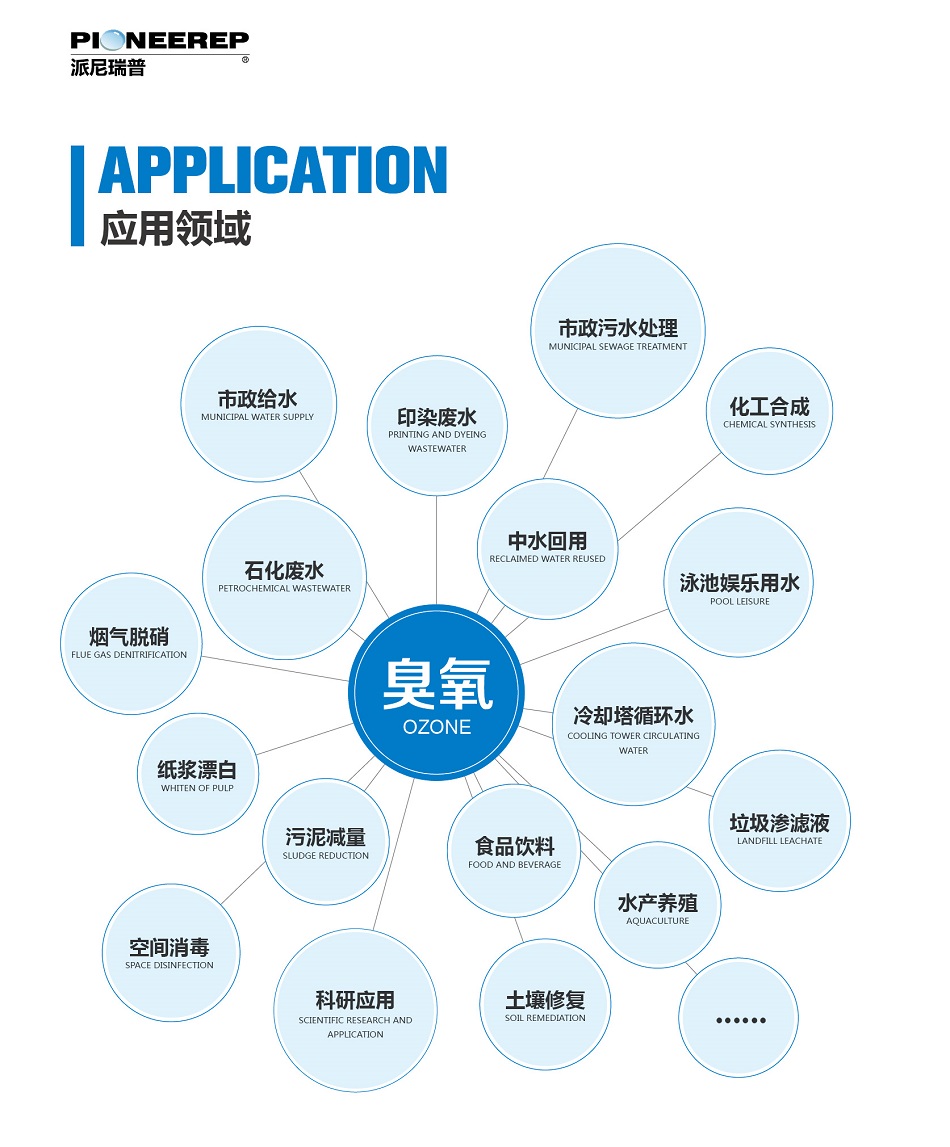

Application area
All kinds of coal-fired boilers, gas fired boilers and flue fired boilers
Steel mill sintering machine and other mental smelting furnaces
Various glass furnaces and cement processing furnaces
Combustion furnace of all kinds of waste
Nox acid gas flow in various chemical processes
Flue gas of various petroleum catalytic cracking units
Refuse incinerator

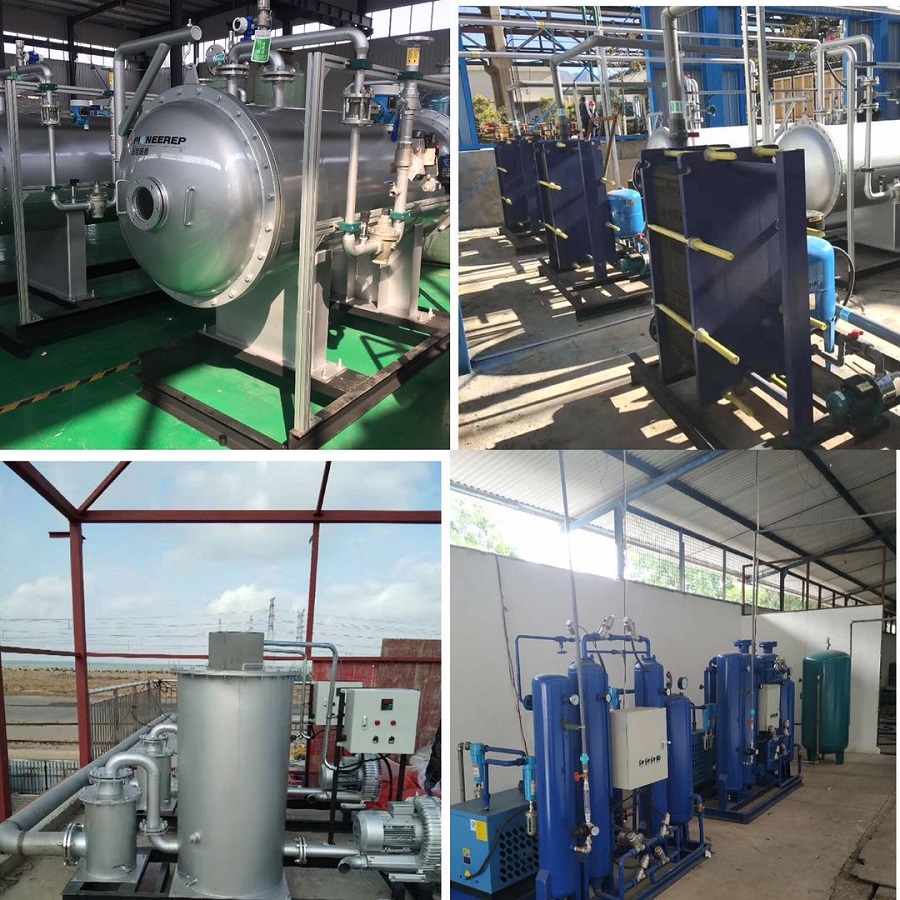

Field installation
Why Choose Us?
1. EXPERIENCE :11 years focus on ozone generator R&D and manufacture,service of more than 1000 customers.

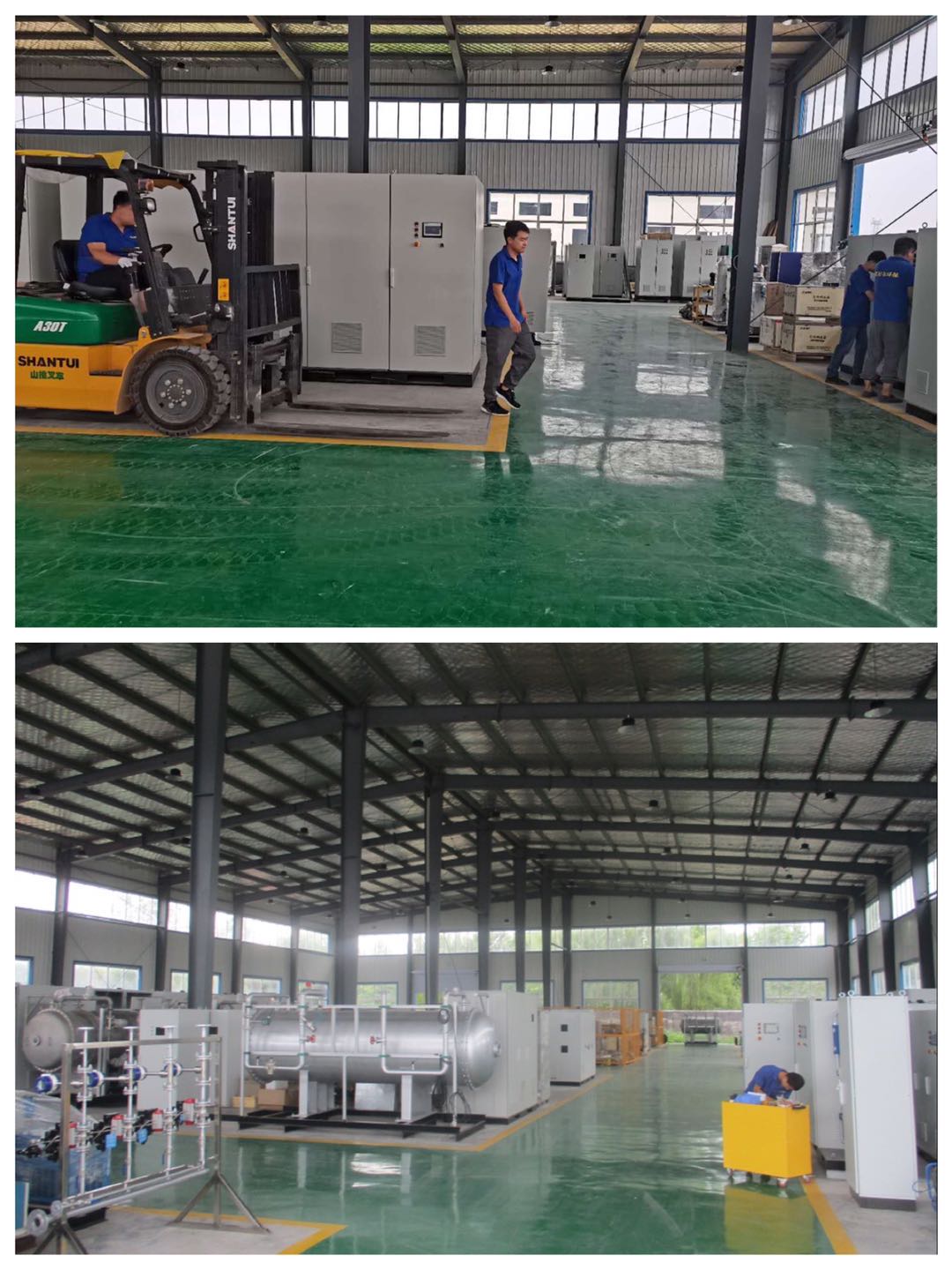

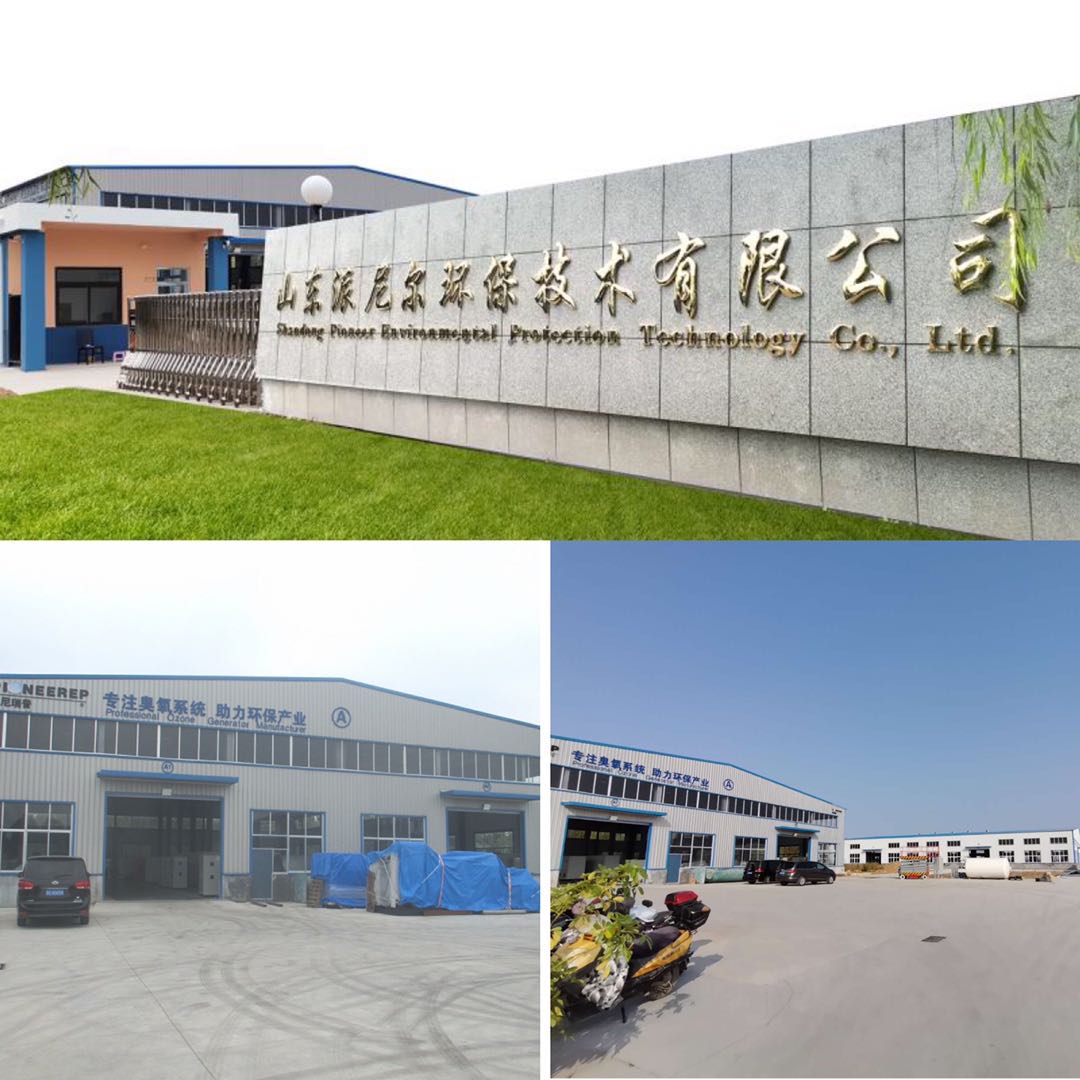

2. 30000 square meter factory area
3. Core patent technology and authorized certifications
4. Strict quality control to ensure safe and reliable products
5.Service: 24 hours online service,life-long maintenance
6.Professional overseas sales team, supply prompt response
Contact us NOW for your needs!
