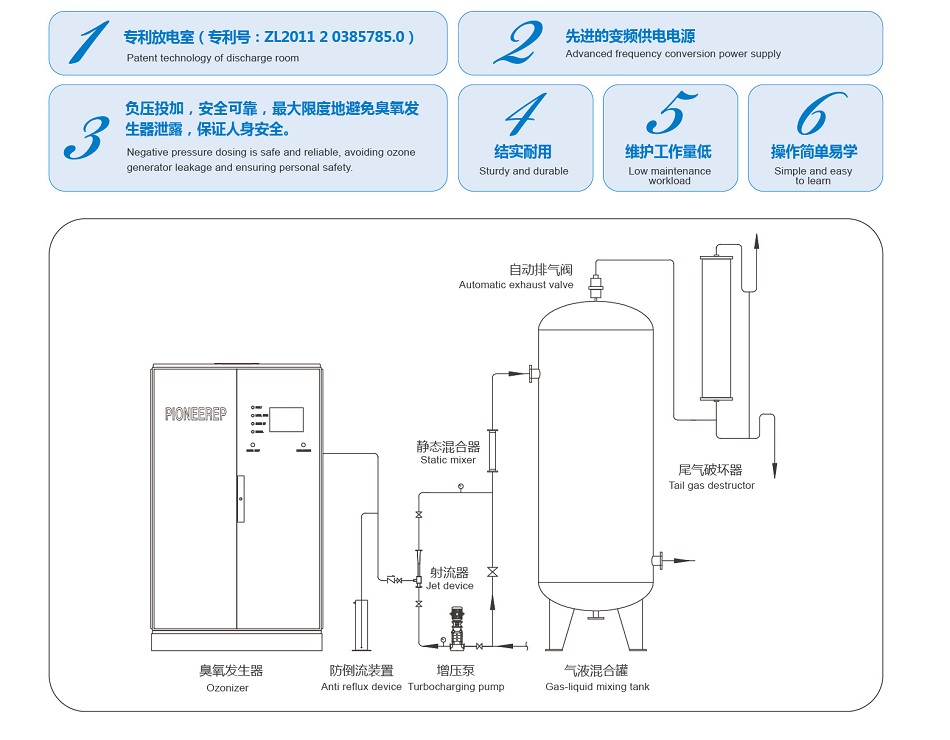

Ozone Generator System for Swimming Pool
Ozone Technology: a compact ozone system
The compact ozone range is designed for disinfection of private and hotel sized swimming pools. Ozone provides effective treatment against chlorine resistant micro-organisms and significantly improves water clarity.
PSOZON series is a high-performance ozone generator system for swimming pools. The utility model has the advantages of ingenious structure, convenient installation, simple operation, high safety and low demand for cooling water. There are many advantages, such as new technology, high performance and so on. Complete set of equipment, opening the machine can run.
Specification
Model | Ozone production | Cooling water flow | Power consumption | Interface diameter | Dimension(mm) | |
| g/h | m3/h | Kwh | cooling water | ozone output | W D H | |
| PSOZN-10 | 10 | 0.03 | 0.4 | R1/2" | R1/2" | 4000x300x1000 |
| PSOZN-20 | 20 | 0.05 | 0.5 | R1/2" | R1/2" | 600x450x1400 |
| PSOZN-40 | 40 | 0.08 | 0.9 | R1/2" | R1/2" | 600x450x1400 |
| PSOZN-80 | 80 | 0.15 | 1.2 | R1/2" | R1/2" | 800x600x1700 |
| PSOZN-120 | 120 | 0.20 | 2.2 | R1/2" | R1/2" | 1200x600x1700 |
| PSOZN-150 | 150 | 0.30 | 2.6 | R1/2" | R1/2" | 1200x600x1700 |
| PSOZN-200 | 200 | 0.40 | 3.5 | R1/2" | R1/2" | 1600x600x1700 |
| PSOZN-250 | 250 | 0.50 | 4.0 | R1/2" | R1/2" | 1600x800x2000 |
| PSOZN-300 | 300 | 0.60 | 5.0 | R1/2" | R1/2" | 1600x800x2000 |
| PSOZN-400 | 400 | 0.80 | 7.0 | R1/2" | R1/2" | 1800x800x2000 |
| PSOZN-500 | 500 | 1.00 | 8.0 | R1/2" | R1/2" | 1800x800x2000 |
Note:
1. Power consumption is based on different ozone concentration and cooling water conditions.
2. Customerize for higher ozone concentration ozone generator.
Ozone Knowledge
For
a long time, in medical and health, pharmaceutical, food processing and
other aspects, disinfection and sterilization of water and air has been
used ultraviolet radiation, chemical fumigation, spraying and other
methods, there are many defects in the use. The emergence of ozone
sterilization and disinfection products provides a fast, efficient, safe
and reliable disinfection method, which is the ideal substitute for
traditional disinfection equipment and will inevitably be widely used.
Ozone
O3 is the oxygen O2 isomorphism, the composition element is the same,
the composition form is different, the property is very different.
Ozone
is gaseous at room temperature, colorless and grassy at low
concentration, and soluble in water. It is known as one of the strongest
oxidants. The chemical properties of ozone are more active and have
strong oxidation ability. When met with bacteria and harmful chemicals
(such as formaldehyde, benzene, ammonia), immediately produce oxidation
reaction, so as to play the function of sterilization and disinfection,
mildew, taste, decomposition of harmful gases and so on. Ozone is
unstable, and its aerobic O2 changes, reducing it to O2, within a few
minutes, so it is free of pollution and residue. It is so far the world
recognized that food and beverage direct disinfection of the only
substance!
The
high concentration ozone generator produced by our company is a kind of
high concentration ozone generator equipment dedicated to air
purification and water treatment. It adopts the latest ozone generating
device and many kinds of protection function circuits inside, and has
excellent performance and extremely long working life.
Our Products advantage
1. All in one equipment, easy to operate
2. Over temperature protection, over-current protection, and over-voltage abnormality monitoring.
3. Ozone leakage alarm, operation fault alarm monitoring
4. Supply full set of auxiliary equipment, including air compressor, gas storage tank, filter, freezing dryer, adsorption dryer etc.
5. Use special stainless steel tube for discharge chamber
6. With SIEMENS PLC touch screen automatic control system, users can achieve monitoring, control, switching, setting, report, alarm, cycle start-up, emergency shutdown etc. functions.

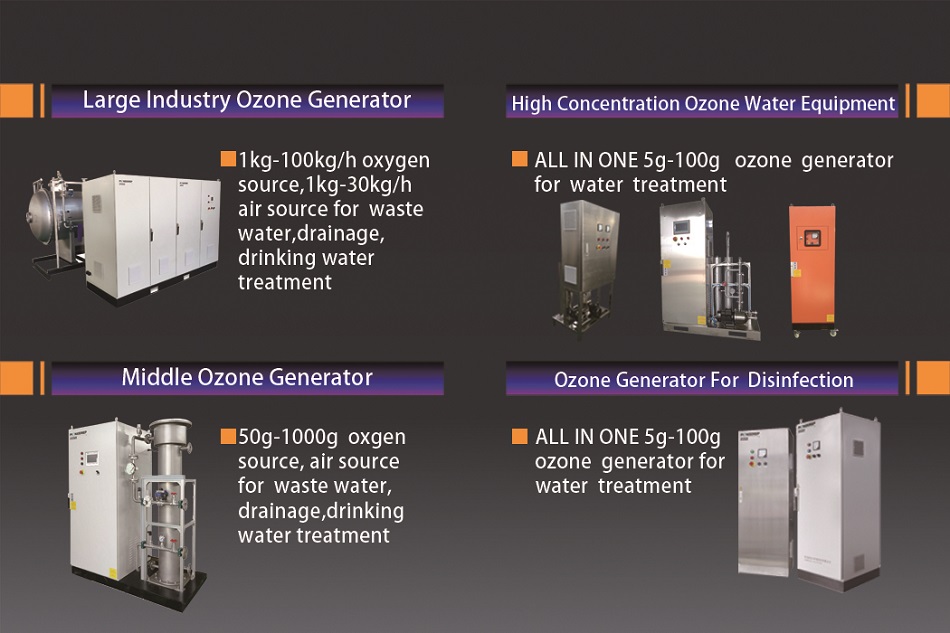

Products Line
FAQ
| 1. Are you trading company or manufacturer? | ||||||||||
| We are manufacturer and trader. | ||||||||||
| 2. How long is your delivery time? | ||||||||||
| Generally it's 5 days if the goods are available. It would be 20-30 days based on ozone application and capacity requirements.We could supply ODM and OEM, design layout based on actual working condition. | ||||||||||
| 3. Do you provide samples? | ||||||||||
| Yes, we could offer the sample. After receiving 100% payment, we will deliver the sample to you as soon as possible. | ||||||||||
| 4. What is your term of payment? | ||||||||||
| 30% T/T in advance, balance before shippment. | ||||||||||
| 5. How do you control quality? | ||||||||||
| The company strictly implements the ISO9001 quality management system, has passed ISO14001, ISO18001 management system certification and SGS. In addition, we have more than 20 patents technology to ensure stable and reliable product quality. | ||||||||||
| 6. Does your product have any warranty? | ||||||||||
| Yes, we offer 12 months warranty from the date of the customer's confirmation.Beyond the warranty, we will also supply life-long maintenance but we will charge maintenance fee. |
