Galvanized Steel Wire Mesh Cable Tray Perforated Ladder Type Cable Tray

              Galvanized Steel Wire Mesh Cable Tray Perforated Ladder Type Cable Tray

Quick Details

Product Description
Wire basket cable tray is a welded wire mesh cable management system produced from high strength steel wires. Wire basket tray is produced by first welding a net, forming the channel, and then finishing after fabrication.  The 2" x 4" mesh permits continuous airflow to help prevent heat buildup. In addition, this unique open design prevents the buildup of dust, contaminants and bacterial proliferation.

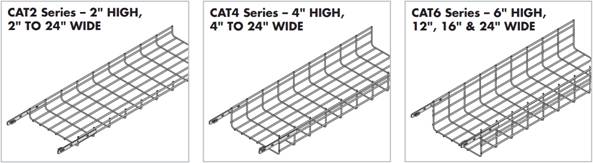

Wire basket cable tray is produced in standard 10' lengths and is supplied in three channel depths: 2", 4", and 6".

Wire basket tray is offered in nine different widths:
2" (50mm)                       4"(100mm)                          6" (150mm)                  8"(200mm)                  12" (300mm)               16"(400mm)                       18"(450mm)                20"(500mm)                       24"(550mm)

Finish
Standard Finish
EG-ELECTRO-PALTED ZINC GALAVNIZED - (ASTM B633 TYPE III, SC3   Thickness: .000472" (12μm))
Electrodeposited zinc coating is suitable for most indoor applications and may be used outdoors in mild environmental conditions.

Special Finishes
HG-HOT DIP GALVANIZED-(ASTM A123 GRD.55  Thickness: .0002165"(55μm))
Provided by immersing the product in a molten zinc bath.  This treatment is most suitable for outdoor applications or situations where increased corrosion resistance is desired.

SS-304 TYPE STAINLESS STEEL or S1- 316 TYPE STAINLESS STEEL
Corrosive resistant stainless steel with no additional surface treatment. This material option provides the best corrosion resistance available. Stainless steel is used primarily in marine environments or food processing facilities.

ZD-DICHROMATE- (ASTM B633 Type II, SC3  Thickness: . 000472"(12μm))
An electro-galvanized zinc plate is applied to the steel base metal.  Yellow dichromate is applied over the zinc and  results in a gold appearance which acts as a nonporous barrier sealant.

Other- Powder coating available

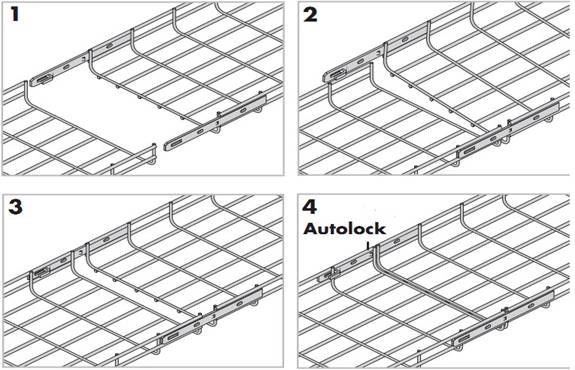

Wire Basket Cable Tray Assembly - CAT2, CAT4, &CAT6

Step 1  Align the trays as shown.
Step 2  While raising the rear edge of the male connection, slide the tray forward, but do not engage the locking clip.
Step 3  Push the rear locking clip over the back edge of the tray.
Step 4  Slide the tray forward to engage both front and rear locking clips.

Accessories Assembly

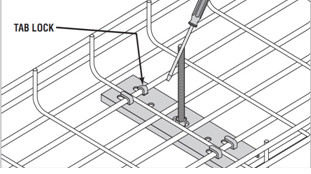

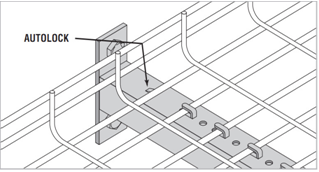

Many of the wire basket accessories feature the unique Autolock. Just slide the tray under the tabs and then push down to engage the Autolock. No tools, bending, or  attachments are required for a secure connection.	For accessories which use the tab lock, the tray is secured  by using a screw driver to gently bend one of the tabs  down over the tray.
