Agricultural Agricultural Machinery
MOQ:1.00 Set(s)
small tractor farmtractor for small farmsmall tractor farming price4 wheel farm mini tractorfarming tractor machinearticulated tractorfarm tractor attachmentstractor small machineagricultural tractor machineryfarm tractor tracks
L/CT/TWestern UnionPaypalMoney GramOthers

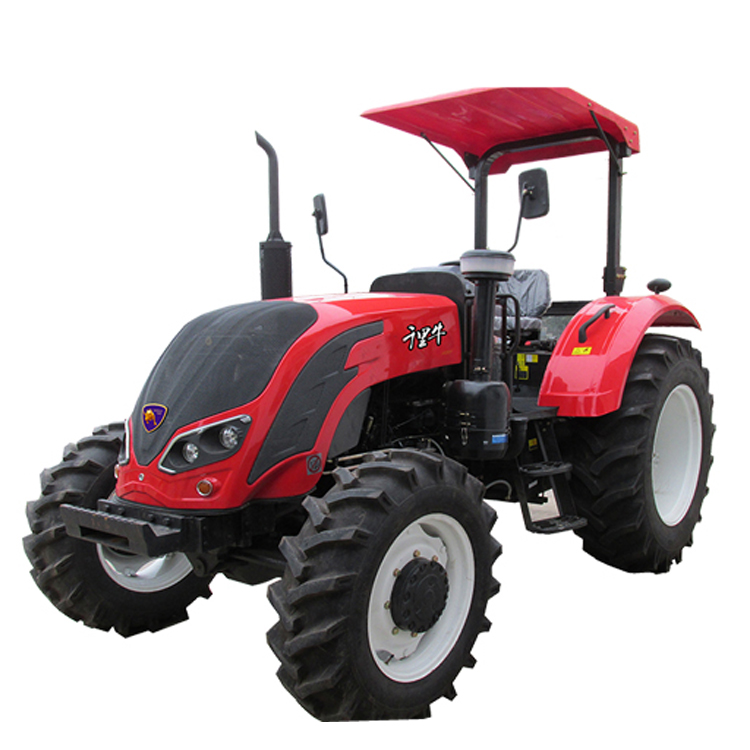

1.Tractor adopt renowned directly injection vertical water cooled 4-stroke YTO/YUCAHI engine.And the gear box use F12+R12.
2.The tractors PTO speed:540/760 rpm.Linkage: II Rear Mount 3-point Linkage.
3.Tyre of farming tractors F/R (mm):8.3-24/14.9-30.
4.The tractor clutch is 11 in.,dual-function,independent,dry clutch.
5.This agricultural tractor model adopt 80 L fuel tank.
Product parameters:
Specification | ||||
Model | QLN-804 | |||
Dimensions | Length×Width×Height(mm) | 3980×1760*2750 | ||
Dry Mass | With Cab(kg) | 2740 | ||
Engine | Engine brand | YTO | ||
Engine Model | Directly Injection Vertical Water Cooled 4-stroke | |||
Number of Cylinder | 4 | |||
Cooling System Type | Water Cooled | |||
Rated Power(kw) | 59 KW | |||
Rated Speed(r/min) | 2200 | |||
Fuel Tank | Volume(L) | 85 | ||
Transmission System | Gear Box | 12F+12R Shuttle Shift | ||
Clutch | 11in.,double-acting,semi-independent,dry clutch | |||
Braking System | disc, mechanical operation,oil bath | |||
Running System | Tyre Model | Front tyre | 8.3-24 | |
Rear tyre | 14.9-30 | |||
Steering System | Hydraulic Steering | |||
1.when loading tractor ,we will delivery some normal spare part and tools for free together with tractor , including tool box .
2.When the tractor have problem in warranty ,please take picture as evidence. After make sure (the problem must not be caused by man made destructive factors), we will send the spare parts for free at once.
3.After the warranty ,the spare parts coast is paid by customer.
Warranty
12 months is from the date of commissioning, or at the latest, 12 months from delivery.
