Quick Details
| Name | Clip/Clamp/Fastener | Finish | Galvanized or stainless |
| Material | Steel, Low carbon steel, mild steel, stainless | Steel Standard | GB700-88, ASTM (A36), BS4360 (43A), AS30 (43A), AS3679 |
| Certificate | ISO | Grating Size | 3'x20',3'x24',3x30',1000x1000mm |
| Application | Steel platform, steel structure, trench cover, stair treads | Steel grating bearing bar | plain, serrated, I bar |
| Type | round, twisted bar | Supply Ability | 1000 Square Meter/Square Meters per Week |
The clip apply to all kinds of steel gratings, it is made of the M8 bolt, top clip and bottom clip. The method of clip fixing: There are at least 4 clips on every piece of steel grating, about the big span steel grating it is better to use more clips.
According to the client's requests, we can supply galvanized mild steel clips and stainless steel clips. Ningbo Haoyuan steel grating Co. Ltd is a professional enterprise in R & D, design, steel grating, SMC grating field.
Technical Data
Galavnized Clip
| Cross Bar Pitch | Bearing Bar Pitch | Bearing Bar Specification (Width* Thickness) | |||||
| 20*3 | 25*3 | 32*3 | 40*3 | 20*5 | 25*5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| Cross Bar Pitch | Bearing Bar Pitch | Bearing Bar Specification (Width* Thickness) | |||||
| 30 | 100 | G325/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G325/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G325/40/100 | G235/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G325/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |

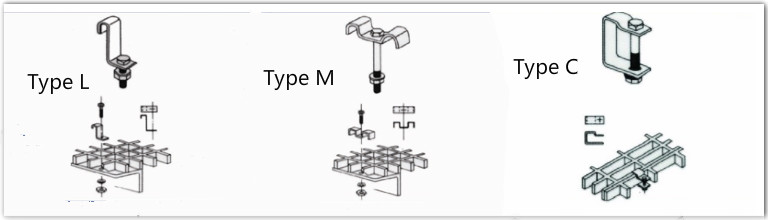

Type "L" Hold Down Clips:
Secure molded grating panels to support to a support using one bearing bar.
Type "M" Saddle Clips:
Secure molded or pultruded panels to a support using two adjacent bearing bars.
Type "C" End Panel Clips:
simplified mechanical method to connect adjacent molded fibergrate panels.
