Array Rotary Evaperator

Array Rotary Evaporator is an innovative pre-processing equipment that can simultaneously concentrate and process multiple samples. It consists of multiple miniRotar rotary evaporator units, a vacuum system, and a solvent condensation recovery system. It can greatly improve the experiment while realizing multiple sample processing. Room space utilization.

The multiple miniRotars mounted on the rotary evaporator of the array can be used at the same time, and also support independent operation. They can independently perform temperature setting, speed adjustment, and vacuum release without interfering with the normal operation of other rotary evaporator units.

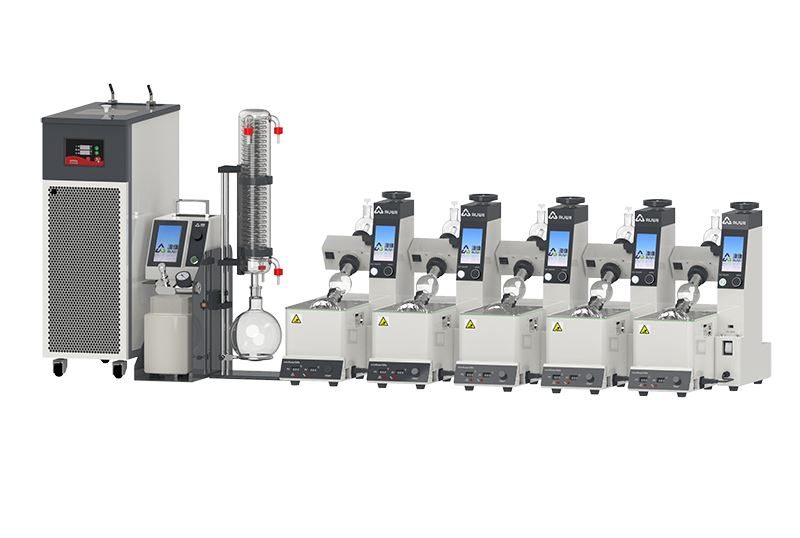

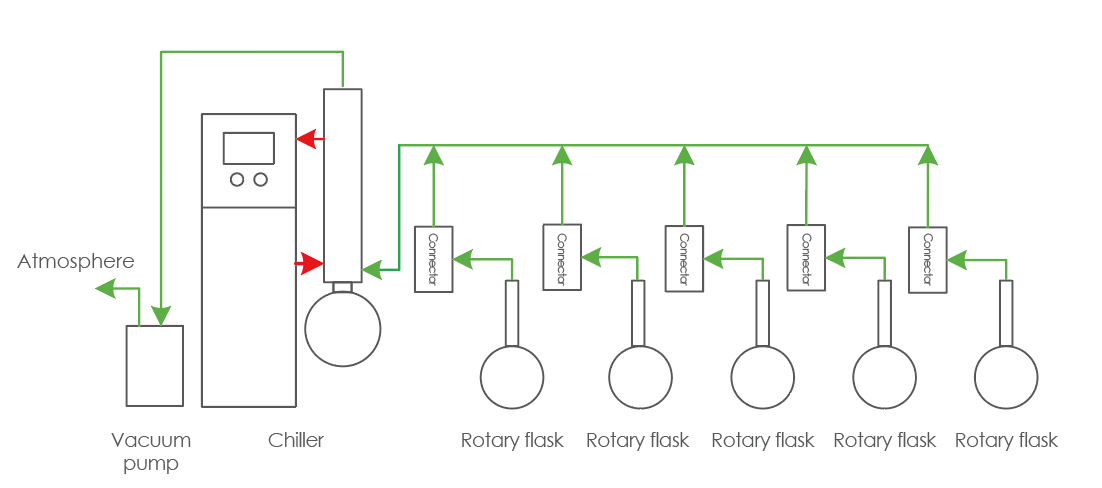

Schematic diagram of Array rotary evaporator connect with chiller

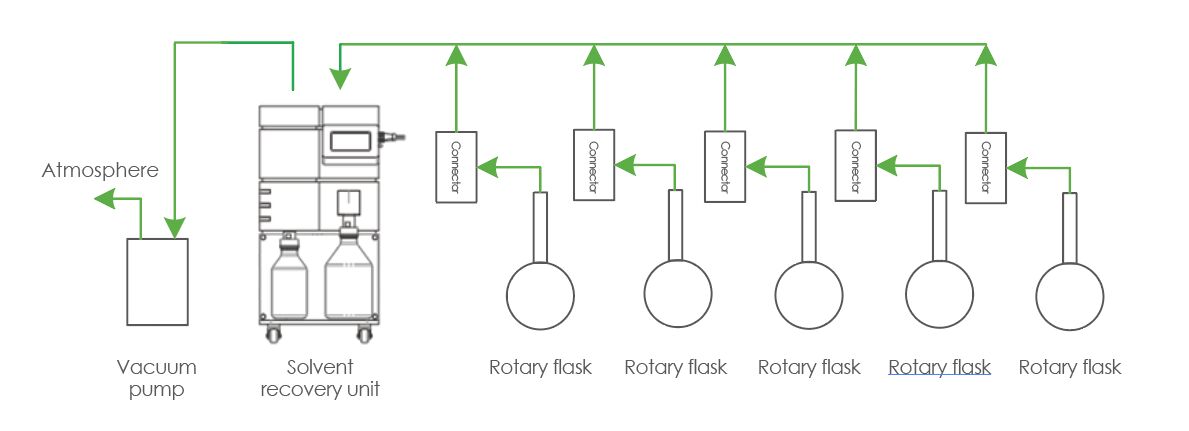

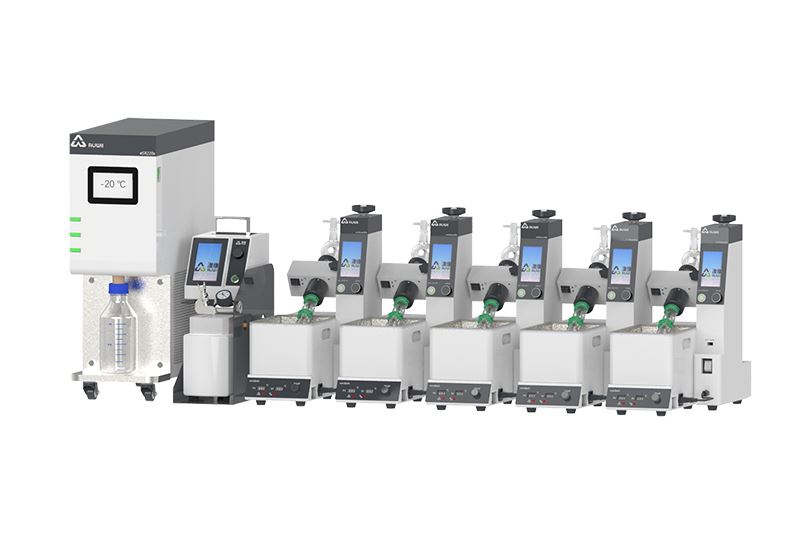

Schematic diagram of Array rotary evaporator connect with solvent recovery

Main Feature:

○ Extreme Mini-Saving Space

MiniRotar innovatively adopts the longitudinal design of the rotating shaft, which reduces the product width to 25cm, which is one third of the width of the traditional rotary evaporator. The 1.8-meter standard fume hood can hold up to 5 miniRotars, which fully saves the space resources of the fume hood.

○ Array Combination-Improve Efficiency

The special interface design of miniRotar allows multiple units to be used in parallel, sharing a vacuum system and condensation recovery system. It is very suitable for the simultaneous processing of multiple samples to improve work efficiency.

Each miniRotar can independently set working parameters such as temperature, speed, time, etc., and can independently raise and lower the sample bottle. miniRotar 500s has an independent quick release vacuum button, which can release vacuum independently without affecting the normal operation of other miniRotars.

○ Regular Work-Reduce Nursing

The miniRotar500s has the ability to work regularly. You can set the working conditions and working time according to experience. After the time is reached, the miniRotar500s will automatically stop rotating, release the vacuum, lift the sample bottle out of the heating water bath, and automatically stop the evaporation and concentration of the sample.

○ Double Protection-Avoid Pollution

The miniRotar is equipped with a liquid backflow prevention interface, which can effectively prevent the liquid backflow in the pipeline when the vacuum is released, avoid contaminating the sample, and ensure the accuracy of the analysis results.

To get more information kindly contact: sha.liao@allway-tech.com
