Characteristics

◆ Origin with completely independent intellectual property right;

◆ The unique damascene anchor structure gives the membrane tube a high mechanical strength and pressure-resisting strength isup to 1.1 MPa;

◆ The aspect ratio of the membrane tube is 180:1. The patented equipment guarantees that the wall thickness deviation isless than or equal to 0.1 mm. The effective area of the membrane module islarge, the equipment volume is relatively small, and the packing density is5-10 times that of similar products;

◆ Great contamination tolerance, the original water turbidity ≤ 3500NTU can be directly filtered, the effluent water quality ≤ 0.2 NTU, does not require cumbersome pre-treatment;

◆ Cost-effective, marketprice is only 1/5 of similar imported products.

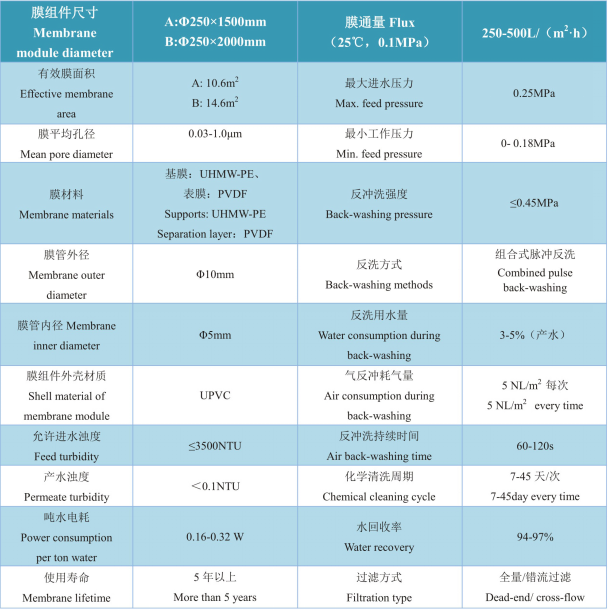

Membranemodule technical parameters
