All in one inverter heat pump 5 working mode, heating +DHW, cooling +DHW, Heating, Cooling, DHW, working -20℃ winter , 220V ~50Hz/60Hz power supply.
So it inside has 2 heat exchanger separately for heating/cooling and hot water, so it can sure 100% Heat recovery for hot water when cooling model running, so hot water get it free, no need user pay any money.
Capacity range from 12kW/15kW/25kW/30kW meets to buyer different room size using. All in one inverter heat pump as 4th generation heating /cooling products, this is more safe & clean energy, water /electric separately, cold water/ hot water to sure room inside temperature more Comfortable and Just right humidity to sure room air do not dry.

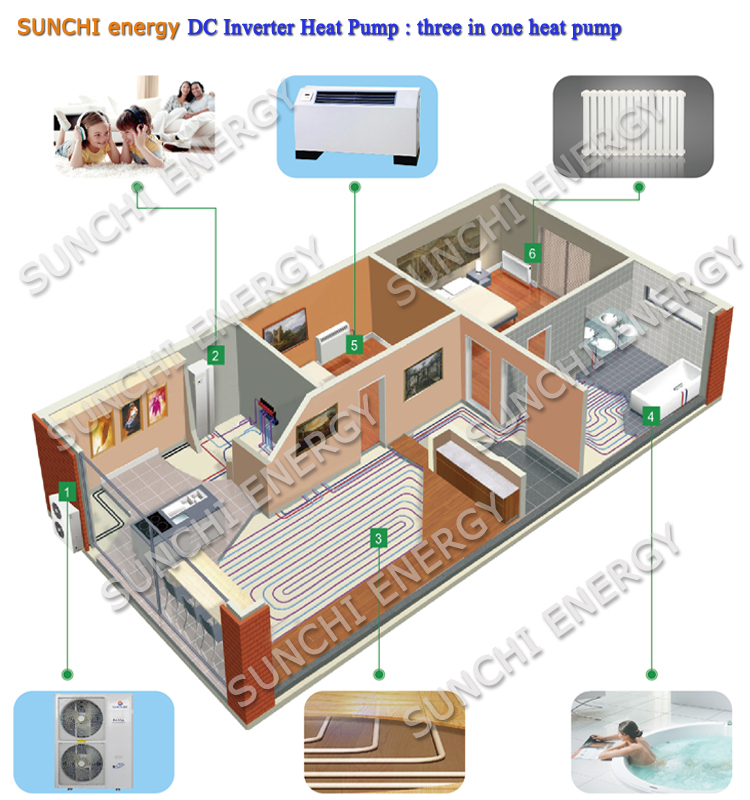

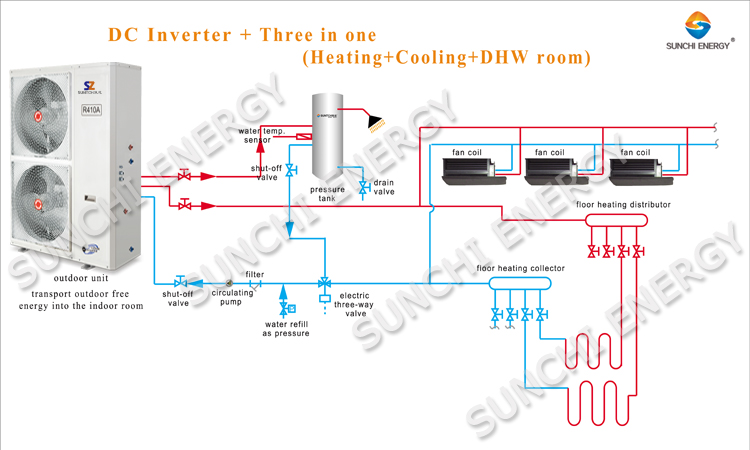

It can connect underfloor heating, radiator heating, fan coil cooling, 250L~500L hot water tank. So one PCS all in one inverter heat pump can solve one big home building different room ( 5-10 rooms ) size heating loading .also can offer around 5 people for hot water shower using.
1. Network location remote monitoring
The all in one heating and cooling system can realize remote monitoring of network positioning, PC centralized operation and control, the realization of the remote monitoring mode of the earth village, the joint control mode of multi module equipment, and the real realization of unlimited equipment combination.
2. Safety, environmental protection, energy saving and pollution-free
The complete separation of water and electricity prevents the occurrence of accidents caused by electricity leakage. There is no burning matter, which prevents the poisoning of human body caused by harmful gases such as carbon monoxide.
| DC inverter heat pump -- Three in one ( heating , cooling, DHW ) | ||||||
| Model | RSV-12R | RSV-15R | RSV-25R/S | RSV-30R/S | ||
| HP | 4P | 6P | 10P | 12P | ||
| Power supply | V/Hz | 220V/50Hz | 380V/50Hz | |||
| Cooling | Rated cooling capacity | kW | 10.0 | 15.0 | 25.0 | 30.0 |
| Rated cooling input power | kW | 3.0 | 4.8 | 7.6 | 9.4 | |
| EER | w/w | 3.3 | 3.1 | 3.3 | 3.2 | |
| Cooling capacity Min / Max | kW | 4.5/14 | 7.0/20.0 | 11.0/32.0 | 13/38 | |
| Input power Min / Max | kW | 1.3/5.0 | 1.8/6.5 | 3.0/12.2 | 3.6/15.0 | |
| EER Min / Max | w/w | 2.1/4.1 | 2.3/4.2 | 2.2/4.2 | 2.2/4.2 | |
| Heating | Rated heating capacity | kW | 12.0 | 17.0 | 27.0 | 33.0 |
| Rated heating input power | kW | 3.4 | 5.1 | 7.8 | 9.7 | |
| COP | w/w | 3.5 | 3.3 | 3.5 | 3.4 | |
| Heating capacity Min / Max | kW | 6.0/14.0 | 8.0/20.0 | 12.5/32.0 | 15.0/38.0 | |
| Input Power Min / Max | kW | 1.3/5.0 | 1.8/6.5 | 3.0/12.2 | 3.6/15.0 | |
| COP Min / Max | w/w | 2.8/4.7 | 2.8/4.6 | 2.7/4.6 | 2.7/4.5 | |
| Hot water | Rated heating capacity | kW | 14.0 | 21.0 | 35.0 | 42.0 |
| Rated heating input power | kW | 3.1 | 4.7 | 7.6 | 9.3 | |
| COP | w/w | 4.5 | 4.5 | 4.6 | 4.5 | |
| Input Power Min / Max | kW | 5.6 | 8.4 | 13.7 | 16.8 | |
| Input Current Min / Max | A | 25.9 | 40.0 | 23.1 | 28.3 | |
| Rated hot water yeild | L/h | 300 | 450 | 750 | 900 | |
| Refrigerant | Type | R410A | ||||
| Heating hot water temp. rang | ℃ | 30℃~55℃ | ||||
| Cooling cold water temp. rang | ℃ | 5℃~20℃ | ||||
| Working ambient temp. | ℃ | -20℃~45℃ | ||||
| Compressor | Type | MITSUBISHI DC inverter | ||||
| Controller system | Type | Hitachi DCBL controller | ||||
| Throttle way | Type | Electronic expansion valve | ||||
| Fan motor | Type | Brushless DC Motor | ||||
| Pressure device | Type | Built-in high and low pressure sensor | ||||
| Noise | dB(A) | 52 | 55 | 60 | 62 | |
| N.W/ G.W | Kg | 110/118 | 125/140 | 330/350 | 340/360 | |
| Connect pipe size | inch | Rc1"/DN25 | Rc1-1/4"/DN32 | Rc1-1/2"/DN40 | ||
| Unit Size (L*W*H) | mm | 1040*420*1380 | 1040*420*1470 | 1300*780*1840 | 1300*780*1840 | |
| The data in the above table test as following : 1:Heating test condition: ambient temp. (DB/WB):7℃/6℃，inlet/outlet water temp.:40℃/ 45℃ 2:Cooling test condition : ambient temp. (DB/WB): 35℃/24℃，inlet/outlet water temp.:12℃/ 7℃ 3: Hot water test condition : ambient temp. (DB/WB): 20℃/15℃，initial water temp.: 15℃，output water temp.:55℃ Note: the data in this table are for reference only, please following the nameplate parameter of this product . | ||||||
All in one inverter heat pump( Heating+Cooling+DHW ) is a kind of air conditioning and hot water equipment, which uses air as a cold (hot) source, and provides various functions such as heating, air conditioning and domestic hot water for indoor space. Through the input of a small amount of high-grade energy (such as electric energy), the all in one heating and cooling units use water as the carrier and the heat is released into the air through the carrier in the cooling season in the summer cooling season, and the carrier is cooled, so as to achieve the cooling and dehumidification of the room.
