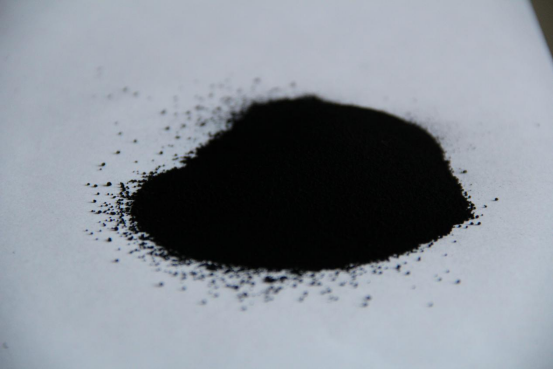

Carbon Black N220
Part One:Description:
Carbon BlackN220 are widely used in all kinds of rubber compounds, the abrasion resistance of N220 is higher 10%-20% than N330,which can endow the rubber particles with high tensile strength and abrasion resistance,also has the electrical conductivity.Carbon Black N220 with high re-enforcement property is a widely used furnace black.It has high structure and its abrasion is between super abrasion furnace black and high abrasion furnace black.
Part two:Application:

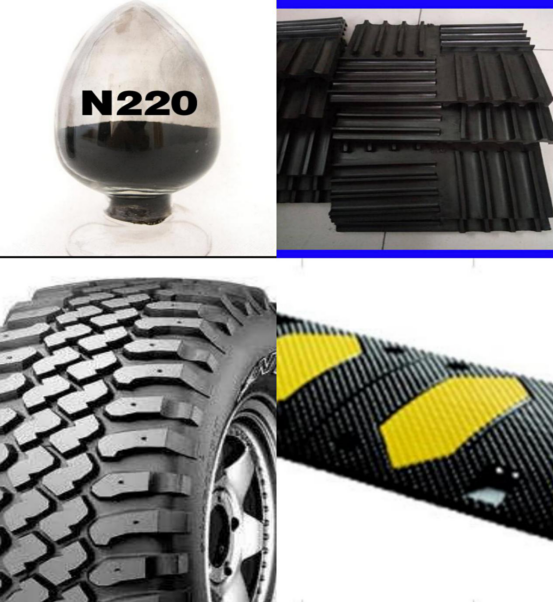

Carbon Black N220 IS used in tread compounds of truck tire,passenger tire and high strength high abrasion rubber products, such as high strength conveyor belt and industrial rubber articles etc.Comparing with N110, The N220 own the better dispersibility. However the tensile stress at a given elongationis lower than N110.
Part Three: Main Data
Item | Unit | Standard |
Iodine Absorption Value | g/kg | 120±5 |
DBP absorption | 10-5m3/kg | 125±5 |
CDBP absorption | 10-5m3/kg | 97~107 |
CTAB surface area | 103m2/kg | 113~125 |
N2 surface area | 103m2/kg | 114~124 |
Tint strength | % | 118~128 |
Heating loss | %≦ | 2.5 |
Pour density | kg/m3 | 320±40 |
300% Extend stress | Mpa | -0.4±1.0 |
Part Four: Relative products
Comparing with N234, Carbon Black N234The abrasion resistance is higher 10% than N220,which can perform more better abrasion resistance under more hardness environment,Carbon Black N234 are widely used in the high speed truck tire tread and high quality rubber products. Which own the excellent wearing resistance,high dynamic stability,resilience is lower. Generally the Carbon Black N234 are widely used in the high performance car tire tread, high quality rubber products and high load transport belt etc.
Main Data of Carbon Black N234
Item | Unit | Standard |
Iodine Absorption Value | g/kg | 121±7 |
DBP absorption | 10-5m3/kg | 114±6 |
CDBP absorption | 10-5m3/kg | 93~104 |
CTAB surface area | 103m2/kg | 103~117 |
N2 surface area | 103m2/kg | 114~124 |
Tint strength | % | 108~124 |
Heating loss | %≦ | 2.5 |
Pour density | kg/m3 | 355±40 |
300% Extend stress | Mpa | -1.9±1.5 |
Main Data of Carbon Black N219
Item | Unit | Standard |
Iodine Absorption Value | g/kg | 118±7 |
DBP absorption | 10-5m3/kg | 78±7 |
CDBP absorption | 10-5m3/kg | 67~91 |
CTAB surface area | 103m2/kg | 98~116 |
N2 surface area | 103m2/kg | 109~123 |
Tint strength | % | 115~131 |
Heating loss | %≦ | 1.0 |
Pour density | kg/m3 | 320±40 |
300% Extend stress | Mpa | -3.9±1.6 |

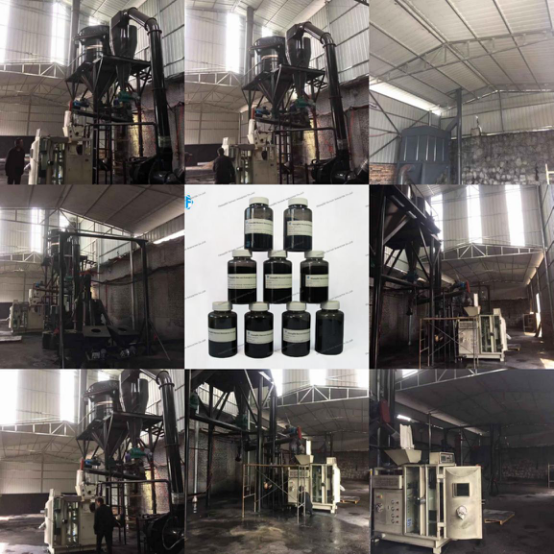

Part Five: Our factory advantages.
1. We are located in shanxi province changzhicity, where is famous for the coal and all kinds of coal chemical.Our factory own more than 30 years experience to produce carbon black. We are leading for Rubber carbon black and Pigment carbon black.
2. There are professional R&D department ,Every year we put 5% profit for studying the market and find the new products to meet the market requirement.
3. There are professional QC department in our factory, each batch are allowed to be exported must approve the testing.
4. Our products are exported to more than thirty countries,we know different requirement from the different market. Can help you recommend more suitable products to you.
5. Welcome you and your team visite my factory.
