Business Type: Manufacturer
Main Products:Condenser evaporatorcapacitor insulation pipe thermostat auto ac part
ID:20102927976
Category: Household Appliances Refrigerator, Freezer & Parts
MOQ:100.00 Piece(s)

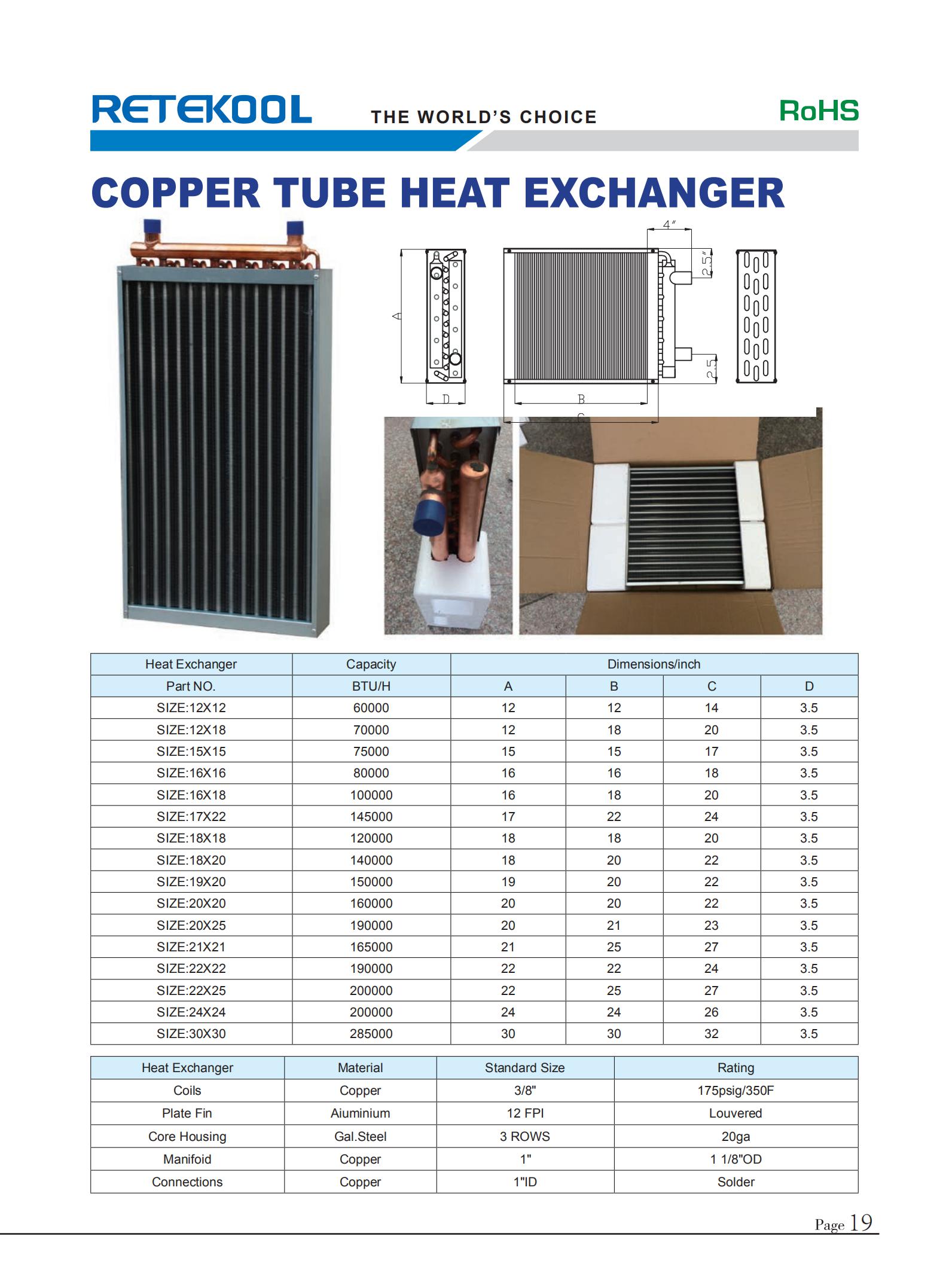

Copper condenser coil air cooled condenser coil
L/CT/TD/PWestern Union

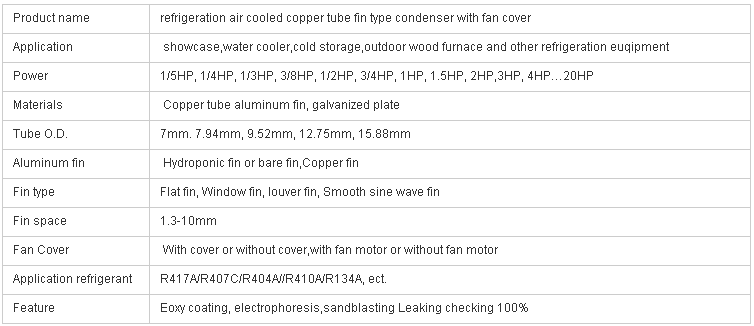

Raw Material : copper tube , aluminium fin , galvnized plate and stainless steel plate
Size of copper pipe :diameter :7/7.94/9.52mm ,Inner Grooved Or smooth tube .
Auminium foil : Hydrophilic or bare
Fin type :Louver Fin , Flat fin , corrugated fin
Pitch of fins can be adjusted between 1.8-5.8mm
Pitch of holes and pitch of rows :25x21.65mm,19.05x12.7mm,25.4x22mm,21x12.7mm,22x19.05mm......
3.0MPA Air Pressure bitrogen test leaklees

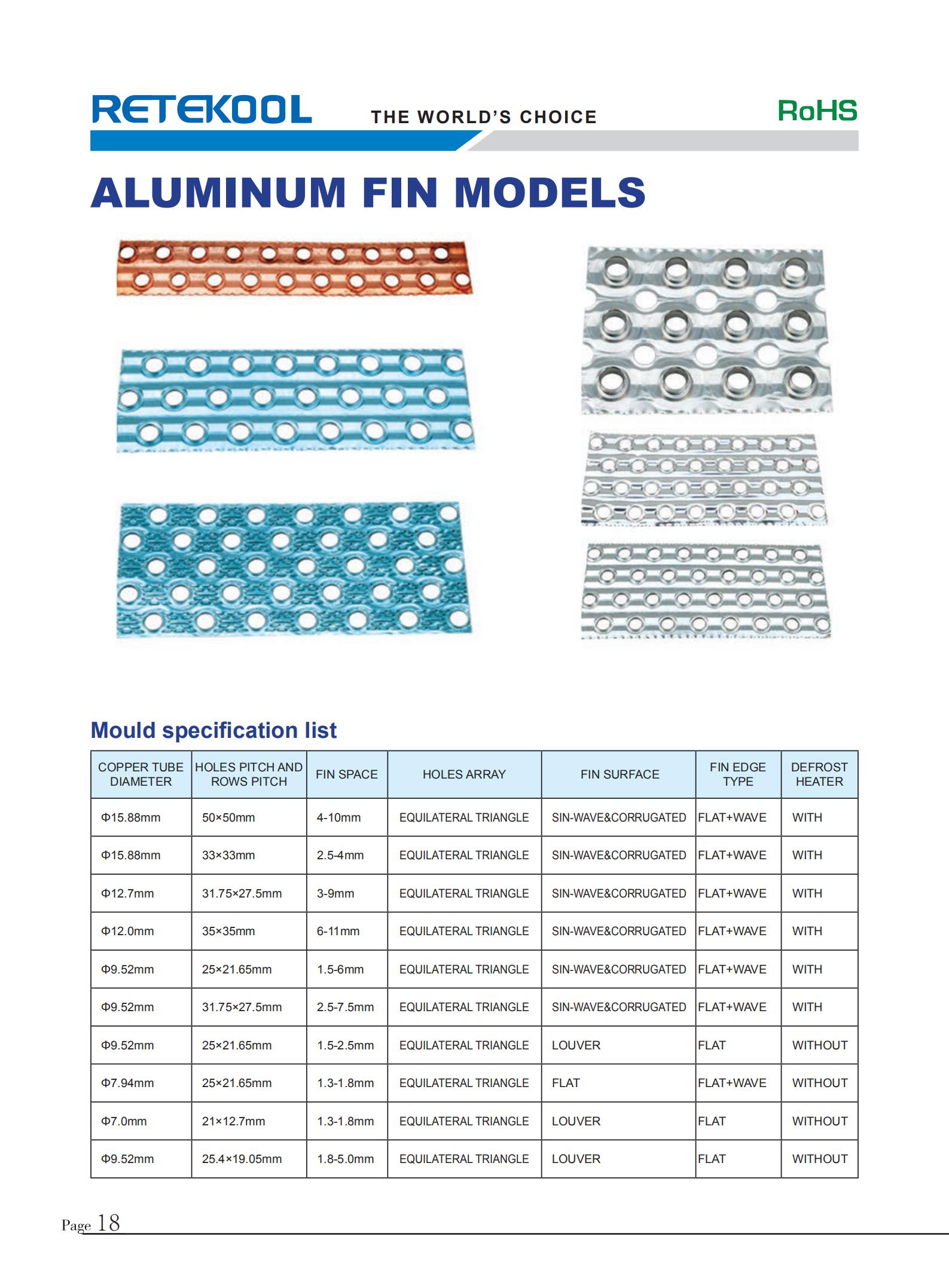

Mould Info :
copper tube diameter | holds and rows pitch | fin space | holds array | fin surface | fin edge type | defrost heater |
Φ15.88mm | 50×50mm | 4-10mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ15.88mm | 38Χ33mm | 2.5-4mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ12.7mm | 31.75Χ27.5mm | 3-9mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ9.52mm | 25Χ21.65mm | 1.5-6mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ9.52mm | 31.75Χ27.5mm | 2.5-7.5mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ9.52mm | 25χ21.65mm | 1.5-2.5mm | equilateral triangle | louver | flat | without |
Φ7.94mm | 25χ21.65mm | 1.5-3.5mm | equilateral triangle | flat | flat+wave | without |
Φ7.0mm | 21×12.7mm | 1.3-1.8mm | equilateral triangle | louver | flat | without |
