AT-D 90° DOUBLE ACTING PNEUMATIC ACTUATOR

AT Pneumatic Actuator

Actuator Body: Aluminium alloy(Hard Anodization)
Piston: Aluminium Alloy
Shaft: Nickle Alloy Plated Steel
Temperature: -20℃--+85℃

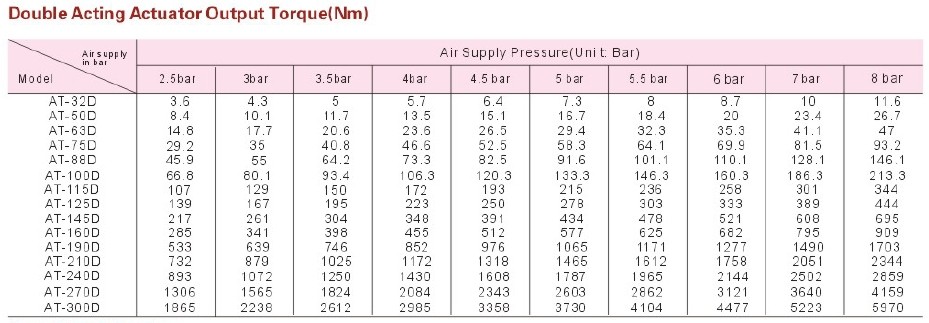

Torque: 3.5 - 4150Nm
Air-Pressure: 2.5 - 8 bar
Motion time: 0.25-3S
Type: Double Acting, Spring Return(Single Acting)
Adjustment Range: ±5°

Pneumatic Actuator (AT Series)

KT Pneumatic Actuator (Double-Acting and Single-Acting) is used to control quarter-turn valves such as ball valve, butterfly valve, etc.

I. Air supply connection is designed in accordance with NAMUR Standard to install solenoid valves

II. Bottom mounting connection is designed in accordance with ISO 5211, DIN 3337 standards for direct mounting
of valve gear boxes or mounting brackets.

III.The NAMUR drive shaft and NAMUR top mounting connection allow the installation of accessories such as limit  switch box and positioners.
