RB6040 Automatic Rigid Box Making Mahcine

Zhengrun High Quality RB6040 Cardboard Box Machine for Making Rigid Box



Automatic Rigid Box Maker is a good equipment for making high-grade covered boxes for its fine design, reliable performances and advanced technologies. It employs PLC, photoelectric detector system, hydraulic pneumatic system, touch screen man-machine interface to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning-sticking and forming box in one time. It is applicable to make high-grade boxes for shoes, shirts, jewelry, gifts, phone, perfume, etc.


Features:
(1) Automatic delivery unit for paper feeder.
(2) Automatic circulation, mixing and gluing system for hot-melting gel. (Optional device: glue viscosity meter)
(3) Hot-melting adhesives paper-gluing automatic conveying, slitter, and finish pasting the inner cardboard box's four angles in one process.
(4) The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
(5) The glued paper and cardboard inner box employ hydraulic pneumatic rectifying device to spot correctly. The spotting error is ±0.3mm.
(6) The box-forming unit can automatically collect boxes and deliver them to the forming unit according to the boxes conveyed on the conveyer belt.
(7) The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
(8) The whole machine employs PLC, photoelectric detector system and touch screen man-machine interface to automatically form boxes in one process.
(9) It can automatically diagnose the troubles and alarm accordingly.


Technical parameters

Remark:
1.The Max.and Min.sizes of the boxes are subjected to the sizes and quality of the paper.
2.The speed of the machine depends on the sizes of the boxes.
3.We do not provide air compressor.

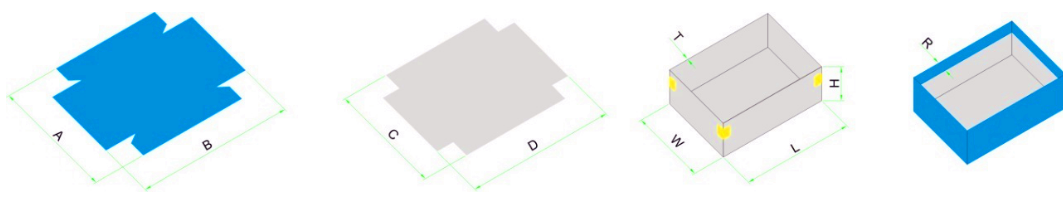

The corresponding relationship between the parameters:
W+2H-4T≤C(Max)                        L+2H-4T≤D(Max)
A(Min)≤W+2H+2T+2R≤A(Max)             B(Min)≤L+2H+2T+2R≤B(Max)

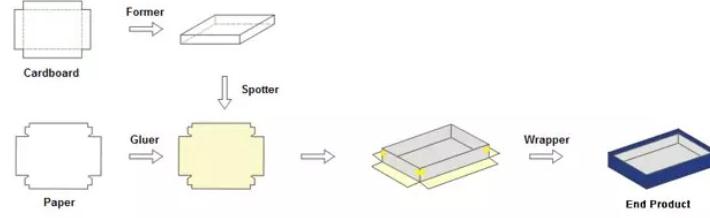

Production flow:

Zhejiang Zhengrun Machinery Co.,Ltd. which is established in 1997,is the first domestic brand to start the business of packaging equipment.The company is mainly engaged in the R&D,design,production and sales of the case maker andrigid box machinery.

The company has the modern standard factory buildings covering 66,000 m²,as well as a highly professional R&D and production team and the world's leading super large production and processing center.Zhengrun's packaging equipment can be applied to the rigid box packaging of many brands in multiple fields,such as electronics,cosmetics,jewelry,wine,garment and shoes,moon cake and tea,desk calendars,notebooks.The company has the right to import and export,and has gained the certificate of ISO9001 quality management system with all products gained the European CE.The products and services now cover more than 80 countries and regions.

Since its inception,the company always adheres to the business development concept"Quality Builds Zhengrun Brand".The company passes on the artisan spirit,pursues higher quality and aims to establish a stronger brand,to become the world's representative"Made in China"brand in printing and packaging industry.




FAQ:

Q1. Is your company a manufacturer or trading company?
We are professional manufacturer of rigid box machinery and case maker since 1997. We are able to supply best price and high quality product for our customers. Welcome to visit our factory.
Factory address: No.256, Haize Road, Binhai New Area, Pingyang county, Wenzhou city,Zhejiang Province,China

Q2 .Are there training for customer?
We would love to supply free training for every customer until you learn how to operate machine if there are any customer purchase our product.

Q3.How about the warranty?
Our warranty is one year,we can supply overseas after-sale service.

Q4.what is your payment terms?
It is 30% deposit in advance before production and after accept machine pay 70% balance.
