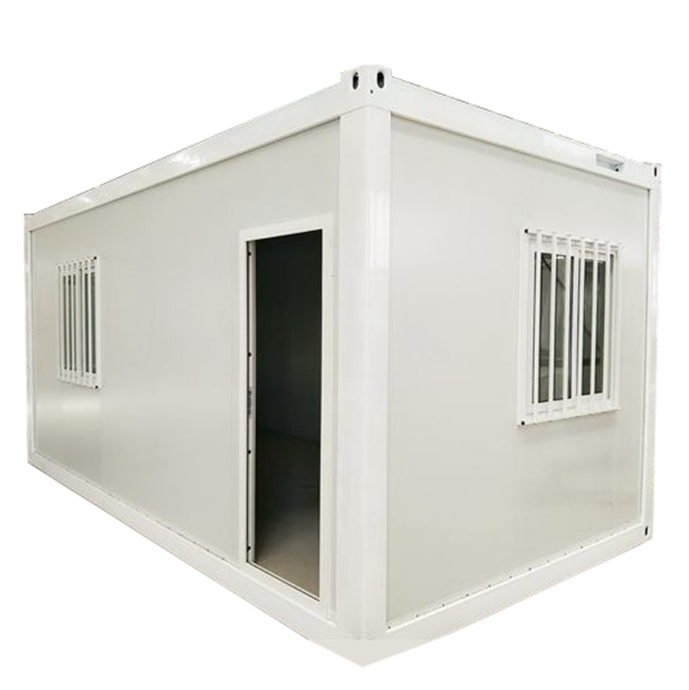

Prefab container house -fast install

Model Number : Prefab container house-fast install 01

Dimension: 6000*3000*2800 （L*W*H）

1. The detail material for the container house

The steel structure material is included steel column,steel beam,floor steel structure,exterior wall,roof tile,ceiling,window,door,floor base plate etc

Rock wool sandwich panel : 50mm thickness，color steel sheet t:0.35mm

The panel Rock wool sandwich panel is Class A fire protection, extensively used as roof tile,wall body, ceiling and partition wall in container prefabricated house.

2.Product detials

Steel frame system
1	Steel column	galvaznied+powder coating	2.3mm Cold-formed steel	T
2	Top steel beam	galvaznied+powder coating		T
3	Floor steel structure	galvaznied+powder coating		T
Wall system
4	Exterior wall	Rock wool	50mm thickness，color steel sheet t:0.35mm	m2
Roof system
5	Roof tile	color steel sheet	0.42mm thickness color steel sheet	m2
6	Ceiling+glass wool	color steel sheet ceiling	0.326mm	m2
Window system
7	Window	Aluminum alloy integral window	930mm*1200mm	m2
Door system
8	Door	steel door with lock	920mm*2040mm  (H)	m2
Floor system
9	Floor	Magnesium phosphorus plate	18mm	m2

3.Advantages

1) Features: fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
2) Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
3) Durability: The house is easy in maintenance, which can be used for more than 10 years.
4) Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.

5) Carrying capacity: can resists the impact of strong wind 0.50kN/㎡ and seismic performance 7 Level  .Due to the above advantages.

6) Convenient for transportation and storage: Flat packed package can save sea container inner space and transport costs. One 40ft container can hold 6 units.

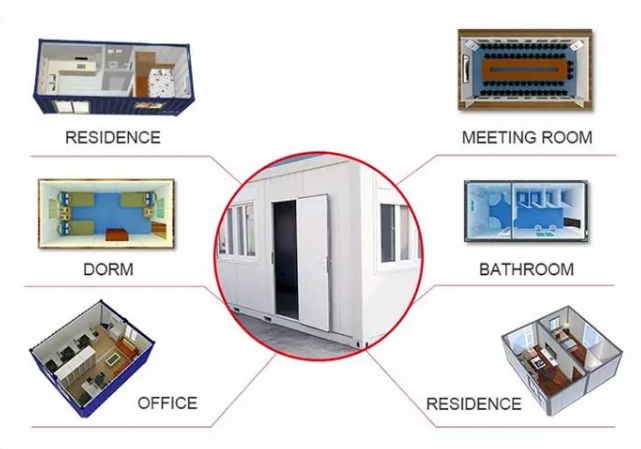

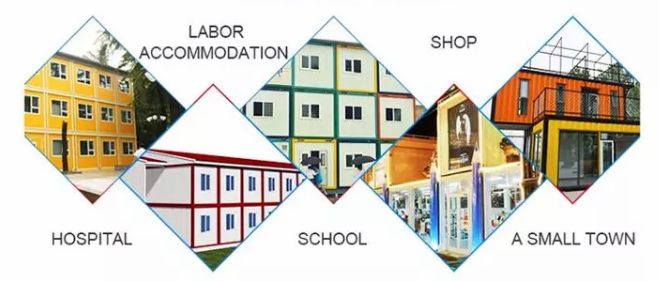

Application

PROJECT SHOWN

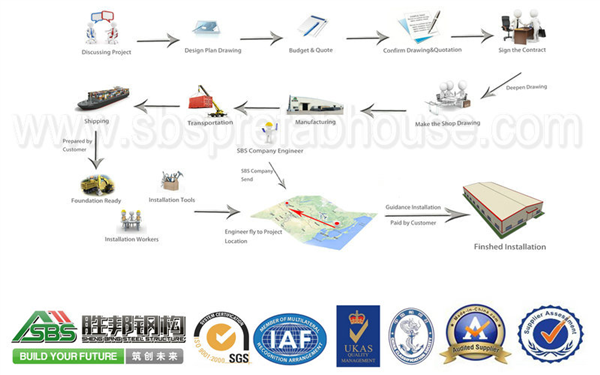

4、Service flow path:

Discussing Project——Design Plan Drawing——Budget & Quote——Confirm Drawing&Quotation——Sign the Contract——Make the shop Drawing——Manufacturing——Transportation——Shipping——Foundation Ready——Guidance Installation——Finshed Installation

5.Market:

6.Company Profile:

Foshan Shengbang Steel Structure Co., Ltd.Possesses professional large-scale steel structure production equipments and the automatic spraying production line,so we can satisfy the different customers demand.We takes "build your future" as mission and takes company growth as premise.The company has trained many high quality marketing personnel, professional technician and construction workers.We take the customers' demand as the guidances, then provide reasonable, scientific and effective solution for customers.We regard practical growth, innovationand group solidarity as our company spirit, so that we can offer all round service to customers.

Mobile/Whatsapp/WeChat: 0086-18900873261   Tel: 0086-757-81002668 / 63323396

Email: sbs004@sbsprefabhouse.com  Website: www.sbsprefabhouse.com

FOSHAN SHENGBANG STEEL STRUCTURE CO.,LTD

Add: Pingtang Industrial Park,Shipeng Village,Shishan Town,Nanhai District,Foshan City, Guangdong Province,China
