Product Category
Oil & Gas > Piping and valves
Trademark
COMMON TUBE
I am a Buyer
OR
By clicking Sign in or logging in with Google or LinkedIn, I agree to the User Agreement and the Privacy Policy .
Business Type: Manufacturer
Main Products:stainless steel pipe fittingsPipe FittingsComposite Pipesanticrossion carbon steel pipeC channel bracketpvc coating steel pipecustomized steel products plastic lined carbon steel pipestainless steel productsstainless steel pipe
ID:20102928446
Category: Oil & Gas Piping and valves
MOQ:1.00 Piece(s)
plastic-lined steel pipeComposite Pipesfull anticorrosive steel pipePipelinesPressure water pipeButt weld pipelinebutt weld composite pipe
L/CT/TD/PWestern UnionPaypalMoney GramOthers

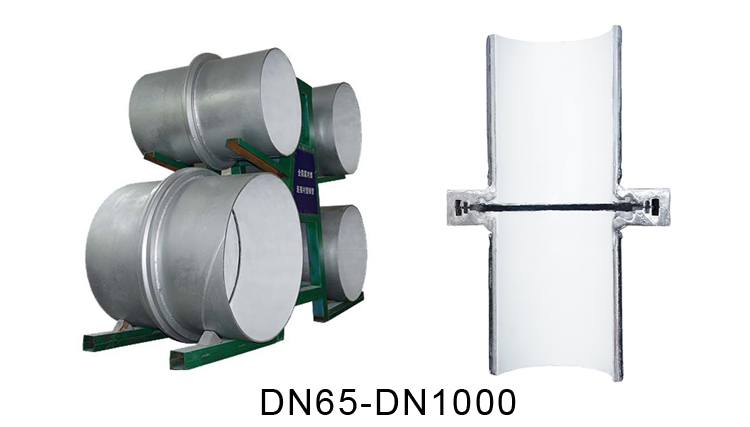

Size | DN65-DN1000 |
Material | Base plpe: carbon steel pipe External corrosion protection: 2PELining pipe:PE, PE RT ,PP,VPVC,CPVC |
Standard length | Fixed length: 6m, 12m (non. fixed length within 12m can be customized) |
Conveyed medium | Cold water, hot water, corrosive medium |
Working temperature | Cold water≤55"C Hot water ≤75"C |
Connecting method | Butt weld connection |
Standard | GB/T28897-2012 Steel-Plastic Composite Pipe |
Working pressure | 1.6MPa, 2.5MPa,4.0MPa, 8.0MPa |
Features | 1.Full corrosion resistance 2. The injected plastic layer on the flange sealing surface is of embedded structure, with a bonding strength of 50N/cm. 3. Corrosion prevention treatment (2PE) can be applied to the outer surface of the pipeline. 4.The lining plastic pipe is integrated with the plastic layer on the sealing surface of the flange plate. |
corrosive medium, Pressure water pipeline,sewage pipeline.
①Chengdu Common Tube Group Co., Ltd with a tradition of innovation for more than 18 years, has more than 600 employees and is among the leading manufacturers of pipe fitting installation technology for industrial, commercial and residential projects.
②Common Tube was founded for the purpose of let more and more consumers use stainless steel pipe,mainly offers stainless steel pipe and fittings and full anti corrosive plastic lined carbon steel pipe and fittings. the most important is that customized products is available;
③Common Tube has obtained the ISO 9001, ISO 14001,GB/T 28001 certificates.And stainless steel pipe and fitting can meet NSF water pipe standards.
④It has 51 patents, among which 9 invention patents,having the title of "demonstration base of stainless steel pipeline connection technology" and "national research and development center of plastic-lined steel pipe"
We passed the "three standards" management system certification by CHINA QUALITY CERTIFICATION CENTER : GB/T19001-2016/ISO9001:2015; ISO 45001:2018; GB/T 24001-2016 / ISO 14001:2015
