Product description

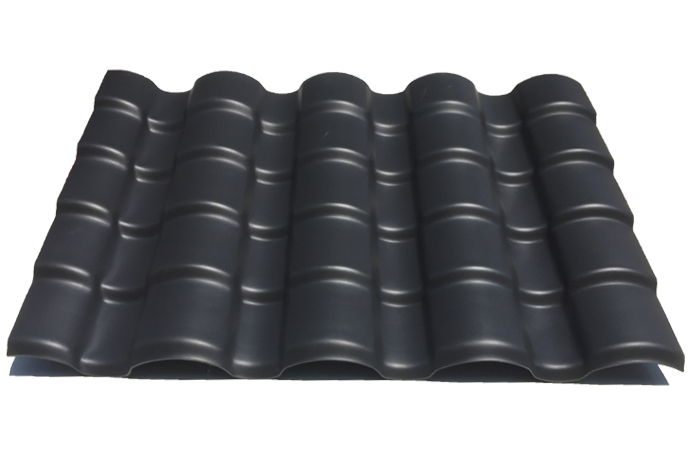

Antique roof tile adopts advanced co-extrusion technology,the surface layer material is high weather resistance engineering resin ASA (acrylonitrile, styrene, acrylate) ,main body composite with corrosion resistance polyvinyl chloride resin and other materials.With the features of long lasting color,anti-impacting,isolation,Elegant shape with traditional Chinese elements in coloring.

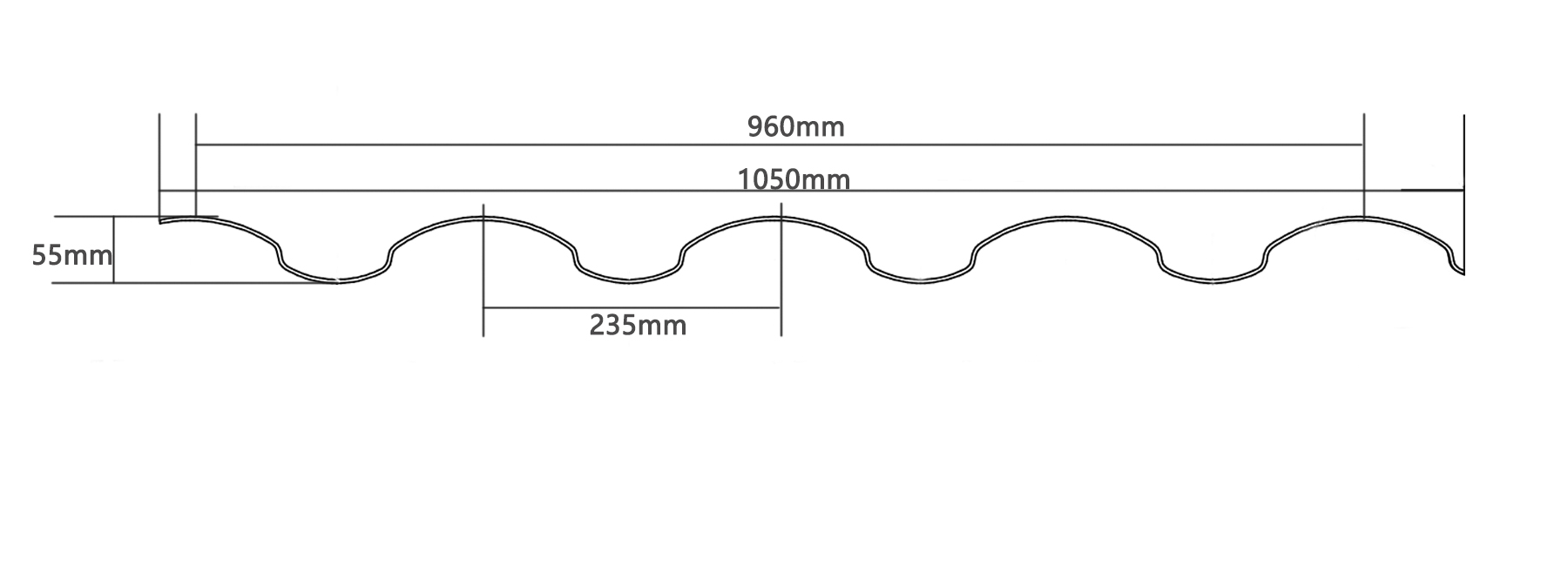

Specification
| Material | ASA resin, PVC, and other additive materials | ||
| Thickness | 2.5mm | 3.0mm | |
| Total width | 1050mm | ||
| Valid width | 940mm | ||
| Wave space | 240mm | Wave height | 55mm |
| Pitch | 125.6mm | ||
| Length | times of pitch 125.6mm; Max 5.7776m/20GP 11.806m/40GP | ||
Features
| Corrosion resistance | Can resist long term acid,alkali ans salt corrosion.Tests have proved that there would be no chemical reaction after soaking in salt and alkali or other acid under 60%.It is ideal for application in areas where is acid rain. | ||
| Sound insulation | ASA synthetic resin tile have noise absorption when suffered heavy rains and strong winds. | ||
| Excellent heat insulation performance | PVC has a very low heat conduction coefficient of 0.325w/m.k.Even without adding heat insulation layer,the heat insulation of ASA roof tile can still be excellent. | ||
| Fireproof performance | Fireproof performance≥class B1 level tested by the national testing department. | ||
| Excellent loading ability | It will not be damaged in large temperature variation and all year frequent wind,rain and snow.It will not be crack or damaged when the support space is 660mm and 150kg of load is applied. | ||
| Good impact resistance | Tested proved that will no crack or breakage with 1kg steel ball falling on it freely from the height of 3m. | ||
| Eco-friendly | There is no radioactive elements,all products can be recycled,meets the requirement of environment protection. | ||
| Self-cleaning performancee | The surface is dense and smooth,with “dust and effect”,uneasy to absorb dust,can be cleaned by rain,also uneasy covered by snow. | ||
Acceessory

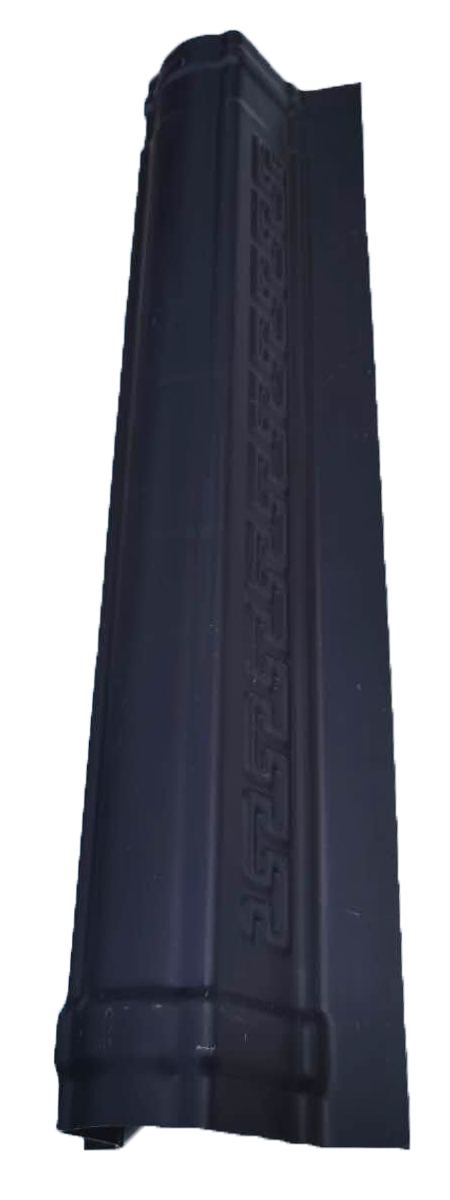

Top ridge tile |

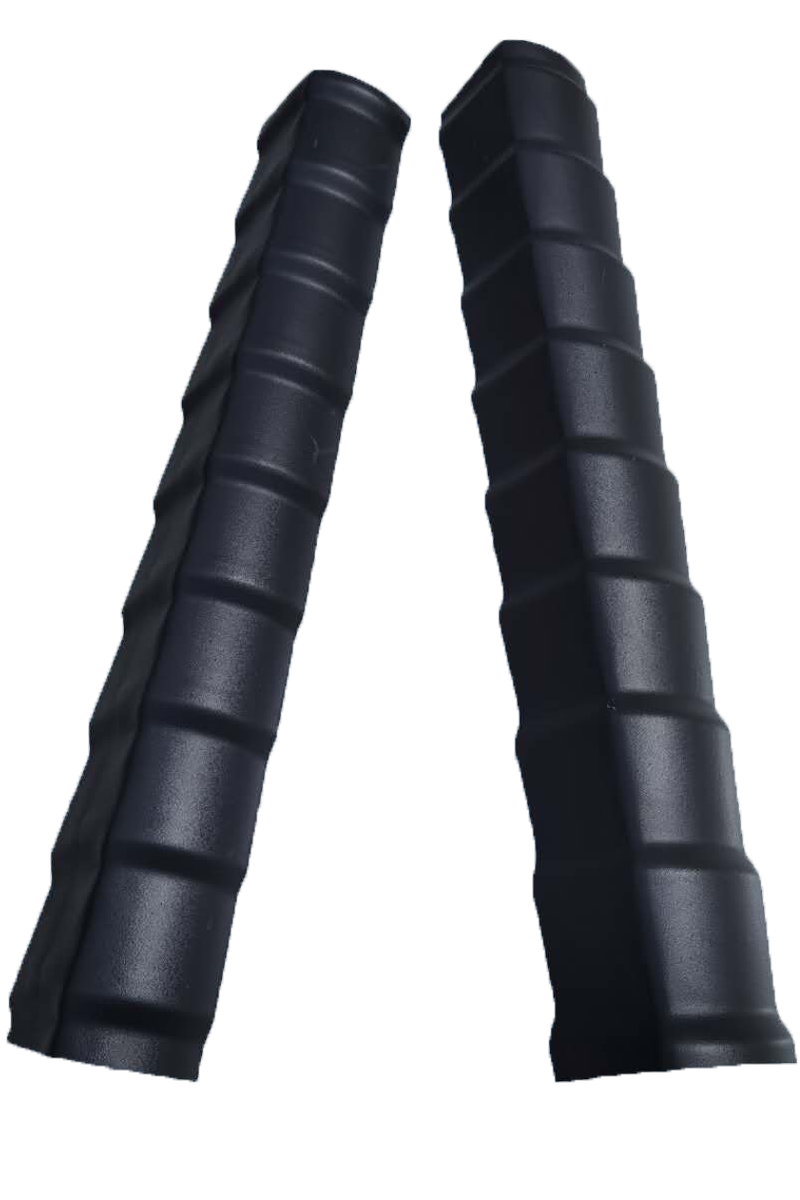

Left/ right side cover |

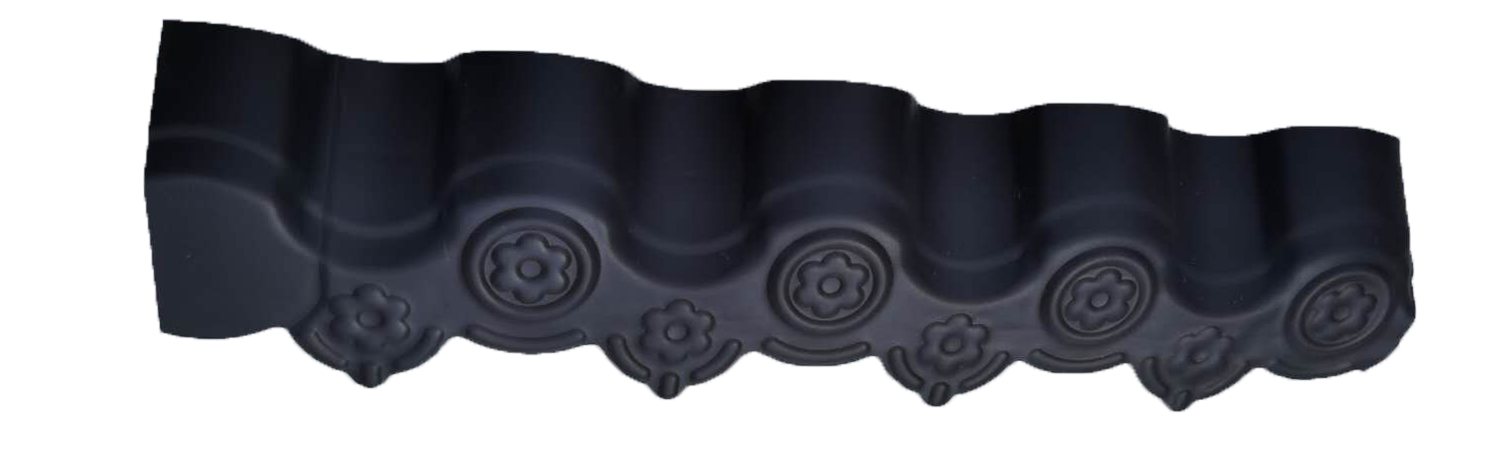

Draining board |
Application

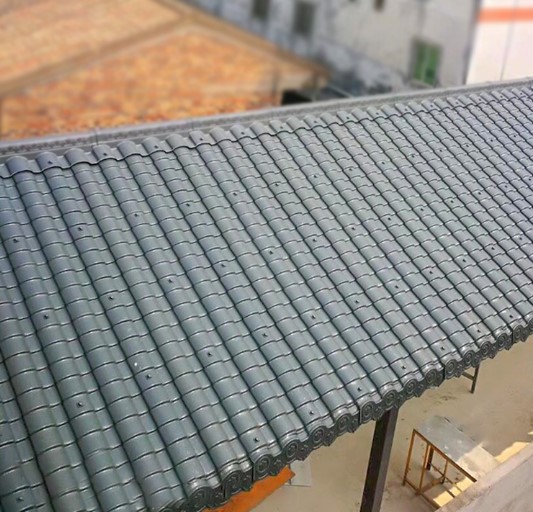

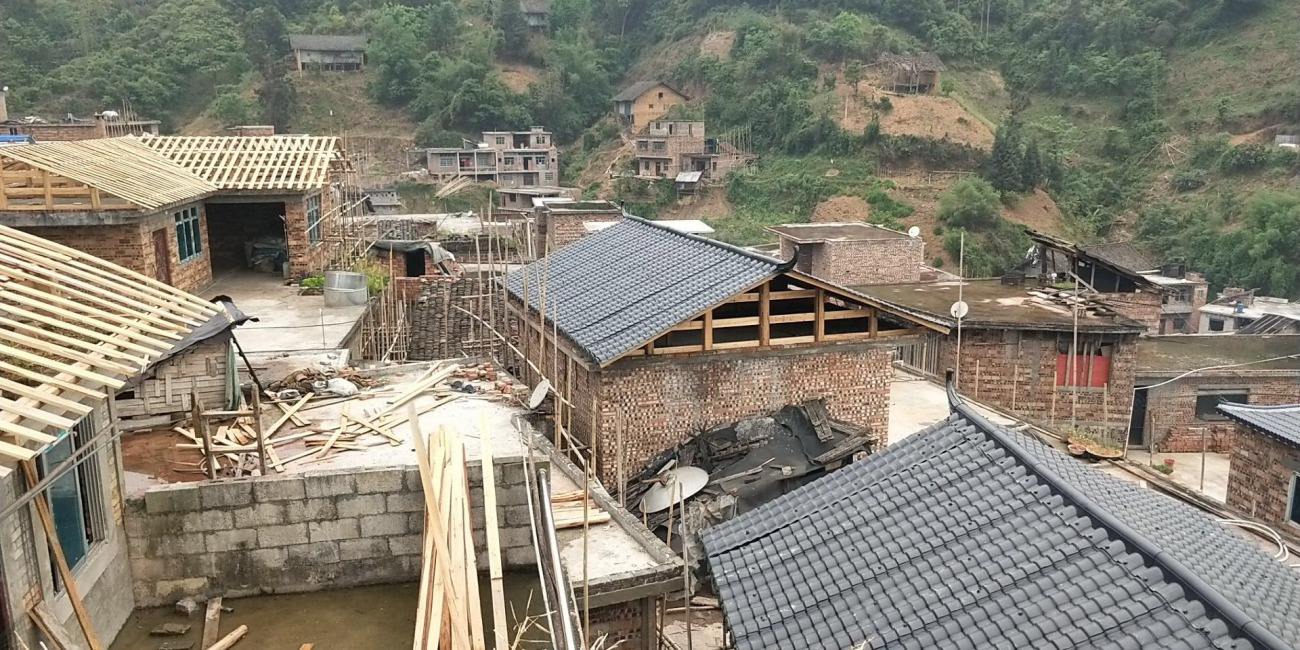

Widely used for ancient roof top.Beautiful countryside,old house renovation,reconstruction,tourist attraction,villa,residential building,mobile house,flat-to-slope roof changing,weather shed,sun sheds,car parks.
FAQ
Q1. Capacity?
ASA synthetic resin tile production line’s output is 13000 sqm/day.
Hollow tile production line’s output is 3600 sqm/day.
Q2. What makes our product different from others?
Two patents make our products more reliable than others.
Q3. Can you provide samples before confirming the order?
A: Yes, we are happy to send you samples for testing purpose.
Q4.Can you customized my roof type ?
Yes,it can be customized ,please provide your roof type design or post samples to us .
Q5. What is your MOQ ?
Customized product 2000 sq.m, common product 1000sq.m
Q6. How long is the production lead time?
Usually,7-10days(20GP)
Q7. What is your payment terms?
T/T, L/C, Western Union, Paypal,etc.
30% deposit in advance and 70% balance paid before goods loaded into container. You can also use credit card via Alibaba platform.
Q8. What is your trade terms?
FOB.CIF.CNF, DDP, DDU
