RA2000 Surface roundness measuring instrument machine system supplier factory manufacturer

WALE Company Introduction

SHAANXI WALE M&E TECHNOLOGY CO., LTD, established in 2003, focus on roughness, contour, roundness and cylindricity measuring solution research and development.

With professional engineer team, WALE have dozens of patented technology for product and measuring software copyright.

We have full self-own technology in precision air floating bearing spindle research and mass production capacity,

detector design, measuring data collection and analysis software system, abundant stylus, probe, stylus arm, table fixture systems, instrument design and customized services.

With rich experience in client service cases, WALE provides precision measuring solution for various

industry field manufacturing, supporting client production, technology development and various type measuring request.

Right now WALE is the TOP 1 market occupancy in China, also have deep cooperation in foreign market.

RA2000 Surface roundness measuring instrument machine system features

---Lower cost for daily use and routine maintenance.

---Use natural granite material for the operation table, make the mechanical performance of the instrument more stable and reliable without deformation.

---Self designed roundness measuring instrument analysis software, based on Windows

     system, can realize the functions of data acquisition and eccentricity calibration

     automatically, instrument calibration, and digital filtering.

---Self designed detector, have a more reasonable structure and stable measuring performance.

---Measuring function：Roundness, coaxiality, concentricity, flatness, radial single runout, axial single runout, parallelism, perpendicularity.

---Measuring wave band：1-15upr, l-50upr, l-150upr，1-250upr,l-500upr,15-100upr,15-500upr,2-15upr,or customized.

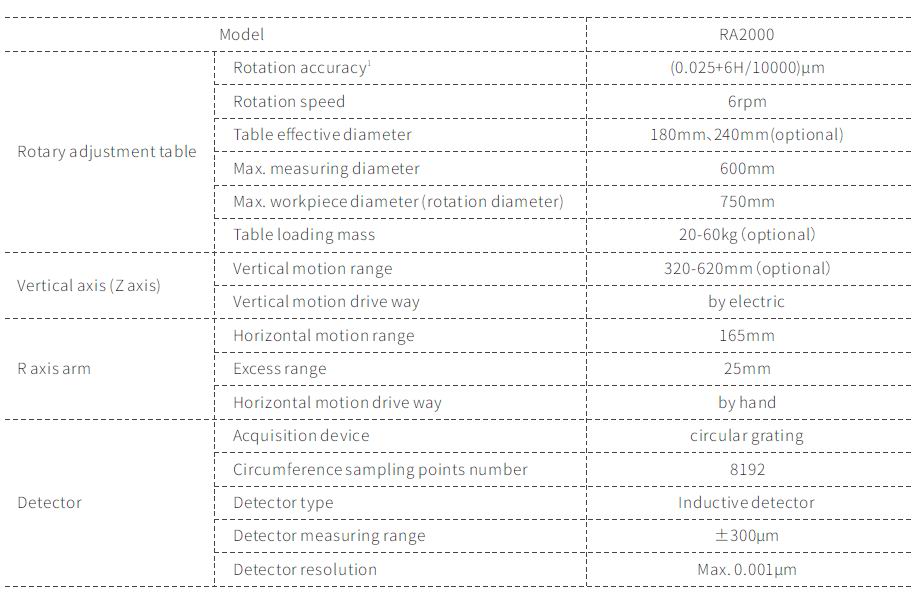

RA2000 Technical Specification

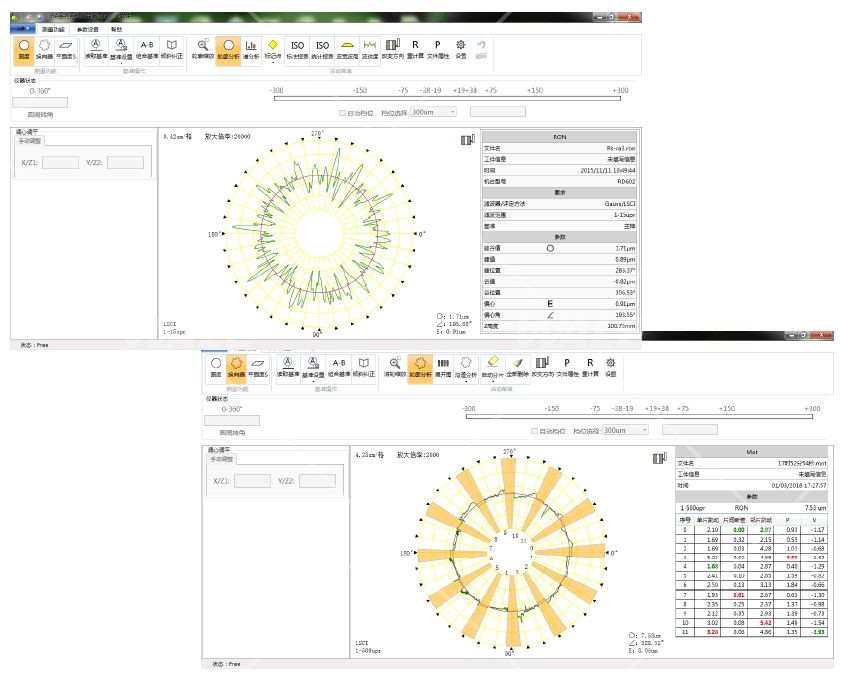

Roundness Measuring Software System

---The key components are made of special stress-relieving alloy materials and special stress-relieving processing

technique, making sure the measuring accuracy is maintained for long work life.

---There are no special requirements for the operation environment and it can be operated in a workshop environment.

---Excellent eccentricity elimination function, convenient for users to make a fast measurement operation.

---For similar workpieces measurement, it can be worked with a fast operation while workpiece is fixed,

no need adjustment.

---Modular design is adopted to minimize the maintenance cost of users.

---Flexible PC configuration, can be customized according to user request.

---Stable and professional system, guarantee the real-time measurement performance.

---The standard report area has abundant evaluation methods set and the parameters in the test report can be added and

    deleted according to request.

---Roundness measuring system can provides contour and spectrum analysis.

---Commutator module is optional.

---The measuring system supports Chinese and English language, Win XP, Win 7, Win 8 and Win 10 Windows system.

---The software can assists centering and leveling adjustment, improve measuring efficiency.

---The ISO statistic report or ISO standard report are optional for the measuring result.

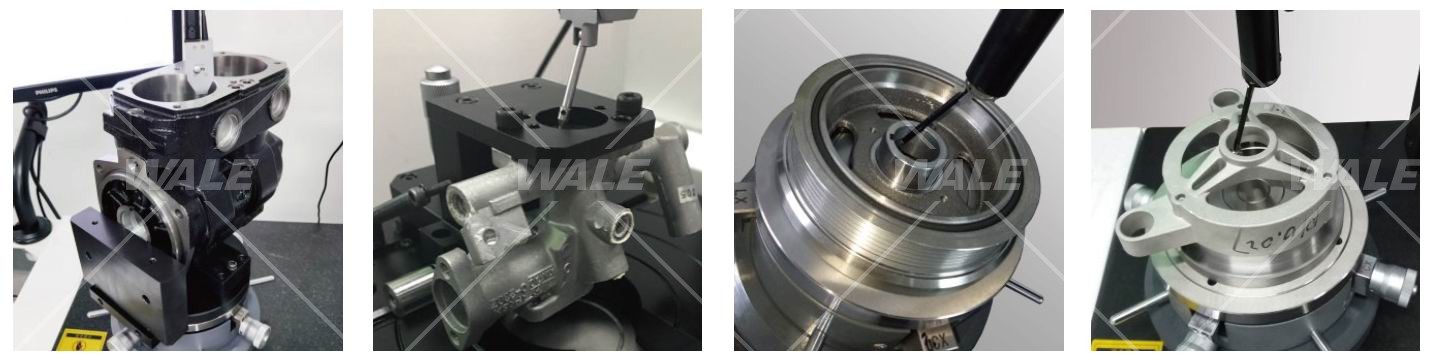

Application Cases

Any inquiry,please contact Ethan, email ethan (at) walechina.com, Tel/Whatsapp: +86 137 7203 6023

WALE Clients
