V-CELL Sealed Lead Acid Rechargeable 12V150ah Solar Energy Gel Battery

ID:20103028958

Electrical & Power Energy Batteries

FOB Price:US$ 139.990 / Piece(s)

MOQ:50.00 Piece(s)

Product Keywords:

Gel Battery12V150ah Solar Gel BatteryRechargeable BatteriesSolar batteryDeep cycle battery

Payment Method:

L/CT/TWestern UnionPaypal

Product Category

Electrical & Power Energy > Batteries

Trademark

VCELL

Product Package

12V150ah Solar Gel Battery: Standard PVC bag, Carton, Pallet

Specification

485*170*240mm

Place of Origin

China

Port

China port

V-CELL Sealed Lead Acid Rechargeable 12V150ah Solar Energy Gel Battery

1. PRODUCT INFORMATION

SPECIFICATION

Model	12GEL150
Voltage(V)	12
Capacity(20°C)	150Ah @ 10HR-rate
Dimensions (L x W x H/T.H)(mm)	485170240mm
Weight(KG)	44.3
Teiminal	RT-08

12V150ah Solar Energy Gel Battery

2. FEATURES AND BENEFITS

1. Designed floating charging service life: 15years (25oC)

2. Safety valve installation for explosion proof ,Sealed and maintenance free operation

3. By using strong grids, high purity lead and patented Gel electrolyte

4. Extremely low self-discharge characteristic

5. Wide operating temperature range from -20oC~55oC

6. Lead Aluminum calcium Tin alloy high energy, prevent corrosion

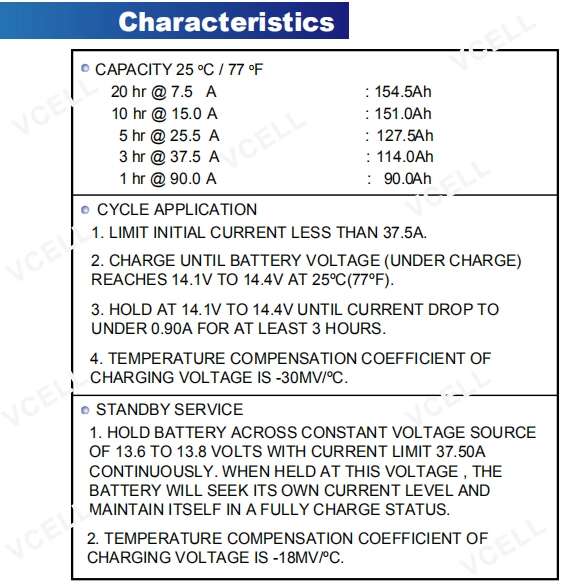

3. Characteristics

V-CELL Sealed Lead Acid Rechargeable 12V150ah Solar Energy Gel Battery

More technical datas about 12V150ah Solar Energy Gel Battery, welcome to contact us.

4. APPLICATION

1. Photovoltaic systems
2. Renewable Energy Systems
3. Railroad Utilities
4. Outdoor control Equipments
5. Electric Utilities
6. Solar/Wind/Hybrid power systems

7. DC power supply

8. Security and fire alarm systems

9. Emergency lighting systems

V-CELL Sealed Lead Acid Rechargeable 12V150ah Solar Energy Gel Battery

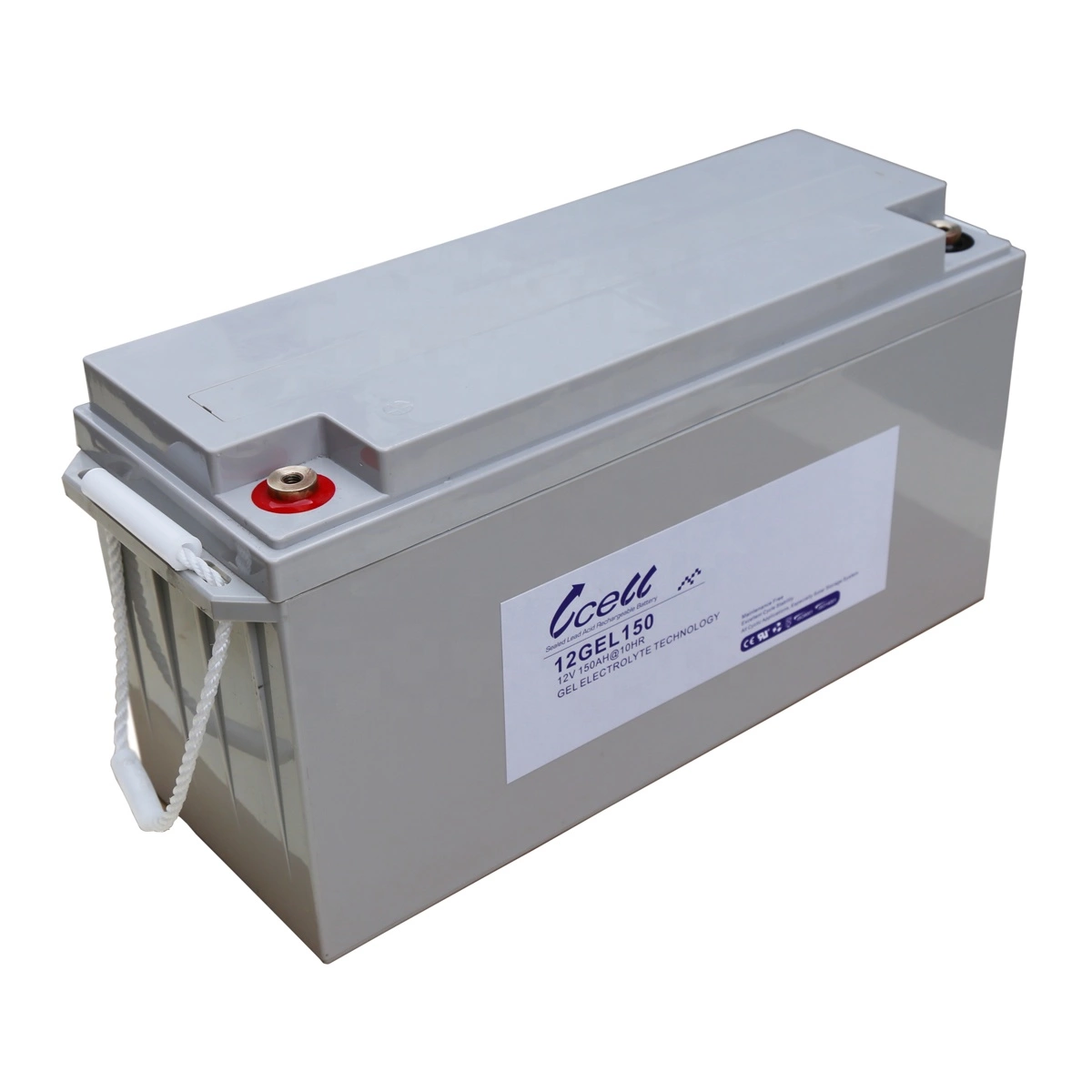

5. PRODUCT PHOTO

V-CELL Sealed Lead Acid Rechargeable 12V150ah Solar Energy Gel Battery

Model: Solar battery 12GEL150

6. More related models for GEL series

Model	Norminal Voltage (V)	Rated Capacity @ 20HR (Ah)	Dimension (in)mm				Weight (Lb) kg	Terminal Type
			Dimension (in)mm
			Length	Width	Height	Overall Height
			Length	Width	Height	Overall Height
"GEL" SERIES, GEL & DEEP CYCLE FOR SOLAR (15-18 Year Design Life for Floating Charge or 650 Cycles @ 80% DOD)
12GEL38	12	38	(7.76)197	(6.54)166	(6.69)170	(6.69)170	(25.57)11.60	RT(M6)
12GEL45	12	45	(7.76)197	(6.54)166	(6.69)170	(6.69)170	(29.98)13.60	RT(M6)
12GEL50	12	50	(9.06)230	(5.43)138	(8.31)211	(8.50)216	(33.73)15.30	RT(M6)
12GEL55	12	55	(9.06)230	(5.43)138	(8.31)211	(8.50)216	(35.49)16.10	RT(M6)
12GEL65	12	65	(13.78)350	(6.57)167	(6.81)173	(6.81)173	(43.43)19.70	RT(M8)
12GEL70	12	70	(10.24)260	(6.61)168	(8.35)212	(8.58)218	(49.16)22.30	RT(M6)
12GEL80	12	80	(12.09)307	(6.61)168	(8.31)211	(8.46)215	(56.88)25.80	RT(M6)
12GEL90	12	90	(12.09)307	(6.61)168	(8.31)211	(8.46)215	(58.42)26.50	RT(M6)
12GEL100	12	100	(13.03)331	(6.81)173	(8.50)216	(8.74)222	(66.8)30.30	RT(M8)
12GEL120	12	120	(12.98)406	(6.81)173	(8.23)209	(9.33)237	(78.71)35.70	RT(M8)
12GEL135	12	135	(13.43)341	(6.77)172	(11.06)281	(11.30)287	(94.80)43.00	RT(M8)
12GEL150	12	150	(19.09)485	(6.69)170	(9.45)240	(9.45)240	(97.66)44.30	RT(M8)
12GEL180	12	180	(20.98)533	(8.15)207	(8.46)215	(8.62)219	(117.51)53.30	RT(M8)
12GEL200	12	200	(20.59)523	(9.41)239	(8.58)218	(8.74)222	(131.84)59.80	RT(M8)
12GEL230	12	230	(20.47)520	(10.55)268	(8.66)220	(8.82)224	(151.02)68.50	RT(M8)
12GEL250	12	250	(20.47)520	(10.55)268	(8.66)220	(8.82)224	(157.19)71.30	RT(M8)
2GEL100	2	100	(6.73)171	(2.83)72	(8.07)205	(8.43)214	(13.23)6	RT(M8)
2GEL200	2	200	(6.77)172	(4.37)111	(12.95)329	(14.37)365	(29.54)13.4	RT(M10)
2GEL300	2	300	(6.73)171	(5.94)151	(13.15)334	(14.37)365	(42.11)19.1	RT(M10)
2GEL400	2	400	(8.31)211	(6.89)175	(12.91)328	(14.37)365	(55.34)25.1	RT(M10)
2GEL500	2	500	(9.53)242	(6.85)174	(12.95)329	(14.37)365	(68.78)31.2	RT(M10)
2GEL600	2	600	(11.89)302	(6.93)176	(12.99)330	(14.37)365	(81.35)36.9	RT(M10)
2GEL800	2	800	(16.14)410	(6.93)176	(12.99)330	(14.37)365	(108.69)49.3	RT(M10)
2GEL1000	2	1,000	(18.70)475	(6.89)175	(12.95)329	(14.37)365	(133.82)60.7	RT(M10)
2GEL1500	2	1,500	(15.79)401	(13.82)351	(13.46)342	(15.08)383	(203.93)92.5	RT(M10)
2GEL2000	2	2,000	(19.29)490	(13.78)350	(13.58)345	(15.08)383	(270.73)122.8	RT(M10)
2GEL3000	2	3,000	(27.95)710	(13.90)353	(13.50)343	(15.04)382	(419.98)190.5	RT(M10)
6GEL150	6	150	(10.24)260	(7.09)180	(9.69)246	(9.92)252	(52.47)23.80	RT(M8)
6GEL160	6	160	(11.77)299	(6.77)172	(8.94)227	(9.09)231	(56.22)25.50	RT(M8)
6GEL180	6	180	(12.05)306	(6.61)168	(8.66)220	(8.90)226	(59.52)27.00	RT(M8)
6GEL200	6	200	(12.72)323	(7.01)178	(8.90)226	(9.06)230	(67.90)30.80	RT(M8)

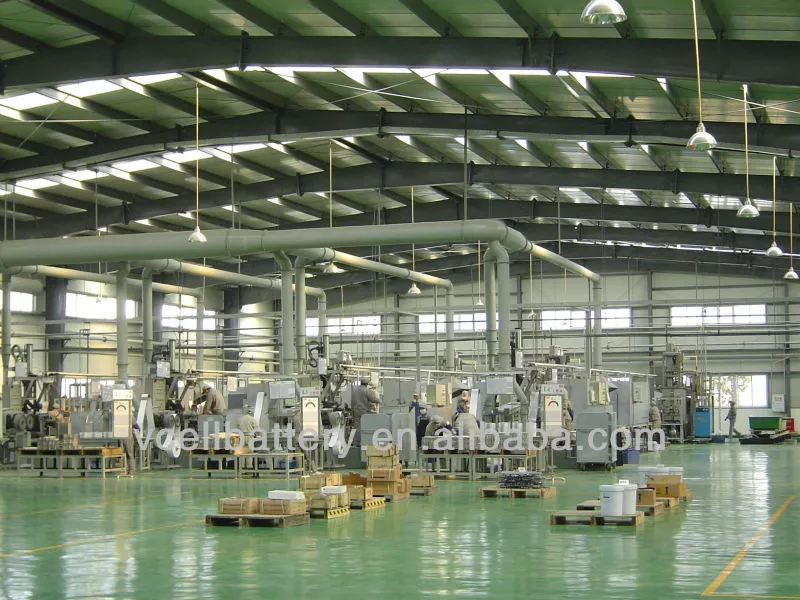

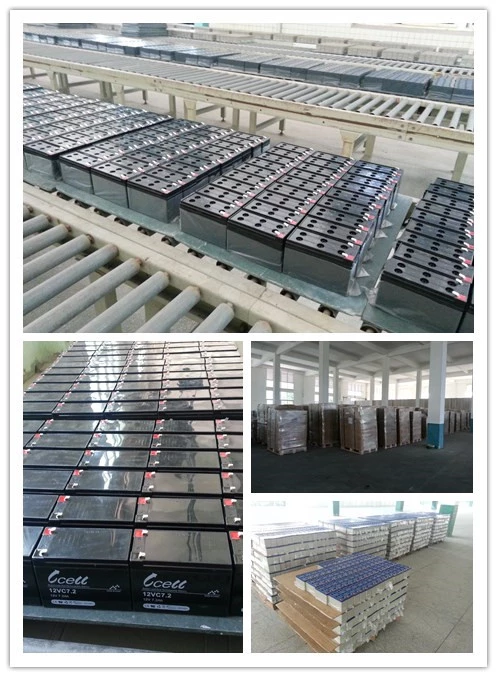

7. FACTORY VIEW

V-CELL Sealed Lead Acid Rechargeable 12V150ah Solar Energy Gel Battery

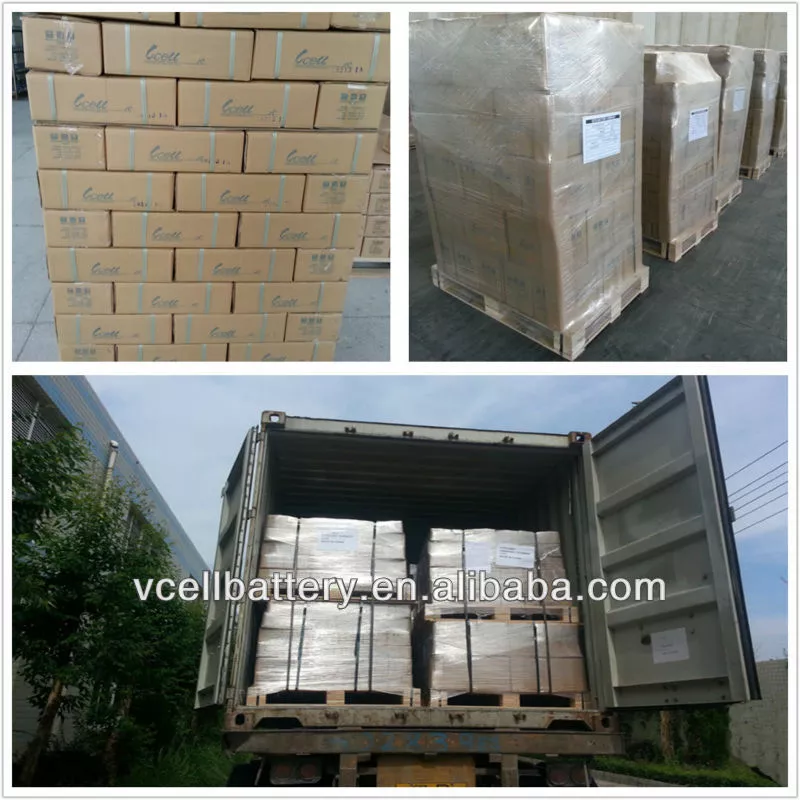

8. PACKING & DELIVERY

V-CELL Sealed Lead Acid Rechargeable 12V150ah Solar Energy Gel Battery

9. COMPANY REVIEW

Energy, The Source Of Power

Wuhan V-cell Energy Technology Co.,LTD. was established in 2005 and specializes in the research, development, manufacture and sale of Vcell brand batteries. The full battery range includes VRLA ( Valved Regulated Lead Acid ) batteries, Golf cart batteries and Primary lithium batteries, which are widely used in telecom, intellectual meters, emergency lighting, alarm systems, security, medical field, cordless devices and wheelchair industries. Our experience and technical excellence are acclaimed in China and world telecom industry.
