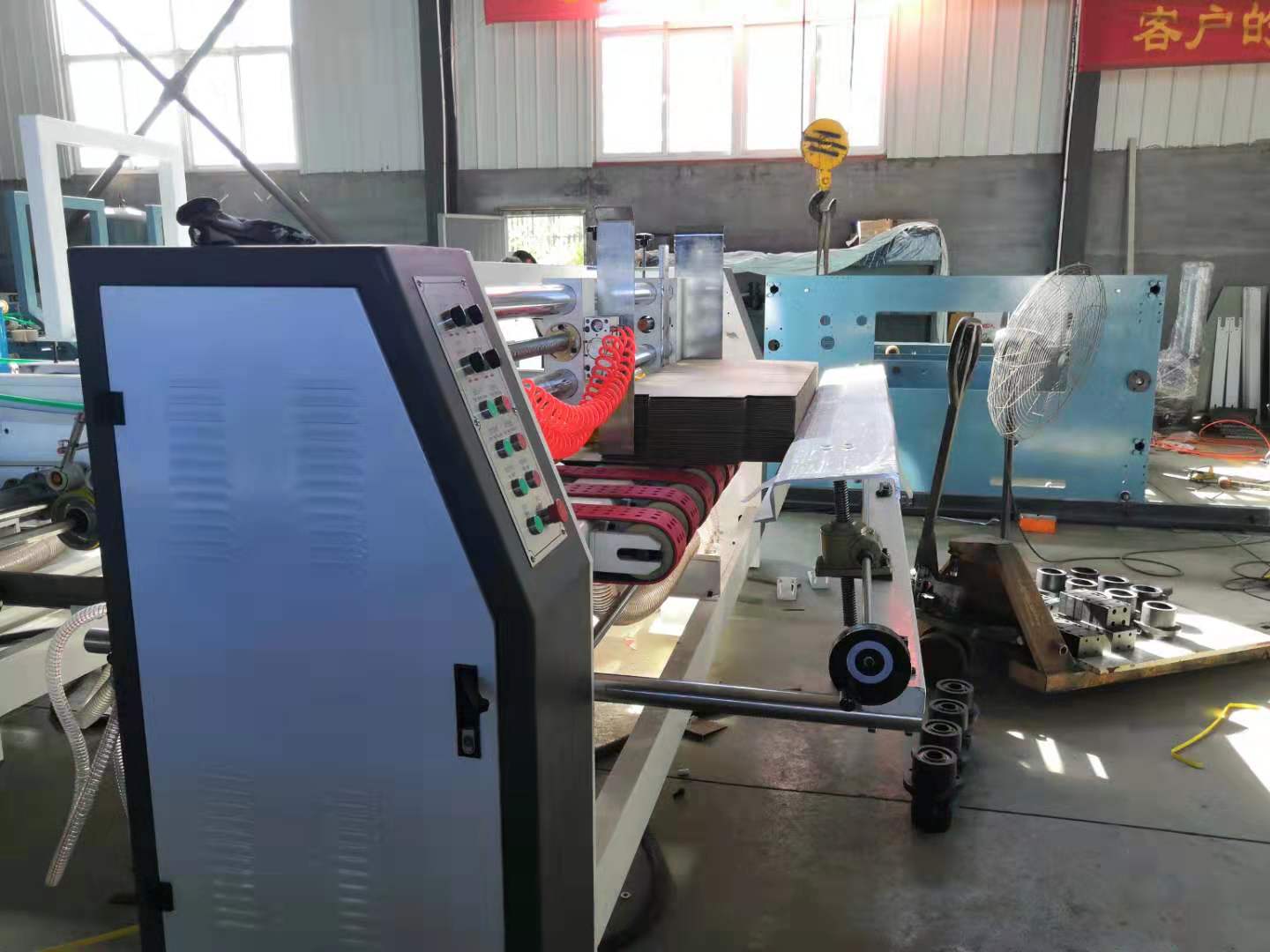

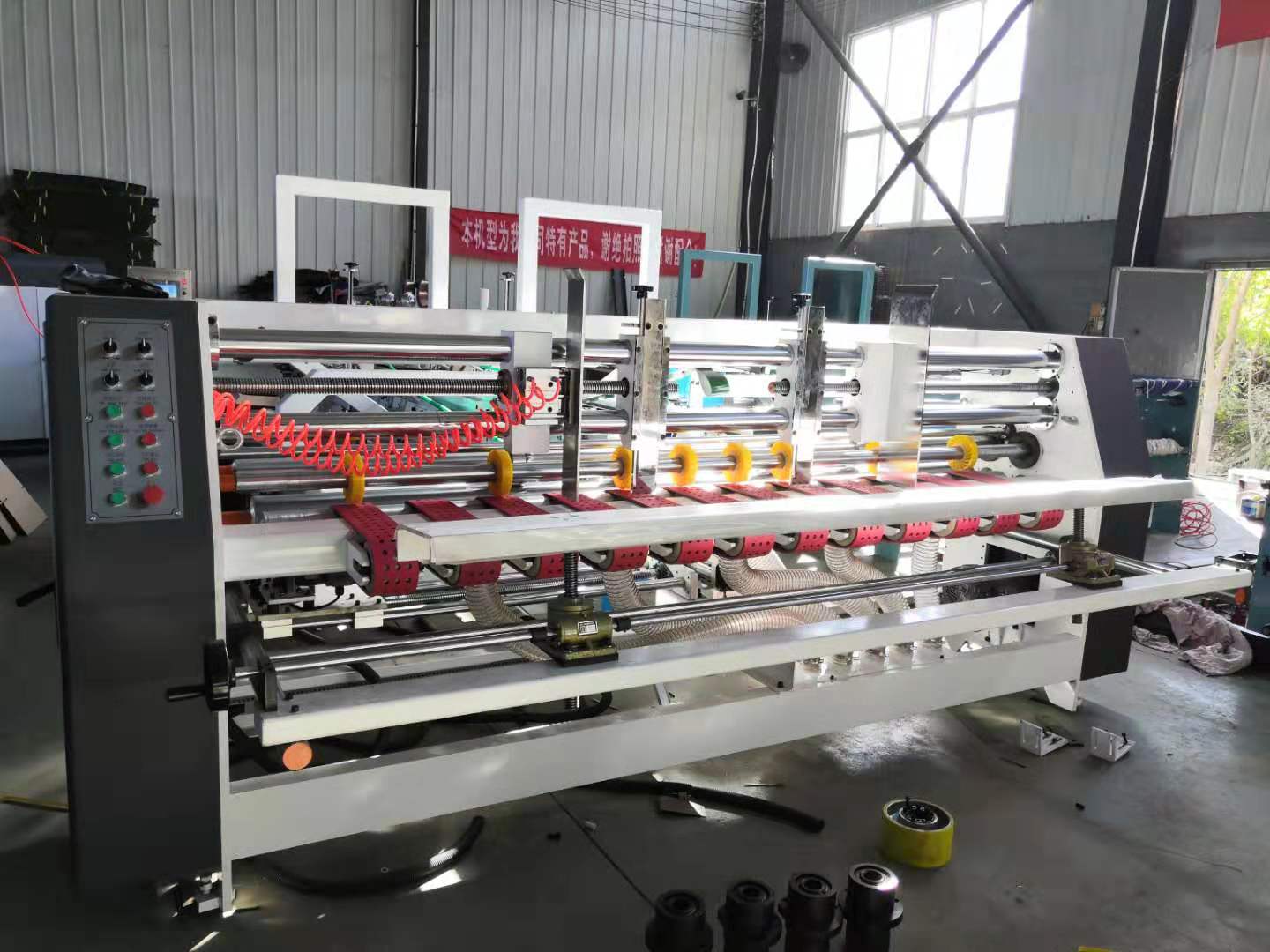

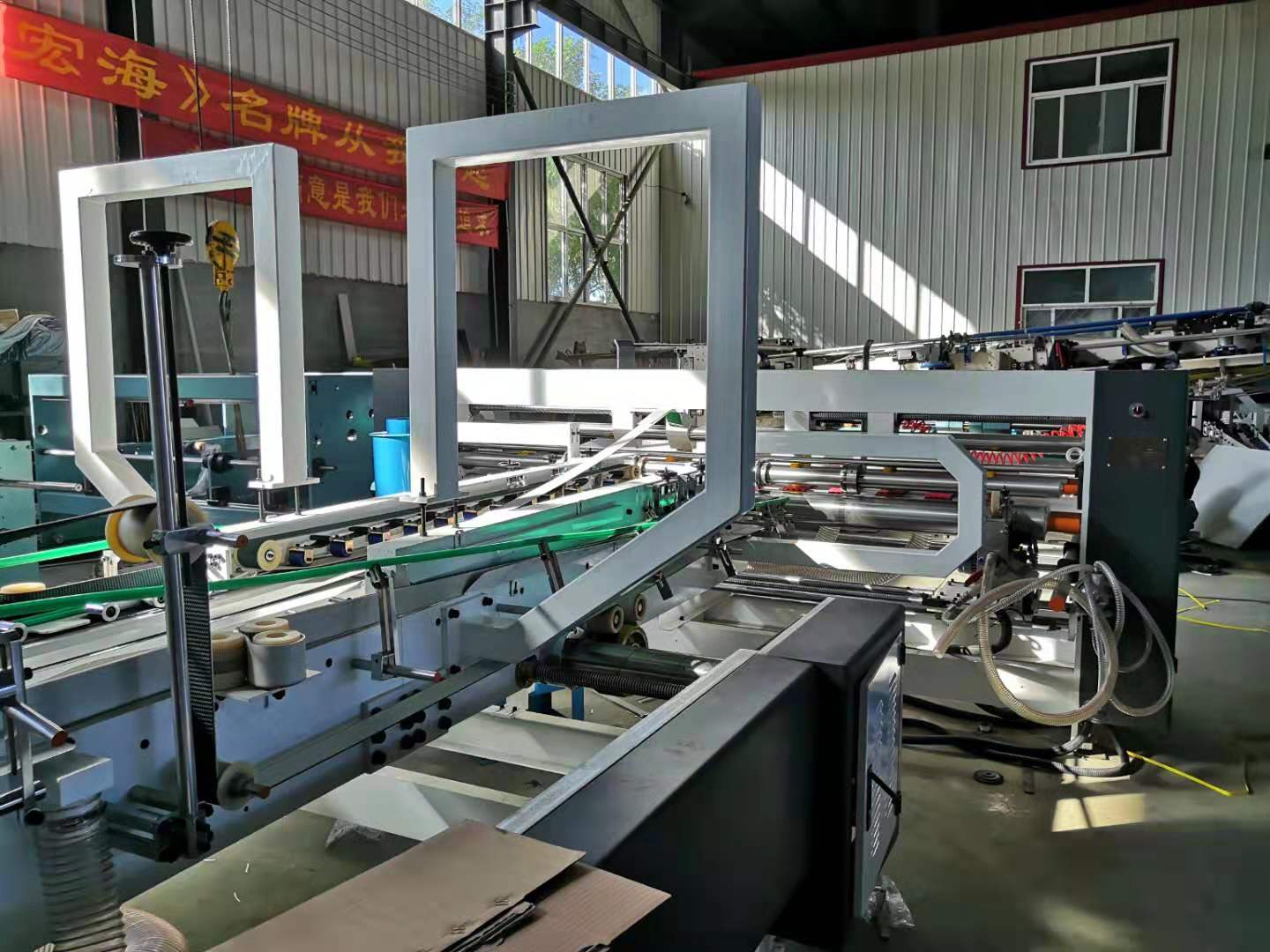

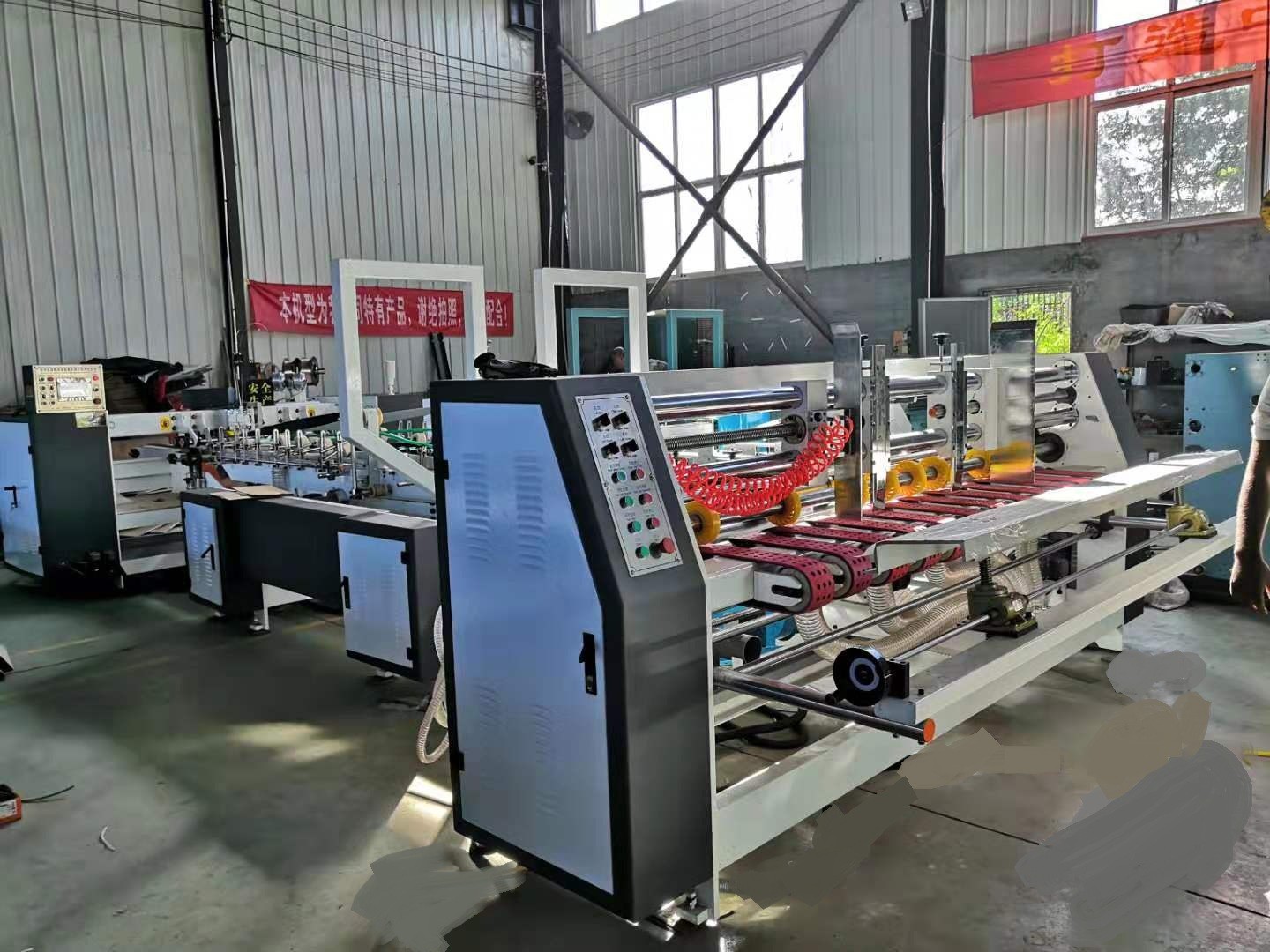

Automatic stitching machine for boxing making
Characteristic:
NP-AFG series Automatic folder Stitching machine composed of 4 parts: vacuum feeding patr, folding part,Stitching part , counting part & stacker part.
.All the motors except frequency conversion motor adopt Taiwan motor.
Converter control the speed,PLC and Touch Screen for easy operation.
Max. gluing speed is 130m/min, average gluing speed is 100m/min
Max. Stiching speed is 60m/min, average gluing speed is 45m/min
Main Technological Parameter
| Model | NP-2400 |
| Max. paperboard(mm) | 900*2200 |
| Min.paperboard(mm) | 300*900 |
| Dimensions(L*W*H)(mm) | 11000*3000*1600 |
| Total weight(kg) | 5500 |
| Power(kw) | 11.5 |
| Paperboard type | 3/5 layer |
| Control | PLC&Touch Screen |
1. Feeding Part
Suction feeding can adapt to the crooked cardboard easily
With electromagnetic clutch and electromagnetic brake system, make feeding part can be separate controlled.
Pressure wheel can be adjusted, board is suitable for 2-8mm thinkness.
Second creasing mechanism, can creasing again for the paperboard which was not creased well
2. Folding Part
Simple structure, Imported rubber belt, automatic folding
With paperboard rectify device and creasing rectify device
3. Stitching part
Reliable stitching machine.
Computer control.
Stiching single nail, double nail, all setting from touch screen
4. Counter & Stacker Part
Counter stacking is simple and reliable
Digital control, easily operation, automatic counting, output accuracy
