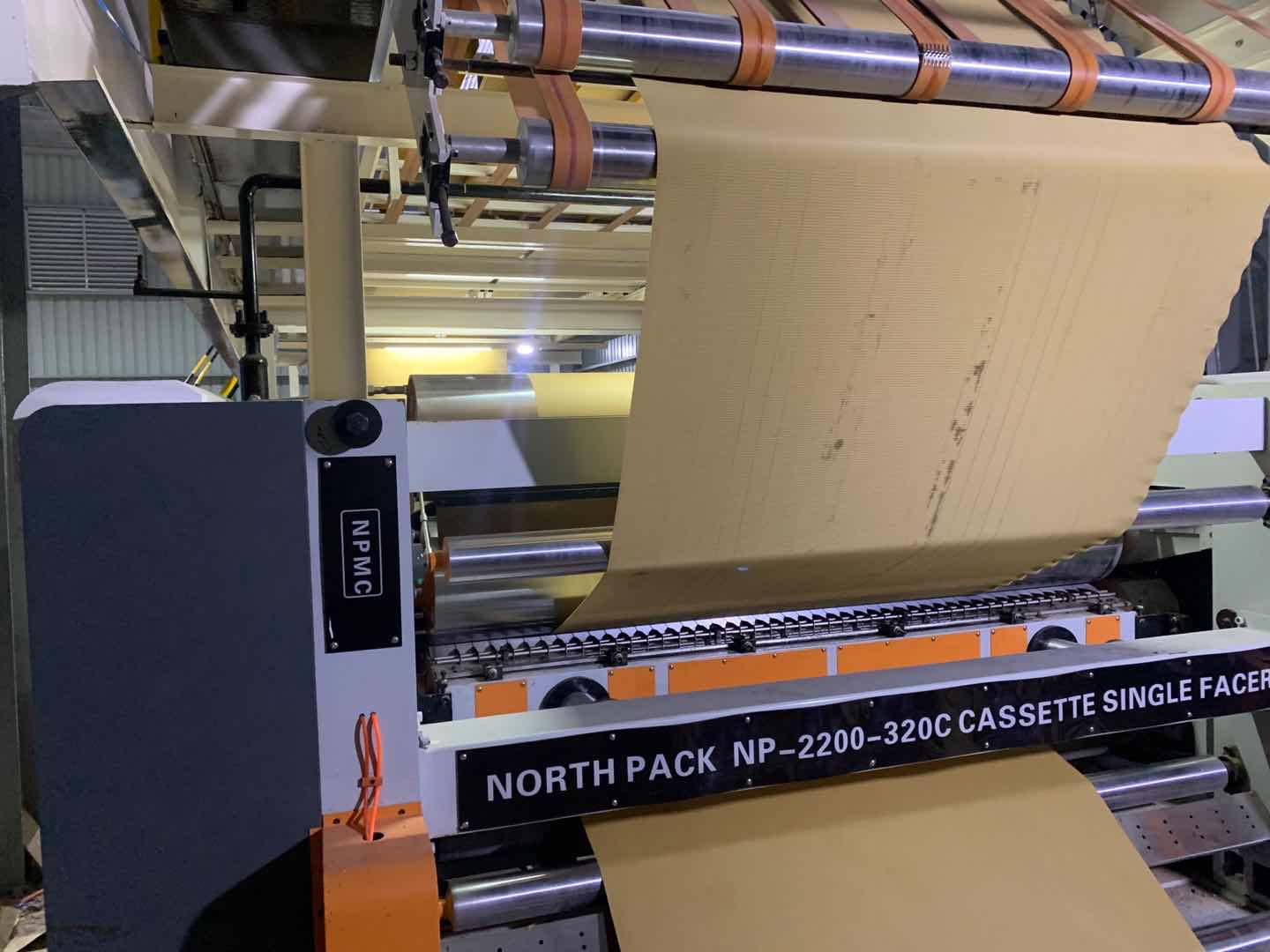

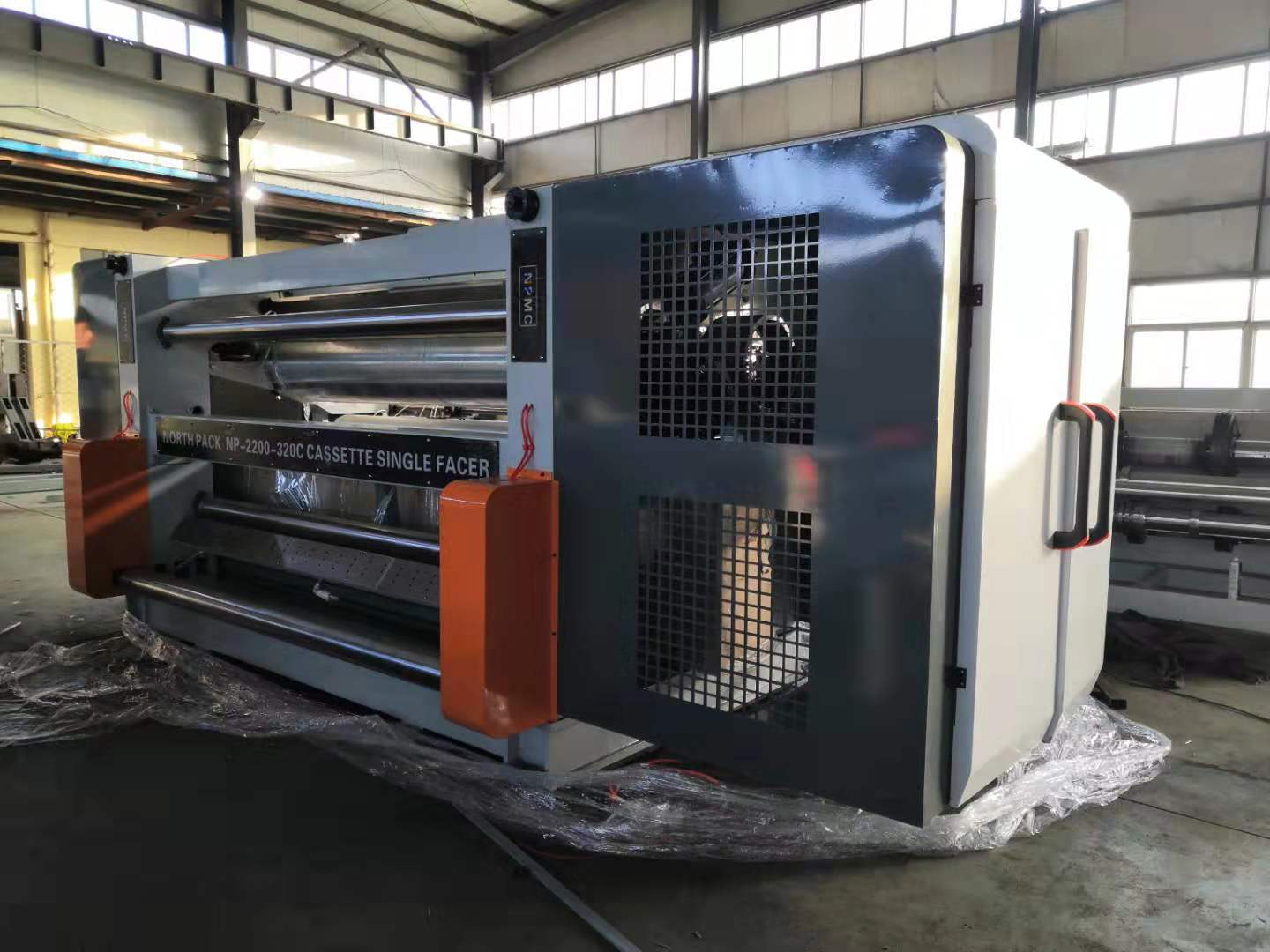

Corrugated Plant Vacuum Cassette Fingerless Single Facer Paper Making Machine
Structural Features:
Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan. With silencer, air supply and electric control focus on the same operation counters, not less than 1.5m away from the main engine, operation side is totally closed and full guarding.
Engine base and wall plate: iron casting structure, thickness of the wall plate: 150mm, adopt independent speed changing box, and gimbal transmission.
Diameter of main corrugated roll: ￠320mm, and are made of 45# steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding, the rigidity of surface is higher than HRC58. Corrugated roll and pressure roll of pivotal section adopt heat resisting bearings which are manufactured by TWB
Pressure roll diameter: ￠320mm, surface are grinding and plate chrome, cylinder control up-down, raw material is 45# medium carbon steel, hardening and tempering
Glue wall plates adopt sliding structure, pneumatic control glue supply and glue back, diameter of the applicator glue roll : ￠242mm, surface are treated by polished and chrome plated.
Press roll adopt ￠160 cylinder
Pre-heater roll adopt seamless steel pipe which is produced by Tianjin Iron & steel group co,.ltd. Diameter ￠400mm, are all connected with metal soft pipe.
Technical parameter:
Working width: 2200mm
Operation direction: left or right
Design speed: 150m/min
Temperature scope: 160-220 C
Steam pressure: 0.8-1.3Mpa
Flute profile (UV type or UVV type)
Parameter of Main roll:
Diameter of corrugated roll: ￠320mm
Diameter of pressure roller: ￠320mm
Diameter of applicator glue roll: ￠242mm
Diameter of preheater roll: ￠400mm
Motor parameter:
Main driving motor: 15KW
Normal voltage: 380V 50HZ
Continues (S1) working system
Wind suction motor: 15KW
Normal voltage: 380V 50HZ
Continues (S1) working system
Glue adjustment reduction box: 100W
Normal voltage: 380V 50HZ
Short time (S2) working system
Glue adjusting gap motor: 2.2KW
Normal voltage: 380V 50HZ
Short time (S2) working system
Glue pump motor: 2.2KW
Normal voltage: 380V 50HZ
Continues (S1) working system
Main bought-in parts and raw material and origin
| No | Main parts name | Origin | Raw material |
| 1 | Wall plate and based wall plate | Self | HT200 |
| 2 | Transmission case | Local factory | QT200 |
| 3 | Rotary joint and metal soft pipe | LUGUANQIU, Shangdong | |
| 4 | Main driving motor | Hengshui | |
| 5 | Bearing | HRB, ZWZ, LYC, WANXIANG | Except corrugated roll and press roll bearing |
| 6 | The shaft with seat | Wuhuan, zhejiang | |
| 7 | High pressure fan | Yinfa, shanghai | |
| 8 | Cylinder | CHINT | |
| 9 | Magnetic valve | CHINT | |
| 10 | Drain valve | Xusheng, zhejiang | Stainless steel |
| 11 | Relay | CHINT | |
| 12 | Inverter controller | Yingweiteng, shenzhen (ENG) |
Wearing parts and spare parts list
| No | Main parts name | Type | Qty |
| 1 | Wind suction copper sheet | 4 sets | |
| 2 | Paper-shaving sheet of pressure roller | 4 sets | |
| 3 | Scraping glue plate | 2 set | |
| 4 | High temperature lubricating grease | 1 barrel | |
| 5 | Metal soft pipe | 1 set thick 1 set thin | |
| 6 | Valve | ￠25 ￠40 | 1 set of each type |
