60W Folding Solar Panel Charger for Laptop

60W Folding Solar Panel Charger for Laptop

Feature:

>18V out charging laptops, 12V batteries, and portable power stations

>Working as soon as sunshine available

>Folds up to 52cm x 38cm for easy storage, with hand strap for super portability

>Soft Edges - Travels well no sharp edges

>Tough durable panels ideal for the 4WD or camping

>1M charge leads to get the panels in the sun and you in the shade

>Heavy nylon PVC case, water resistant for marine use and durable for outdoor activities

>Reinforced eyelets for hanging / mounting, pocket for holding accessories

>High Performance Monocrystaline cells - the most efficient technology available to harness more of the sun power, updated frosted craft anti scratching, anti finger-mark, anti-UV, dirty-proof, no bubble on surface...

Specification:

1. Solar panel peak power: 60W

2. Solar panel type: monocrystalline

3. Solar panel quantity: 2pcs

4. Output: 18V*3.3A (max)

5. Efficiency: around 21.7%

6. Output interface: SAE

7. Extended size: 75*52*1cm

8. Folded size: 52*38*3cm

9. Weight: 1.9kg

10. Color: Camouflage / Black

Materials:

1. Solar panel: frosted PET laminated

2. Fabric (waterproof): 600D PVC

 Accessories:

1. 10 connectors for laptops: (Lenovo, HP, Dell, Samsung, Haier, Asus, SONI, Acer, IBM, Toshiba.)

2. Solar controller with matched cable specially charging for 12v lead-acid battery (optional).

Usage:

Put the solar panel directly under sunshine and make sure it can get sunshine as more as possible.

In order to ensure useful charging, we do not suggest the charging at early morning or late afternoon.

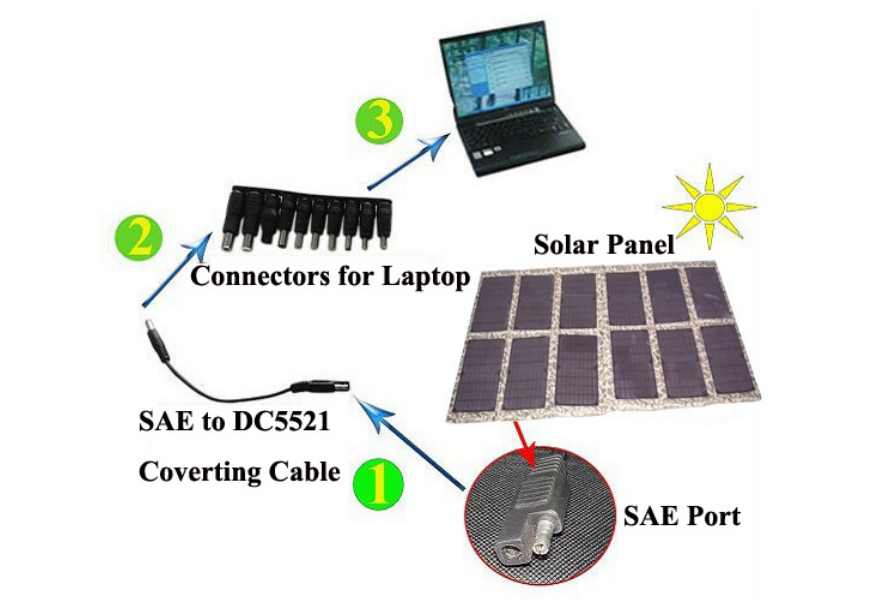

1) 18V out Charging Kinds of Laptops:

Connecting the solar panel charger with the SAE to DC5521 converting cable, then choosing the matched connector to connect with your laptop. There are 10 connectors for brands of laptops, plug in and play. If the laptop’s charging indicator is on, it is charging.

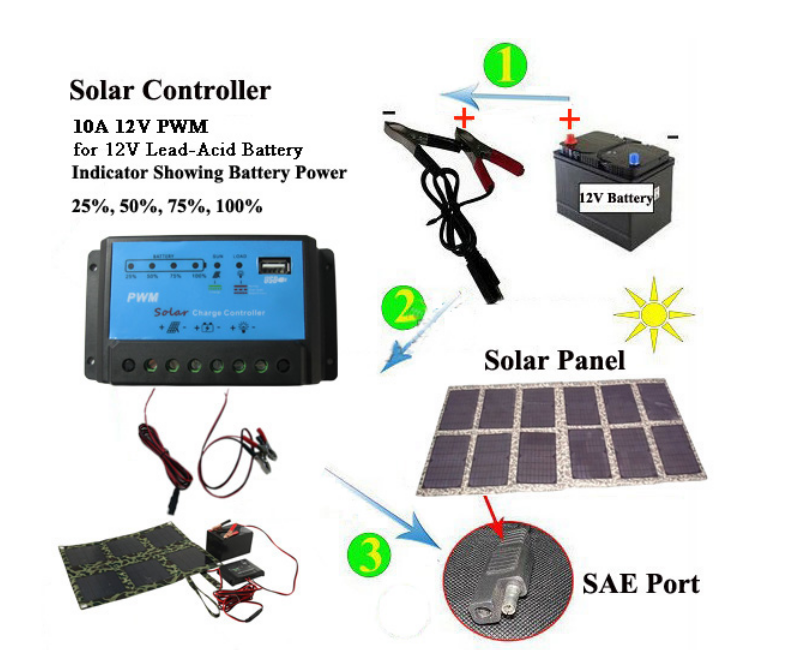

2) Charging the 12V Lead-Acid Battery:

Please do follow below steps to do the right connection. Otherwise, it may be damage to your battery and solar controller.

1. Connecting the solar controller to the 12v lead-acid battery though the matched battery clamps. The alligator clip’s “+” is matched with battery’s “+”, and also for “-”. The indicator on solar controller for battery will be on.

2. Connecting the solar panel to the solar controller. The indicator on solar controller for solar panel will be on, it is for normal charging.

3. When fully charged, the indicator for battery will flash, you can put the solar panel down from the battery. Please firstly move the solar panel with solar controller, then move the solar controller from battery.

(The solar controller is used to maintain your battery in a fully charged state while protecting it from over charge and solar discharge. Please refer to the manual of solar controller to see its more details.)

Remark:

Please be careful when the two battery clamps are connected on battery.

Please don’t let them be together. Otherwise, it will be short-circuit!

Here this kind of solar controller only used on 12v lead-acid battery.

If other battery types, you can contact us for different solar controllers.

3) Charging portable power station:

Before using, please firstly confirm whether your portable power station can accept the charging from 18v solar panel. And whether its input charging port is DC5521 female one.

If yes, after the solar panel is put under direct sunshine, you can find the SAE-5521 male port converting cable in the package to connect with the portable power station. Then you can find normal charging.

Thanks for choosing our folding solar panels.

If any question, please feel free to contact us.
