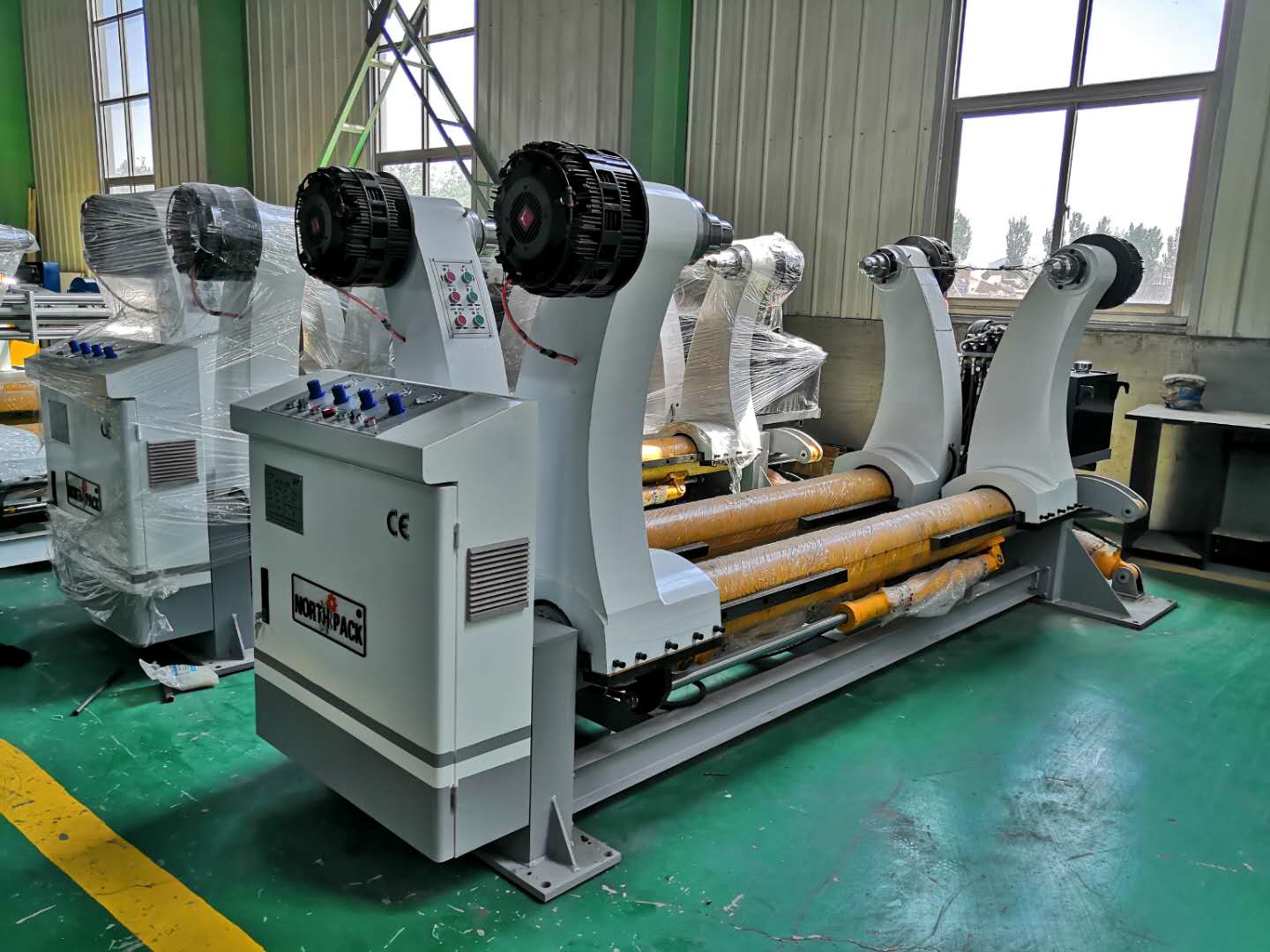

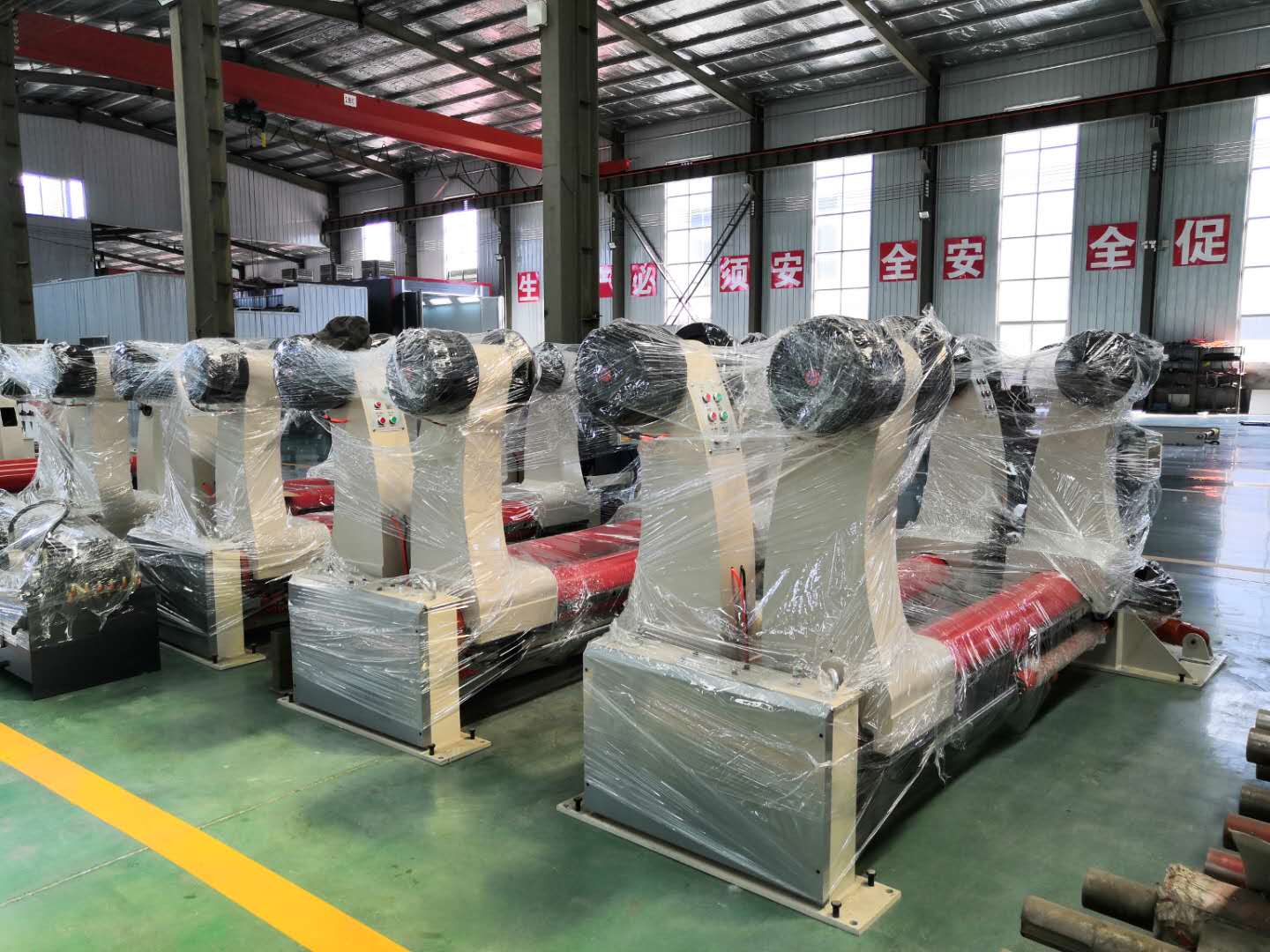

Hydraulic Shaftless Mill Roll Stand For Production Line
The structure is double rotary shafts with four arms; support two paper roll on both arms at the same time, could load or unload paper mill rolls non-stop.
Hydraulic control the paper roll upward or downward, left shift or right shift, tighten or loosen, centering.
Brake adjusting by ventilating disc-type pneumatic brake system. (3point)
Equipped with twin-stage springiness chucks, size: 3/4 inch
Technical parameter:
| 1. | Control type | full hydraulic |
| 2. | Working width: | 800-1600mm |
| 3. | One-side load diameter | ￠350-￠1500mm |
| 4. | One-side load weight | 3500KG |
| 5. | Axis diameter | ￠270mm |
| 6. | Working power requirement | 380V 50HZ |
Hydraulic control system:
| 1. | Working pressure | 16-18Mpa |
| 2. | Cylinder working area (upward or downward) | ￠100X440mm |
| 3. | Cylinder working area (left shift or right shift, tighten or loosen) | ￠63X1300mm |
| 4. | Hydraulic station power | 4KW |
| 5. | Magnetic valve electric require | 380V 50HZ |
Material and origin:
| No | Main part name | Origin | Raw material |
| 1 | principal axis | Tanko | Thick seamless steel pipes, Diameter: ￠242mm |
| 2 | Arms | Local | HT200 casting iron |
| 3 | Wallboard | Jinan steel | Q235A weld assembly Q235A |
| 4 | Bearing | HRB, ZWZ, LYC | |
| 5 | Springiness chucks | XuSheng, zhejiang (sunrise) | |
| 6 | Relay | Schneider, France | |
| 7 | Pneumatic parts | Airtec, Taiwan | |
| 8 | Hydraulic Pump | Zaozhang, shandong | |
| 9 | Brake pump | Hongwei, NingBo |
