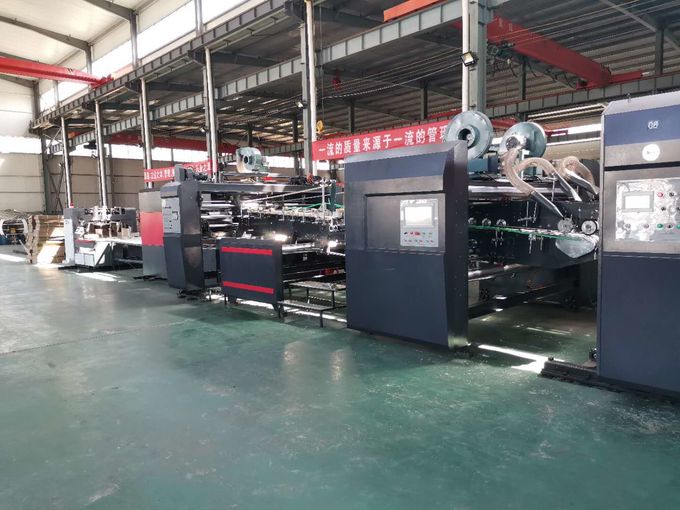

250pcs/Min Bottom Printing Flexo Printer Folder Gluer Inline

250pcs/Min Bottom Printing Flexo Printer Folder Gluer Inline

◆ High precision transfer structure with ceramic vacuum transfer wheel,good registration accuracy.

◆ Suitable for diversified kinds of size of carton making.

◆ Finished carton fishtail +/-1MM

◆ Creasing-slotting unit, prevent creasing line from bursting, better folding.

◆ Counter ejector with down stacking.

◆ Choose international brand electric components and transfer bearings,pass CE certification

Technologic parameter

Features

BOTTOM PRINTING PRINTER

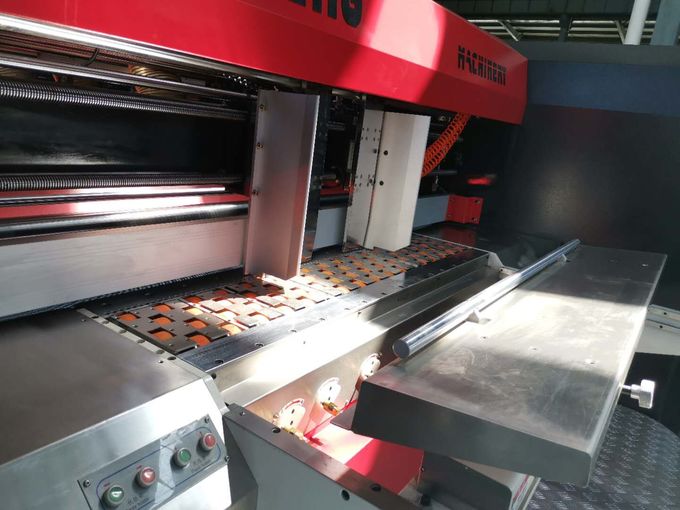

FEEDING SECTION

• ? Lead Edge Feeder,4 Shaft Feed Box
  ? Motorized Side Guides, Feed Gates, Backstop
  ? Sheet Vacuum
  ? Dual Durometer Rubber Feed Roll
  ? Motorized Machine Open-Close
  ? Motorized Pull Roll Nip

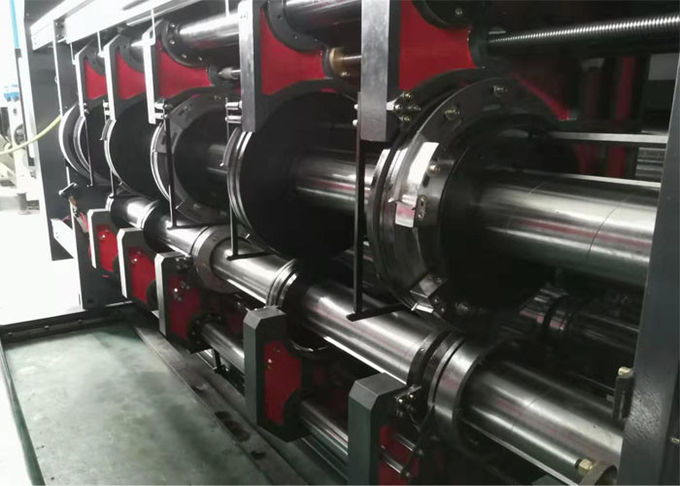

PRINTING SECTION

• ? Pull Rolls with Motorized Pull Collar Gap and Lateral Adjust
  ? Dynamic Balanced Print Cylinders
  ? Ink Loss Sensor
  ? Motorized Print Plate to Anilox Roll Gap Adjust
  ? Motorized Board Caliper Adjust
  ? Vacuum Transfer,Doctor Blade Chamber

SLOTTER CREASER SECTION

• ? Motorized Board Caliper Adjust-Pre-Crease, Score, Trail and Leading Slot Heads
  ? Motorized Lateral Head Adjust
  ? Moveable Center Score and Slotting Heads
  ? Chrome Plated Scoring & Slotting Shafts
  ? Steel to Steel Glue Tab
  ? Solid Universal Shafts with Gearboxes Synchronize Lower and Upper Head Movement on Linear Bearings

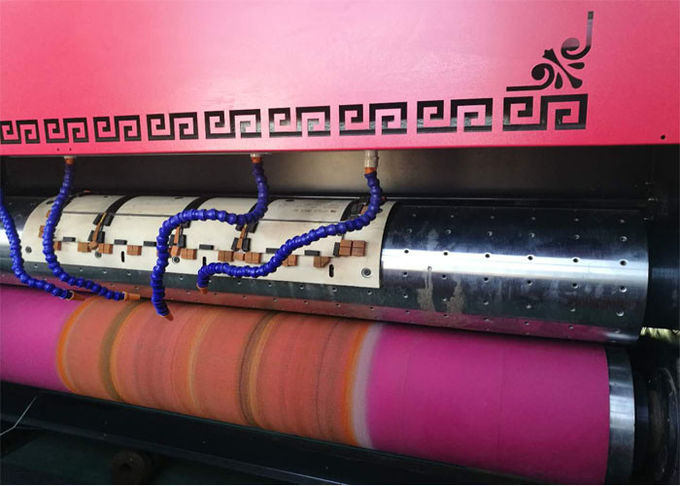

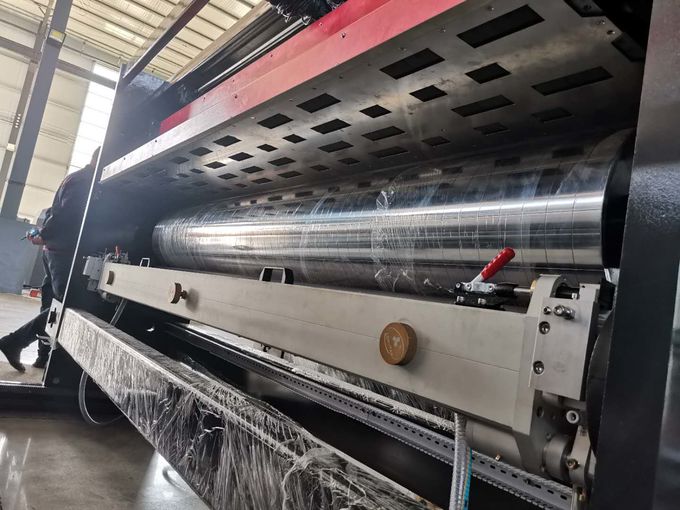

DIE CUTTER SECTION

• ?Automatic return to zero position.

• ?Pneumatic unit locking system, easy to operate.

• ?Automatic dust remover belt is attached.

• ?With auto-restore and auto-compensation function, can effectively extend the using life of rubber.

• ?Motorized of Die roll register by touch screen display

• ?Motorized of Die roll side control by touch screen display

• ?Motorized of Anvil roll clearance by touch screen display

• ?Motorized of Pull roll nip control by touch screen display

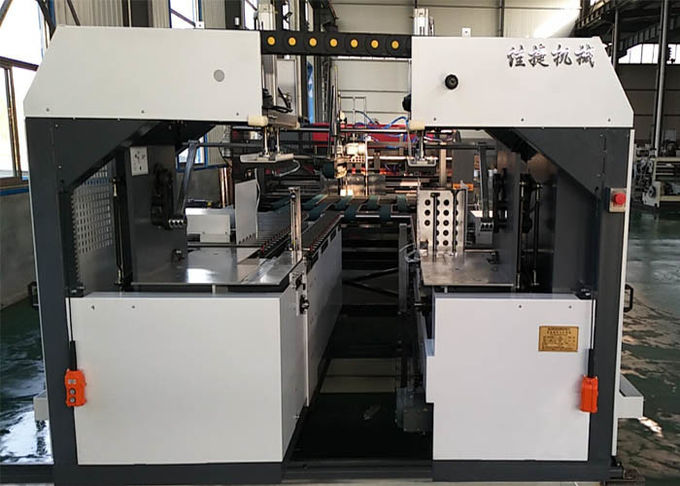

FOLDER GLUER

FOLDER GLUER

• ? Top Folding Belts with Independent Variable Speed Control
  ? Wide Lower Belts
  ? Motorized Belt Gap Adjust
  ? Motorized Glue System Positioning
  ? Center Support Bar in Middle
  ? Folding Guide and Support Bars

COUNTER EJECTOR

• ? Motorized Squaring Plate, Back Stop and Lateral Adjust
  ? Hydraulic Operated Up Stacking Elevator

BUNDLER(OPTION)

? Connect with folder gluer

?Can move in lateral direction

? Pneumatic flapping structure make the carton tidy and easy to bundle

?Special string mouth design, makes the string output smooth and never broken

? Easy to maintain and operate
