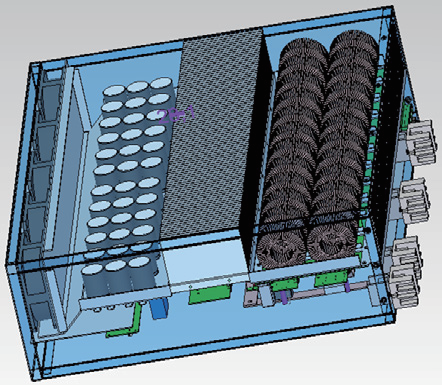

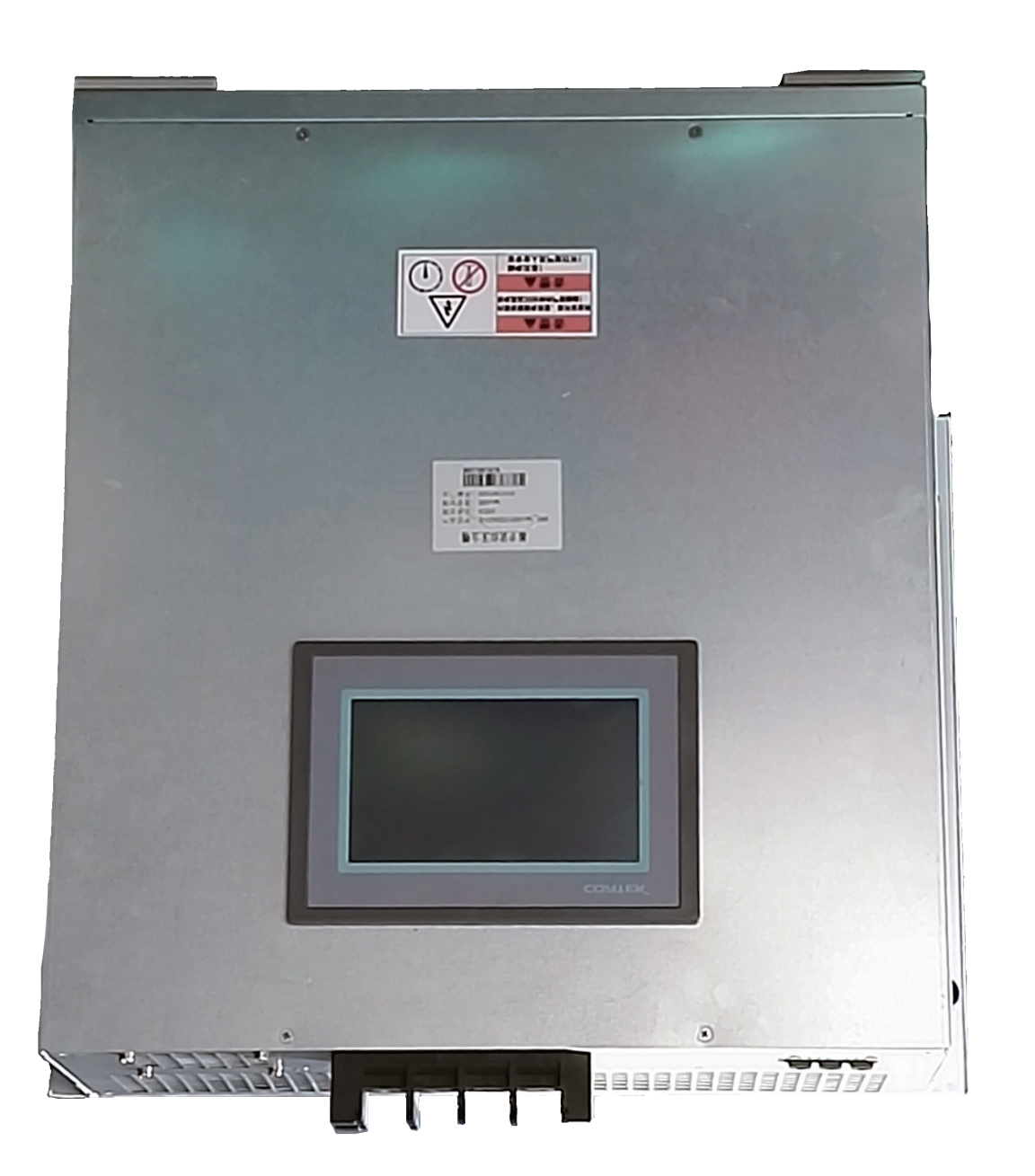

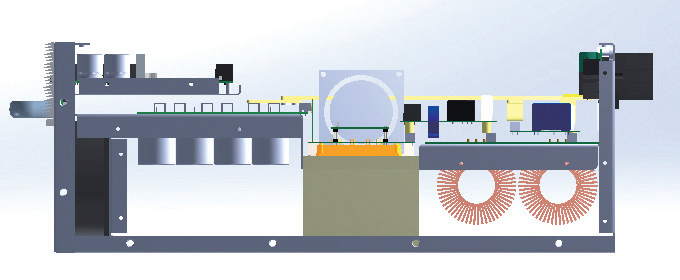

APFActive power filter380V 100A 3L/M
L/CT/TD/PWestern UnionMoney Gram
Quick Details
Place of Origin:shanghai
Model Number:APF 380V 100A 3L/M
Colour:customized
Size:480*200*530
Material:N/A
Power factor:≥0.99
Three-phase balance:≤15%
Maximum power of single cabinet:900A/600kvar/100kvar
Loss:<2.5%
Noise:<60dB
Number in parallel:6
Equivalent switch frequency:80kHz
Performance index | APF (A) | SVG (kvar) | |||||||
Specification | Modular specification | 30 | 50 | 75 | 100 150 | 30 | 50 | 78 | 100 |

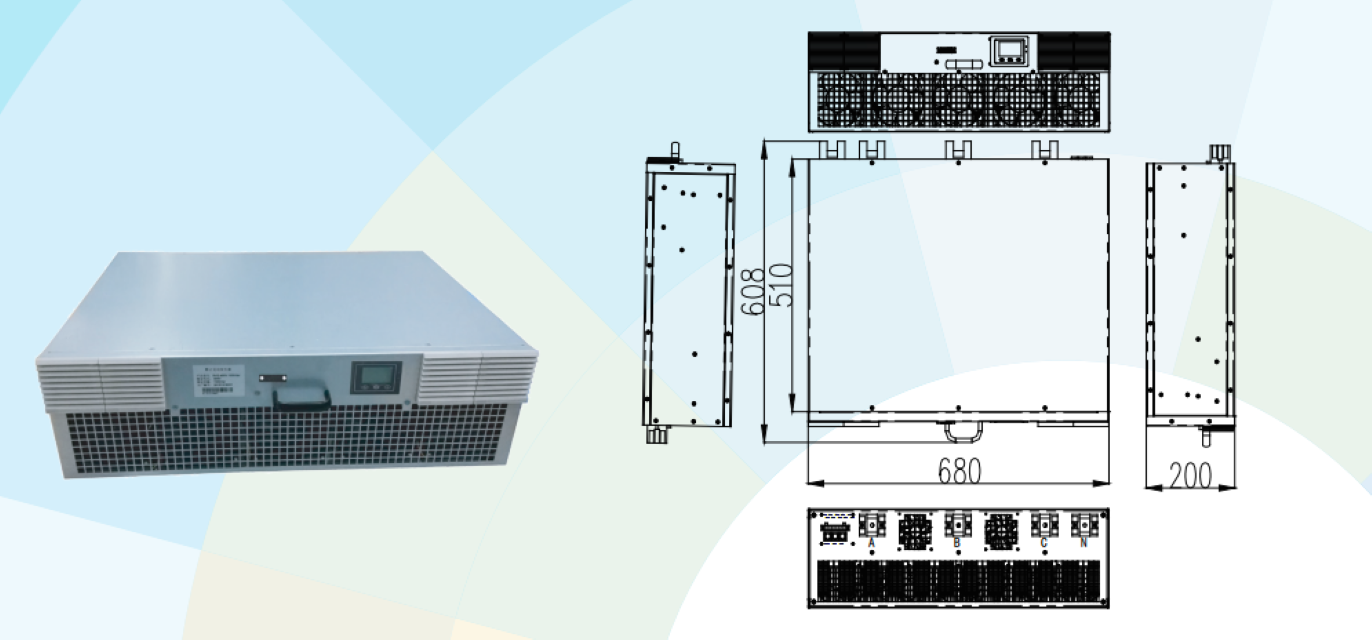

Modular size (W*H*D)(note 1) | 500*220*550 | 500*260*580 | 500*220*550 | 500*260*580 | |||||
\ | \ | ||||||||
Input | Number in parallel | 6 | |||||||
Working voltage | 400V /690V(-20% ~ +15% ) | ||||||||
Working frequency | 50Hz(-10%-+10%) | ||||||||
Current transformer | 100:5 ~ 10000:5 | ||||||||
Device capacity | 800*800 cabinet | w 150 A | w1OOkvar | ||||||
800*800 cabinet | w 300A | w 200kvar | |||||||
(W*D) (note 2) | 800*800 cabinet | w 900A | w 600kvar | ||||||
Functions | Compensation harmonic | 2-50 times | 2-13 times(50% of rated current) | ||||||
Harmonic filter rate | >97%(within the equipment capacity range) | ||||||||
Compensation reactive power | -1—+1 adjustablefwithin the equipment capacity range) | ||||||||
Compensation three-phase imbalance | 100% complete imbalance compensation(within the equipment capacity range) | ||||||||
Communication protocol | Communication mode | RS485, Modbus protocol | |||||||
Communication interface | RS485 | ||||||||
Upper computer software | Yes, all parameters can be set up as the upper computer | ||||||||
Fault warning | Yes, at most record 500 alarm messages | ||||||||
Monitoring | Support independent monitoring/concentrated supervision of each module | ||||||||
Technical index | Full response time | <20ms | |||||||
Active loss | <2.5% | ||||||||
Heat-dissipating method | Intelligent air cooling | ||||||||
Noise | <60dB | ||||||||
Sampling/control frequency | 160kHz | ||||||||
Equivalent switch frequency | 80kHz | ||||||||
Current loop cut-off frequency | 4kHz | ||||||||
Protective function | Overvoltage, undervotlage, overheat, overcurrent, and short-circuit for more than 20 kinds of protection | ||||||||
CT installation position | Load side/grid side optional | ||||||||

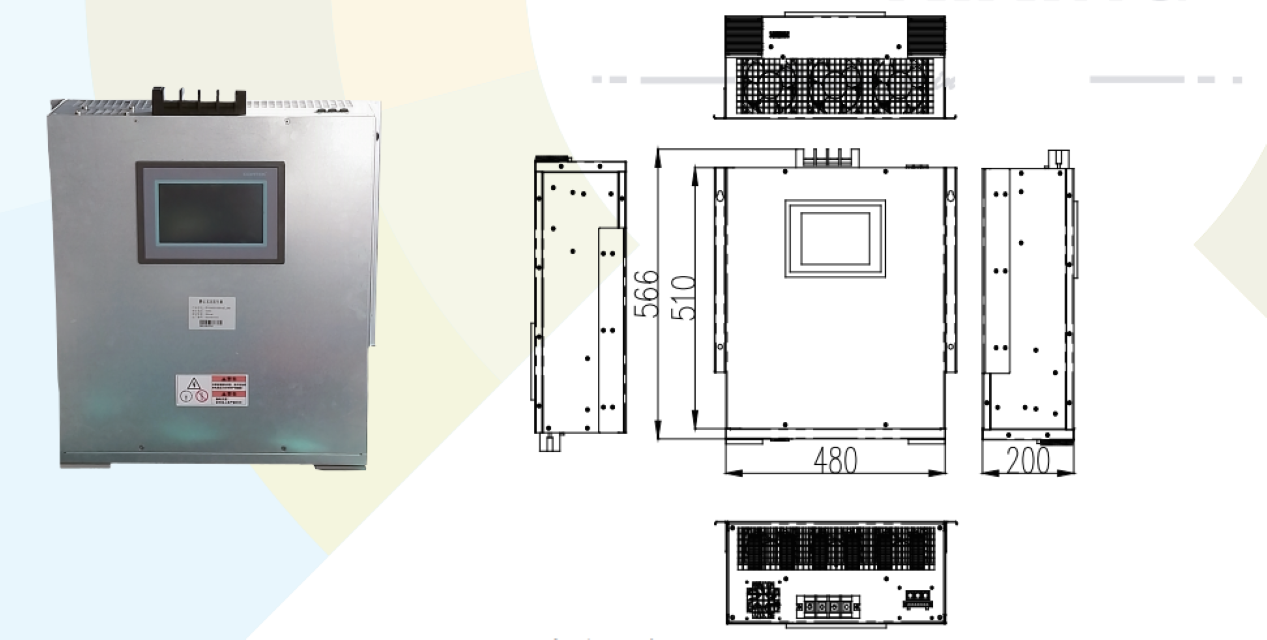

Mechanical property | Wall-mounted size | Wall mounting is the same with the modular size | |||||||
Modular weight | 25kg ( w 75A/50kvar) 50kg ( W 00A/1 OOkvar) | ||||||||
Colors | Galvanized sheet and customized special colors | ||||||||
Environmental requirements | Working temperature | -10°C-+45°C | |||||||
Elevation | <5000m(above 1000m; reduce 1% as increasing 100m) | ||||||||
Relative humidity | <95% no condensation | ||||||||
Protective grade | IP20(customized higher protective grade) | ||||||||
Industrial capacity | Concentrated compensation capacity inquiry table | |||||
Transformer capacity/kVA | Metro, tunnel, high-speed rail and airport | Communication, commercial building, metallurgy and banks | Medical Industry | Automotive manufacturing and ship making | Chemical Industry and petroleum | Metallurgy |
Harmonic current distortion rate | 15% | 20% | 25% | 30% | 35% | 40% |
200 | 50A | 50A | 100 A | 100A | 100A | 100A |
250 | 50A | 100A | 100 A | 100A | 150A | 150A |
315 | 100A | 100A | 150A | 150A | 150A | 200A |
400 | 100A | 150A | 150A | 200A | 200A | 250A |
500 | 100A | 150A | 200A | 200A | 250A | 300A |
630 | 150A | 200A | 250A | 300A | 350A | 400A |
800 | 200A | 250A | 300A | 350A | 450A | 500A |
1000 | 200A | 300A | 400A | 450A | 550A | 600A |
1250 | 300A | 350A | 450A | 550A | 650A | 750A |
1600 | 350A | 500A | 600A | 700A | 850A | 950A |
2000 | 450A | 600A | 750A | 900A | 1050 A | 1200A |
2500 | 550A | 750A | 900A | 1150A | ||
