Electrical & Power Energy Generators
MOQ:1.00 Piece(s)
Diesel GeneratorsAir-Cooled EngineOpen Frame
L/CT/TWestern Union

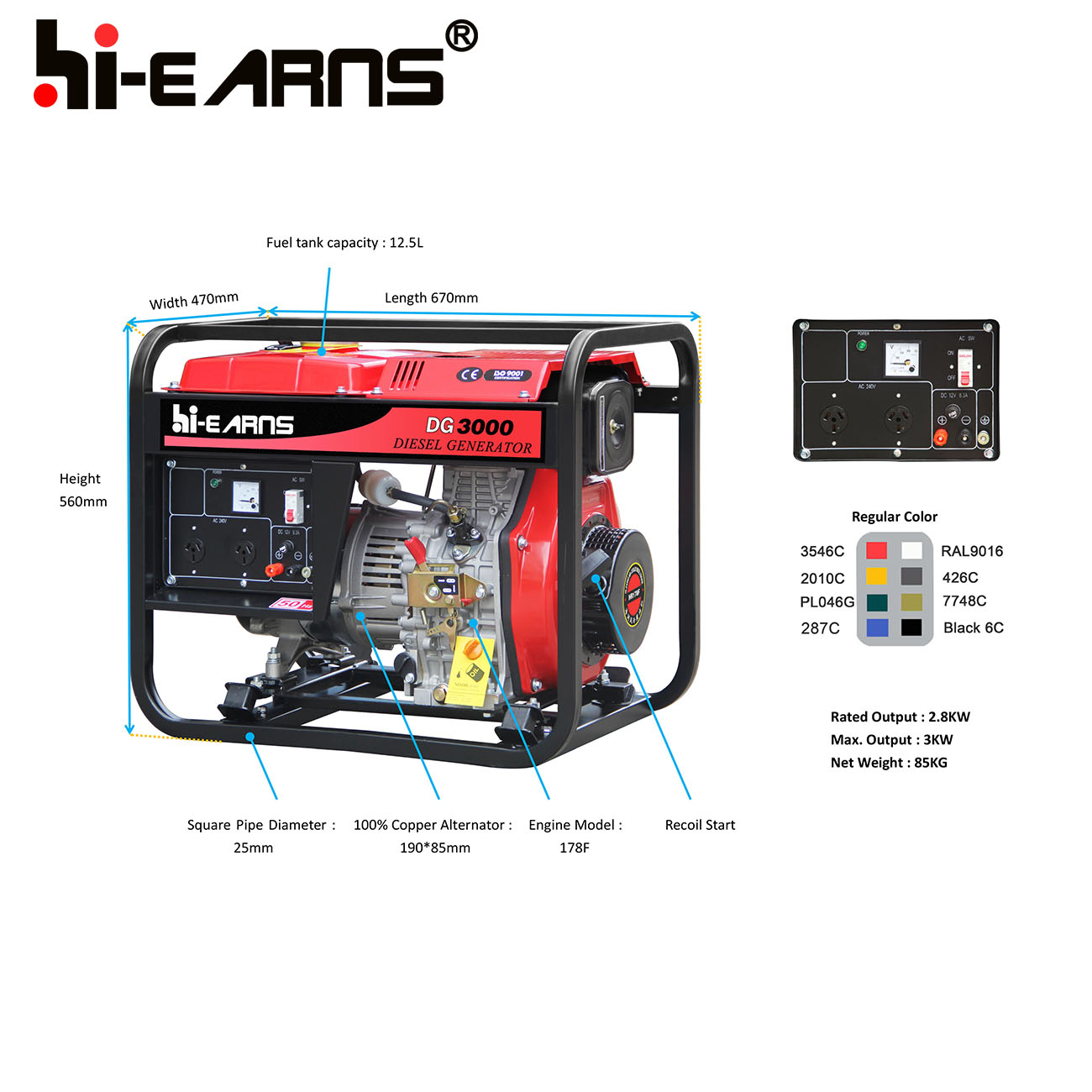

| Model | DG3000 | ||
| GENERATOR | Frequency (HZ) | 50 | |
| Max.output (KW) | 3 | ||
| Rated output (KW) | 2.8 | ||
| Rated AC voltage (V) | 240 | ||
| Power factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | Self-excited, 2-pole alternator | ||
| Starting system | Manual or electric | ||
| Noise level (Dba/7m) | 80-85 | ||
| Fuel tank capacity (L) | 12.5 | ||
| Continuous running time (hr) | 9.7 | ||
| ENGINE | Engine model | HR178F | |
| Engine type | Single-cylinder, vertical, 4-stroke, air-cooled diesel engine | ||
| Bore×Stroke × (mm) | 78×62 | ||
| Fuel consumption rate (g/kw.h) | ≤280 | ||
| Fuel | 0# or -10# light diesel oil 0#-10# | ||

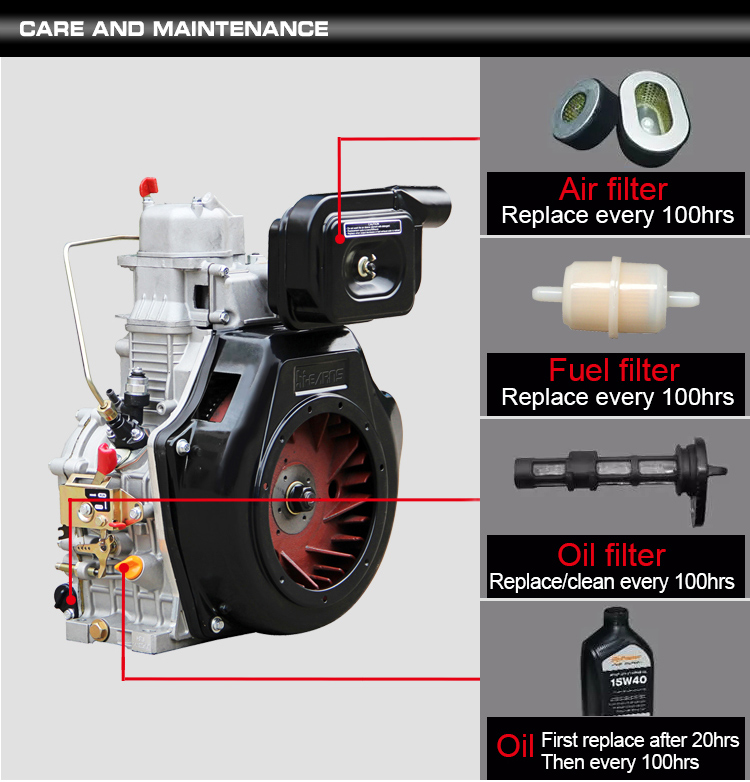

| Lubrication oil volume (L) | 1.1 | ||
| Combustion system | Direct Injection | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC output socket | 2 | ||
| AC circuit breaker | YES | ||
| Oil warning light | YES | ||
| Oil alert | YES | ||
| OPTIONAL FEATURES | DC circuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | OPTIONAL | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| DIMENSIONS | Packing dimention (LxWxH) (cm) | 70×49×59 | |
| Gross weight (kgs) | 73 (84) | ||
| 20FT loading pcs | 105 | ||
| 40HQ loading pcs | 296 | ||
