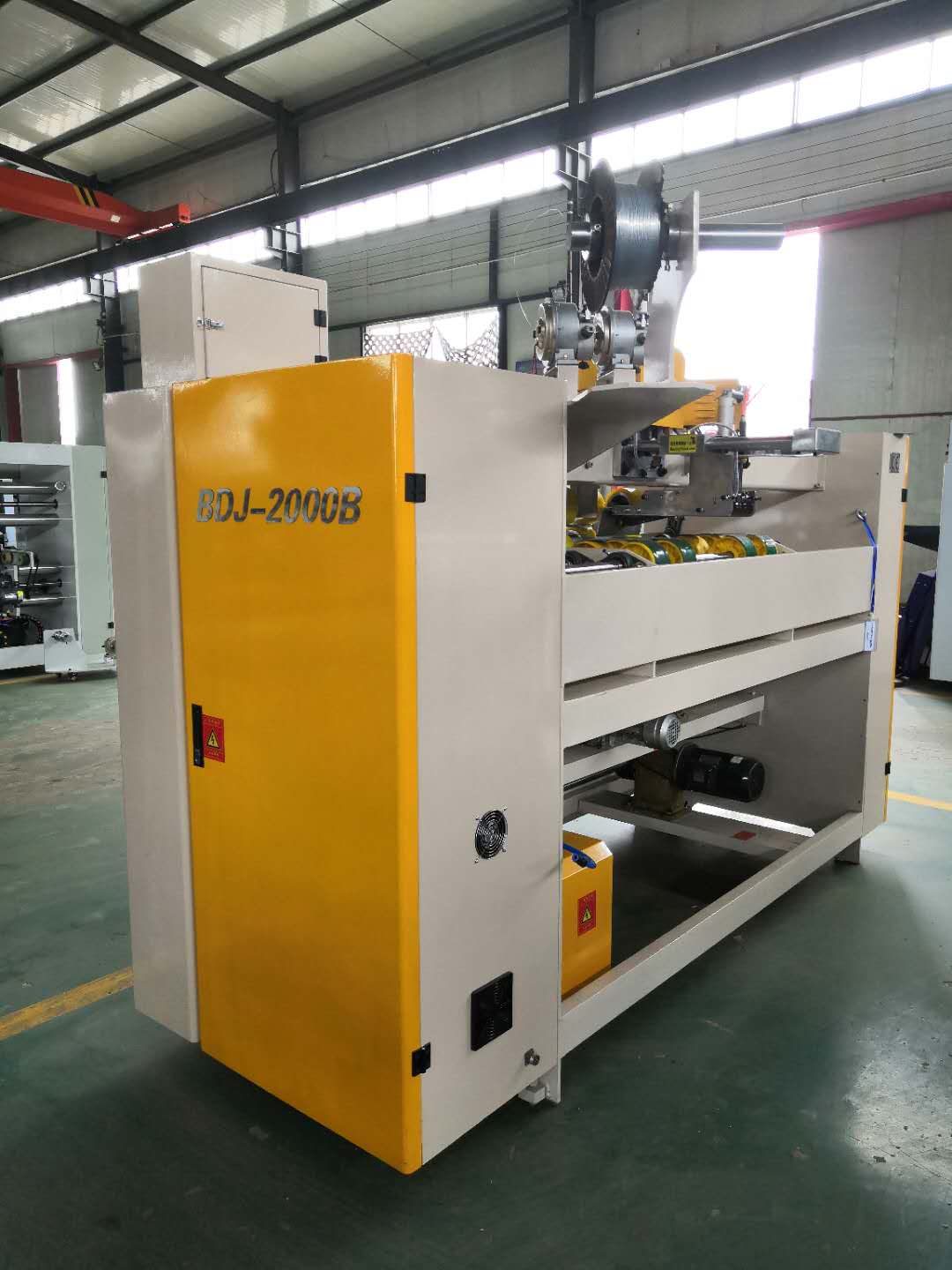

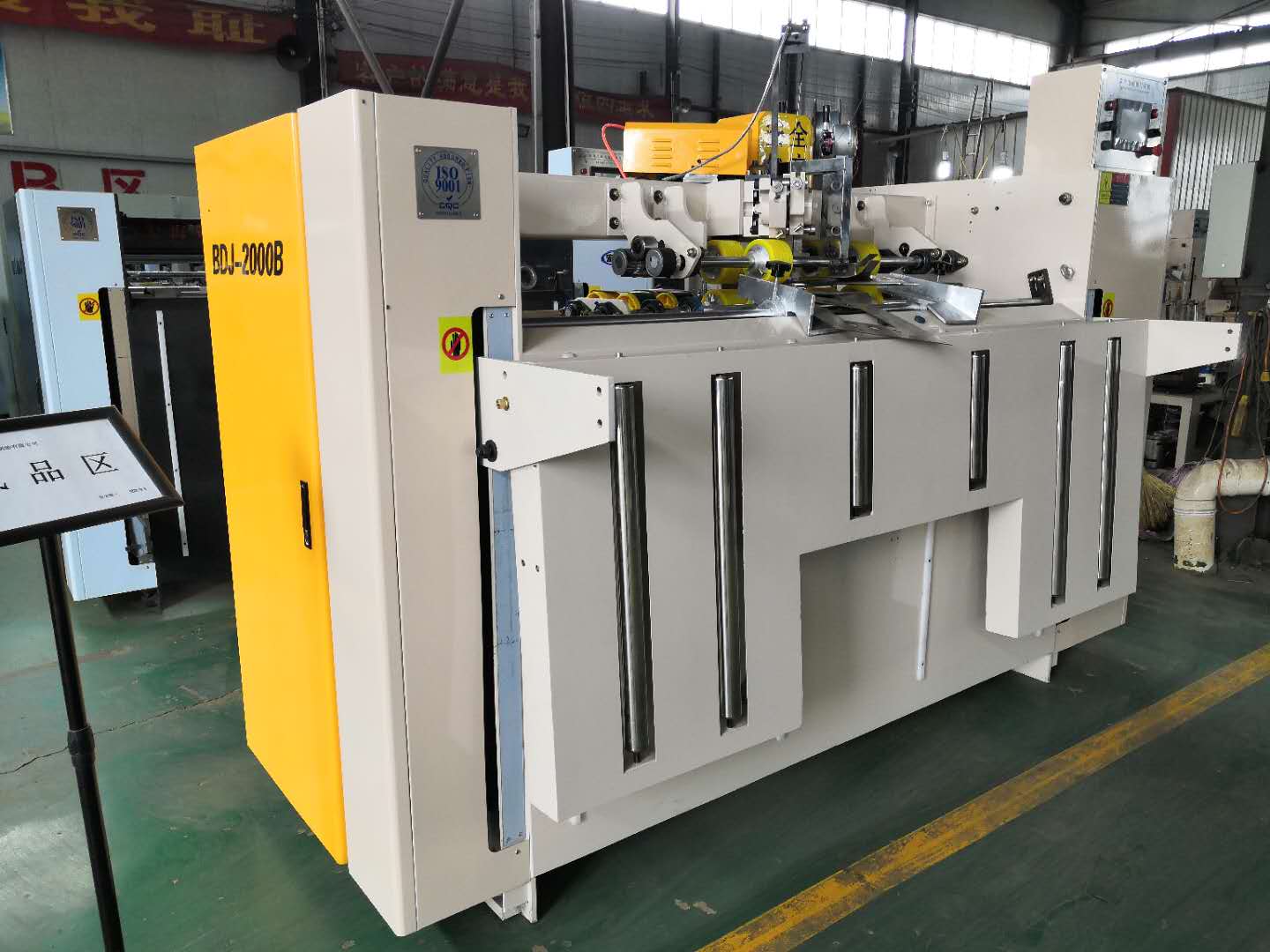

Semi-automatic Corrugated Box Carton Stitching Machine

1.France Schneider imported four servo drive, precision accuracy, reducing the mechanical transmission part, which can effectively reduce the failure rate of the machinery.
2.Weinview touchscreen operation parameters.
3.The whole control system adopts OMRON PLC control system.
4.After the electric baffle, using step motor drive, the size is accurate, the reansform size more convenient.
5.The photoelectric and proximity switches using the OMRON brand.
6.The bottom mold, wolfram steel blade used in Japan.
7.The entire set of nail head all adopt the special steel manufacturing, computer gongs precision machining.
8.It can stitch single nail, double nail and strong nails, can be suitable for different customer requirments of different kinds of nails.
9.The reansform carton size and adjusting nail carton from just one minute can be completerd, greatly saves time and is convenient to operate.
10.It can stitch a lid box & carton no cover (If have uncovered box need stitched,please note when ordering machinery)
11.The front end to send automatic counting paper, paper feeding platform is provided with the photoelectric induction device, automatic rising feeder.
12.The following section has the function of automatic counting, finished cartons can be set according to the number(1-99) sub stack sent to the conveying machinery termainal, convenient bunding.
13.The machine speed: 500 nails per minute.
14.The nails spacing:30-120mm sdjustable.
15.The working table lifting effective height: 900mm
16.The machine covers an area of size : host 2.8m*2.7m*2m
17.The machine weight: 1800kg
18.The whole order adjustment, can store 500 orders.

Main configuration:
