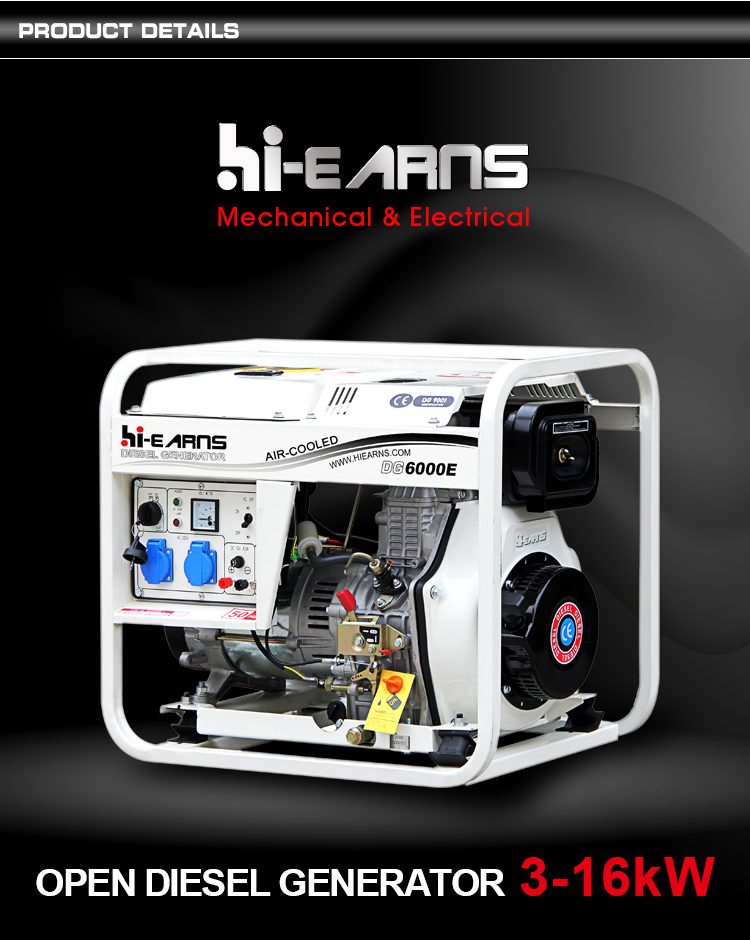

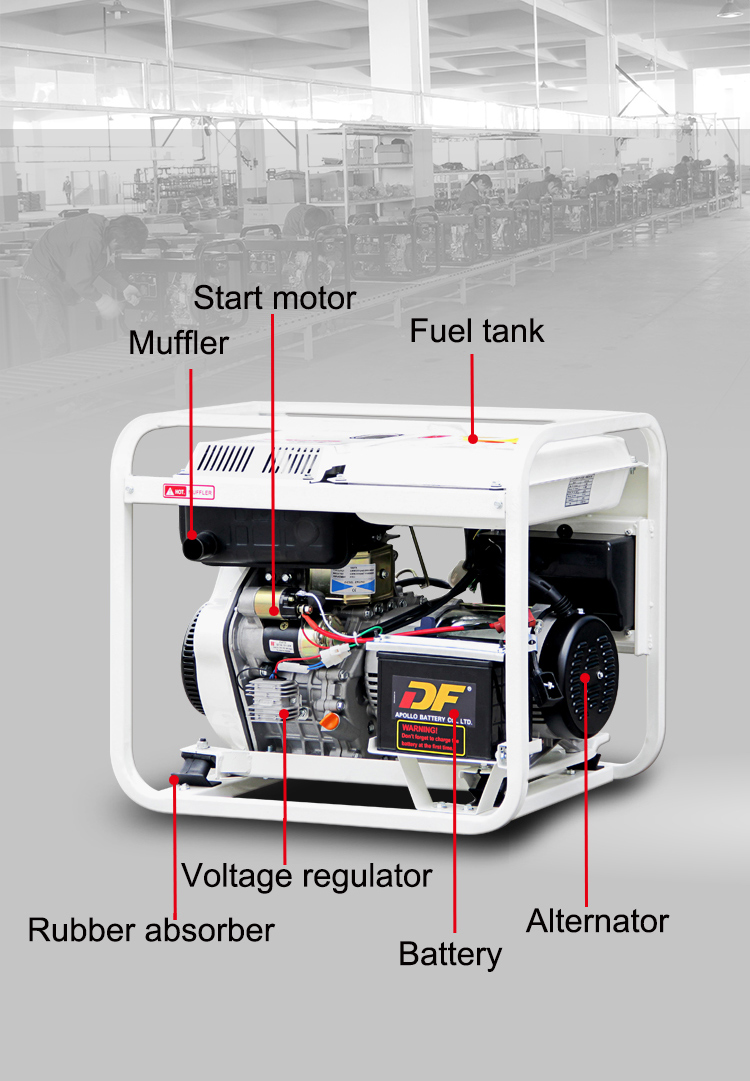

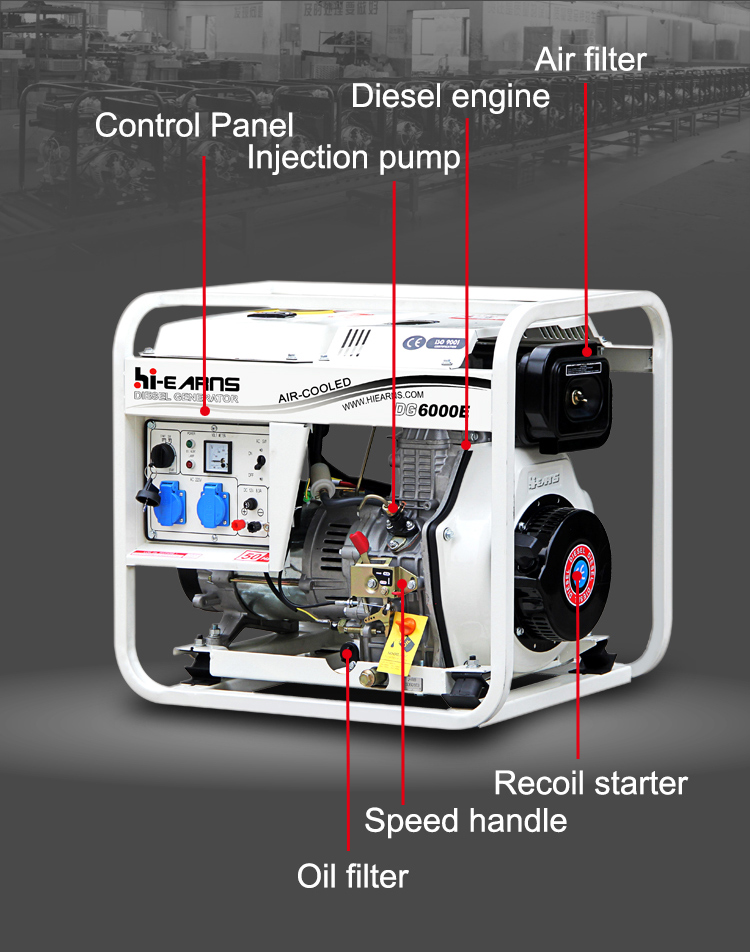

5kw Power Generatorair cooled diesel generator Genset
L/CT/TWestern Union

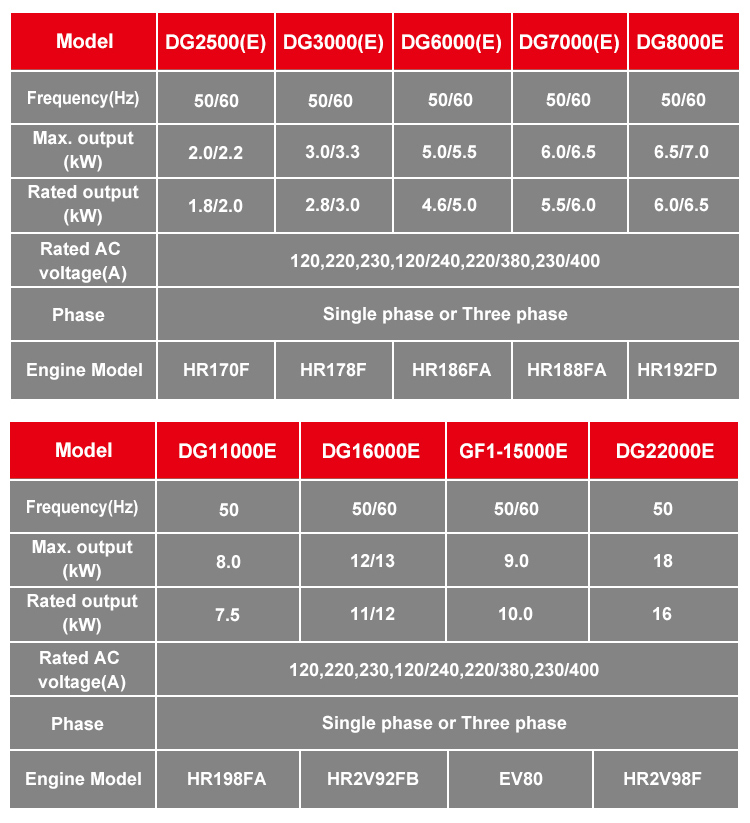

| Model | DG6000E3 | ||
| GENERATOR | Frequency (HZ) | 60 | |
| Max.output (KW) | 5.5 | ||
| Rated output (KW) | 5 | ||
| Rated AC voltage (V) | 220/380 | ||
| Power factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Three phase | ||
| Alternator type | Self-excited, 2-pole alternator | ||
| Starting system | Manual and electric | ||
| Noise level (Dba/7m) | 80-85 | ||
| Fuel tank capacity (L) | 12.5 | ||
| Continuous running time (hr) | 7.1 | ||
| ENGINE | Engine model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore×Stroke (mm) | 86×72 | ||
| Fuel consumption rate (g/kw.h) | ≤280 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication oil volume (L) | 1.65 | ||
| Combustion system | Direct Injection | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC output socket | 2 | ||
| AC circuit breaker | YES | ||
| Oil warning light | YES | ||
| Oil alert | YES | ||
| OPTIONAL FEATURES | DC circuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | YES | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| DIMENSIONS | Packing dimention (LxWxH) (cm) | 73×50×68 | |
| Gross weight (kgs) | 115 | ||
| 20FT loading pcs | 105 | ||
| 40HQ loading pcs | 217 | ||
